3-10 C 3: C
HAPTER ONFIGURING THE
E R
DGE OUTER

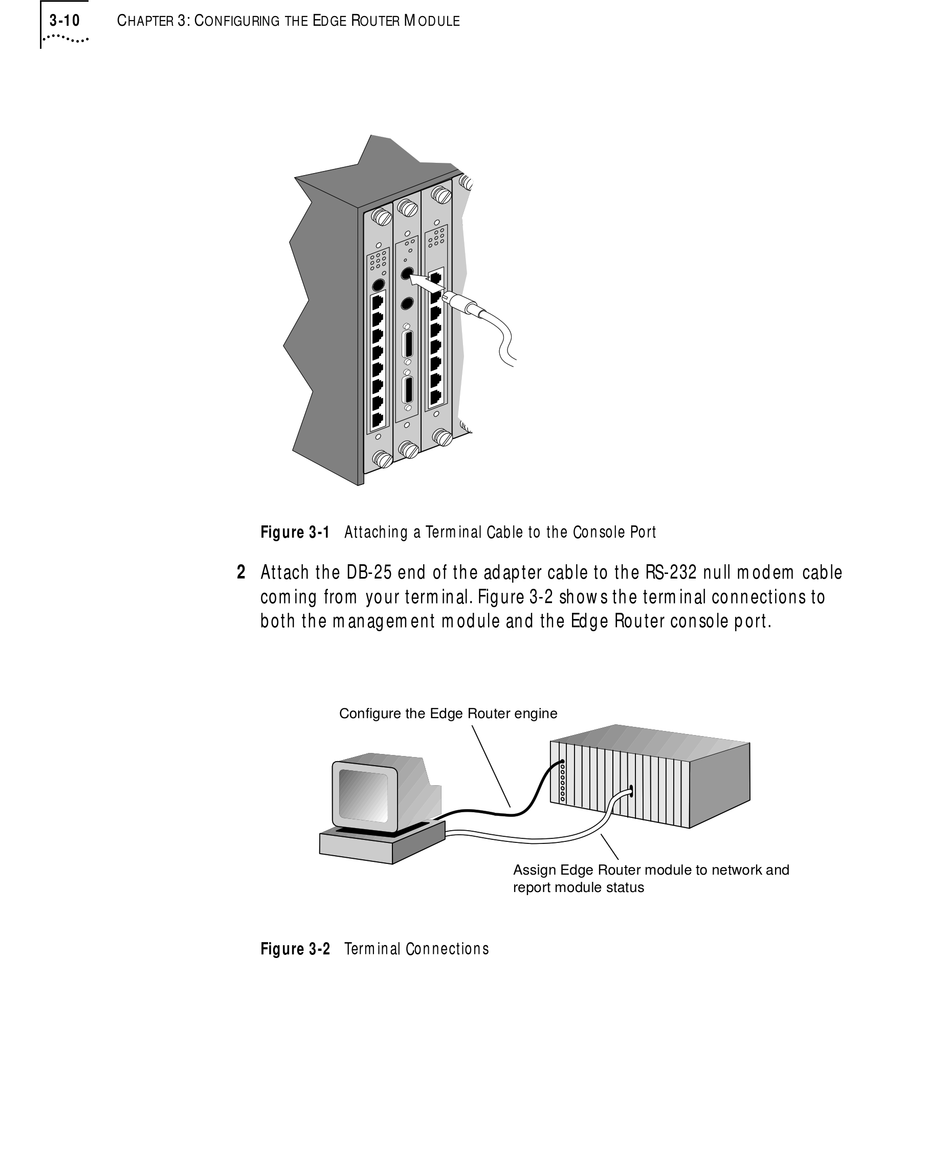

Figure 3-1 Attaching a Terminal Cable to the Console Port
2 Attach the DB-25 end of the adapter cable to the RS-232 null modem cable
coming from your terminal. Figure 3-2 shows the terminal connections to
both the management module and the Edge Router console port.
• Configure LAN Access module
Configure the Edge Router engine
Figure 3-2 Terminal Connections
M
ODULE
Assign Edge Router module to network and
report module status
• Configure module to network
• Report module status
