Installing the

ONcore Edge

Router Module

4 Using your fingers, tighten the two spring-loaded screws on the front of the

module faceplate (Figure 2-4). Do not overtighten.

Board guide

Screws

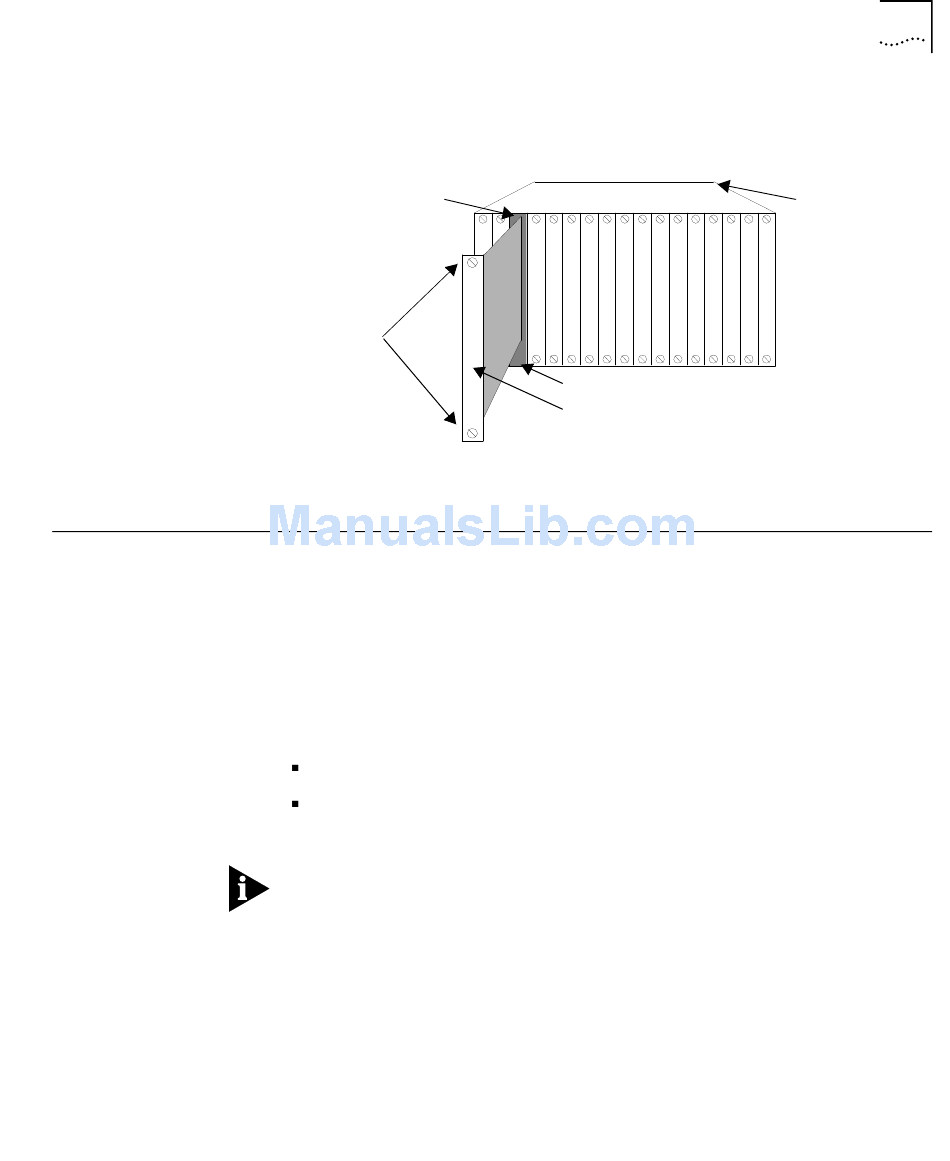

Figure 2-4 Installing the Edge Router Module in an ONline Hub

You do not need to power off the ONcore hub to install or remove the

Edge Router module. You can insert the module while the hub is operating

(this is called a hot swap).

To install the Edge Router module in an ONcore hub:

1 Use one of the following proper grounding techniques when you install the

Edge Router module:

Properly ground yourself prior to handling the module.

Attach a static wrist guard to yourself or touch a grounded static mat

prior to handling the module.

If you already have a management terminal connected to your ONcore hub,

you can verify the hub has enough power for the new Edge Router module

by entering the SHOW POWER BUDGET command. Refer to Appendix A for

details on power requirements.

Refer to the ONcore Distributed Management Module Commands Guide for

information on the SHOW POWER BUDGET command.

2 Locate an open slot in the ONcore hub. If necessary, remove a blank panel

to expose a slot.
