2-14
C
2: I
E
R
M
HAPTER
NSTALLING THE
DGE
OUTER
ODULE
3 Insert the module into the board guides at the top and bottom of the slot
and slide it into the hub by pressing firmly at a point slightly below the
center of the faceplate (Figure 2-5).

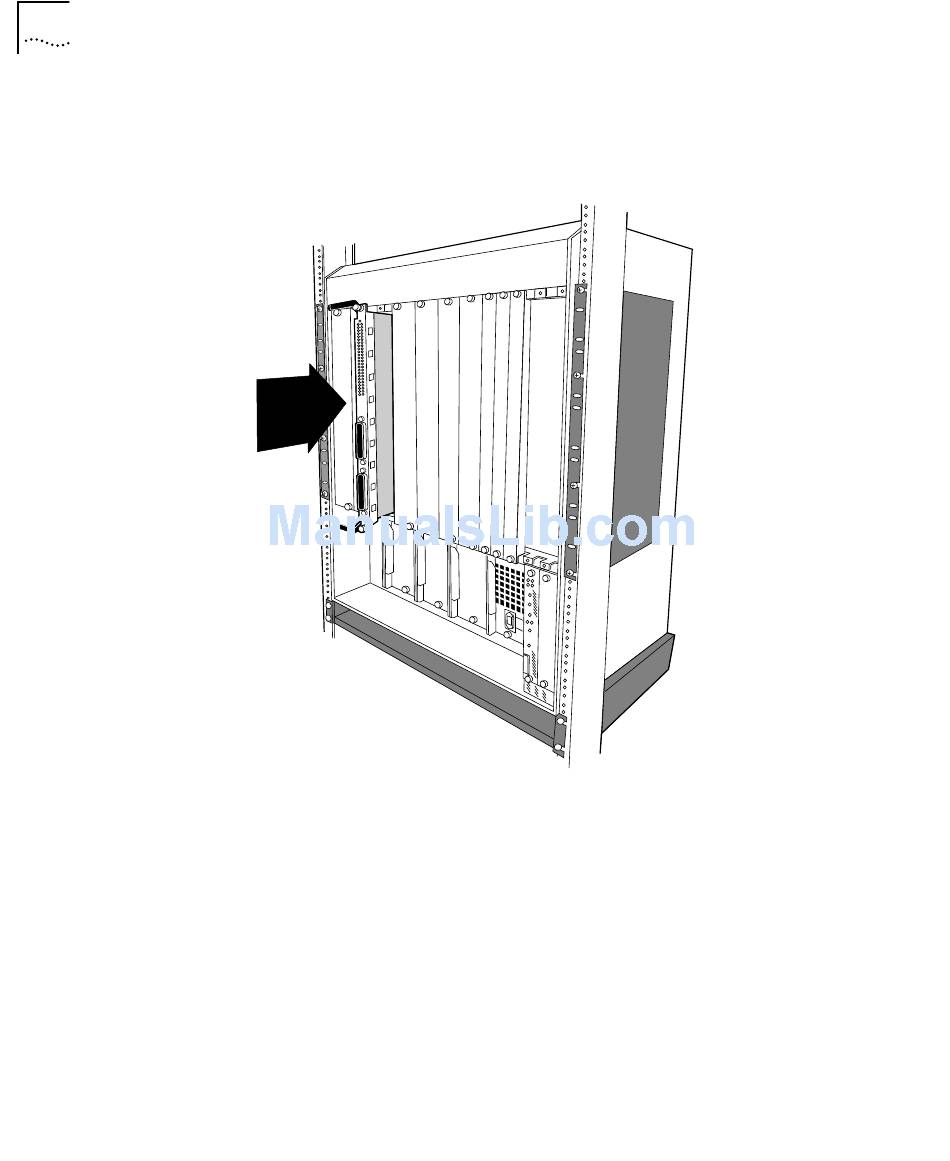

Figure 2-5 Installing the Edge Router Module in an ONcore Hub
