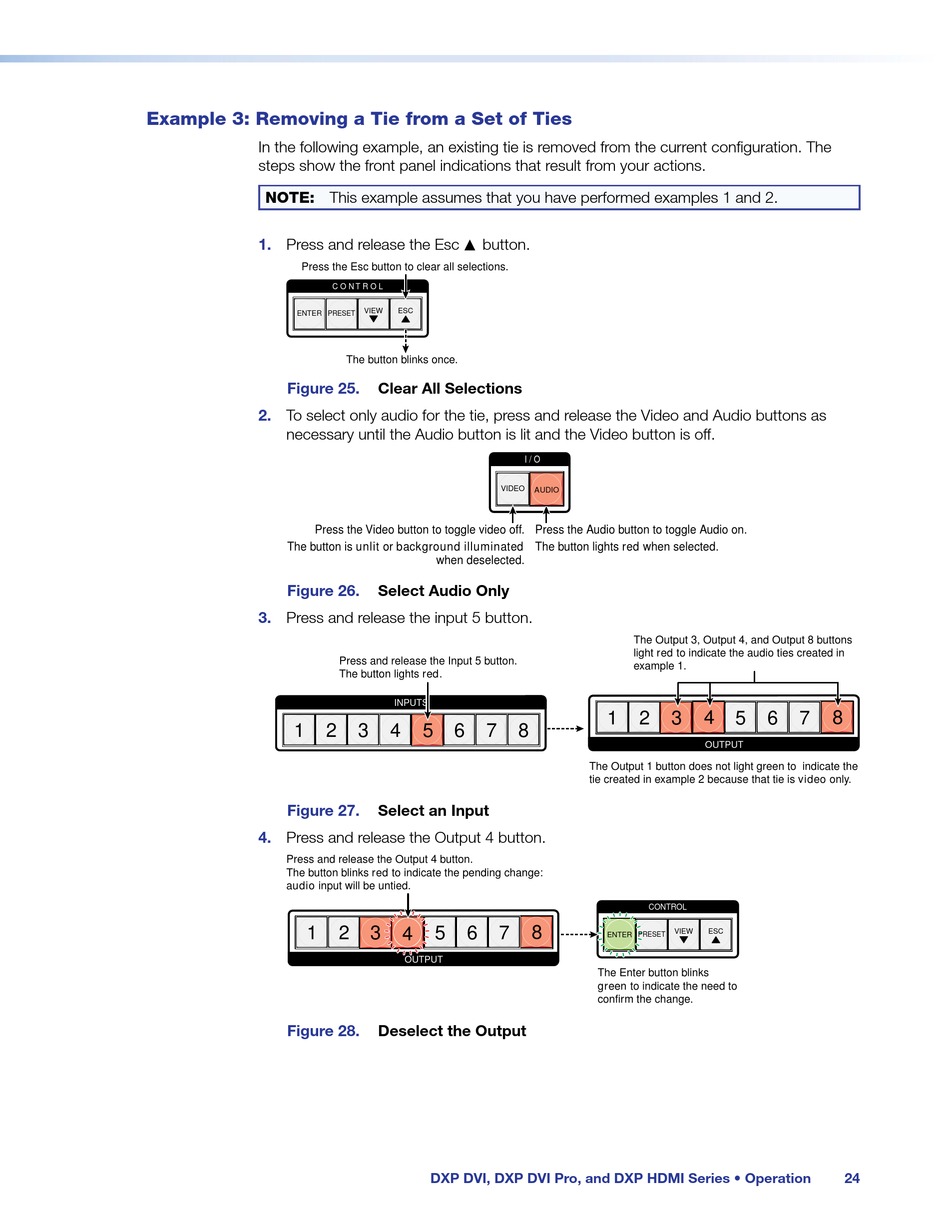

Example 3: Removing a Tie from a Set of Ties

In the following example, an existing tie is removed from the current configuration. The
steps show the front panel indications that result from your actions.
NOTE: This example assumes that you have performed examples 1 and 2.
1. Press and release the Esc
Press the Esc button to clear all selections.
ENTER
Figure 25.
2. To select only audio for the tie, press and release the Video and Audio buttons as
necessary until the Audio button is lit and the Video button is off.
Press the Video button to toggle video off.
The button is unlit or background illuminated
Figure 26.
3. Press and release the input 5 button.
1 2
Figure 27.
4. Press and release the Output 4 button.
Press and release the Output 4 button.
The button blinks red to indicate the pending change:
audio input will be untied.
1
Figure 28.
>
button.
C O N T R O L
VIEW ESC
PRESET
The button blinks once.
Clear All Selections
VIDEO
when deselected.
Select Audio Only
Press and release the Input 5 button.
The button lights red.
INPUTS
3 4 5 6 7
Select an Input
2 3 5 6 7
4
OUTPUT
Deselect the Output
DXP DVI, DXP DVI Pro, and DXP HDMI Series • Operation
I / O
AUDIO
Press the Audio button to toggle Audio on.
The button lights red when selected.
The Output 3, Output 4, and Output 8 buttons
light red to indicate the audio ties created in
example 1.
1 2
3
8
The Output 1 button does not light green to indicate the
tie created in example 2 because that tie is video only.
CONTROL
8
VIEW
ENTER PRESET
The Enter button blinks
green to indicate the need to
confirm the change.
4 5 6 7 8
OUTPUT
ESC
