2. Choose the communication port through which the DXP is connected to the
computer:
If you selected a Comm port, check the baud rate displayed in the Comm Port
•
Selection window. To change the baud rate, click the
baud rate pop-up list. (After you click it, this button changes to
on the desired baud rate (available rates are 9600, 19200, 38400, and 115200;
the default is 9600), then click

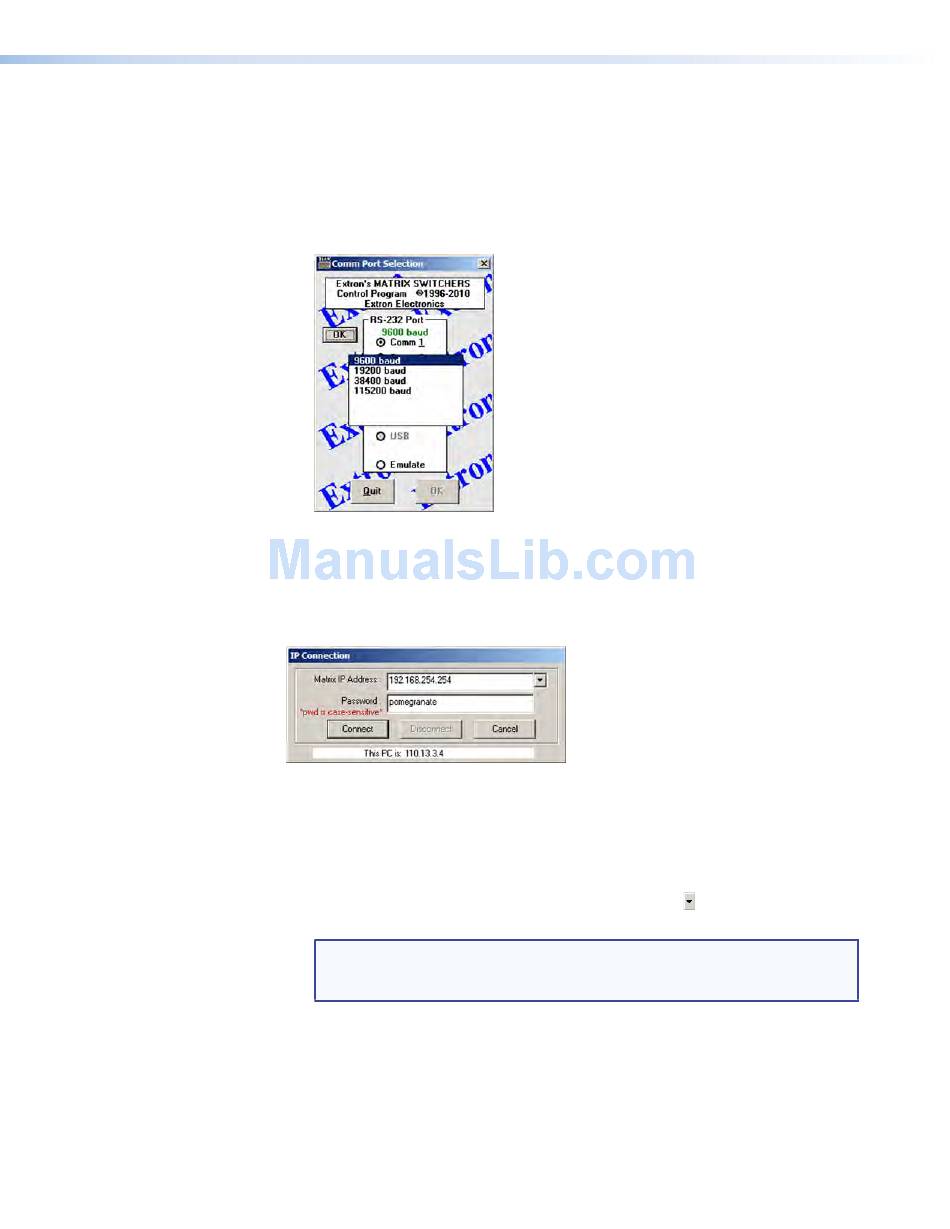

Figure 72. Baud Rate Pop-up List
If you selected
IP [LAN]
•
If you selected
Emulate
•
page 99.
3. If you selected
IP [LAN]
Figure 73. Address and Password Entry for IP Connection
a. Check the
Extron IP Address
displays the last IP address entered.
If the IP address is correct: Proceed to step 3b.
If the address is not correct: Either click in the
enter the IP address or click on the scroll down button ( ) and select from among
the recently used addresses.
NOTE: If your local system administrators have not changed the value, the
factory-specified default address,
value for this field.
b. If the DXP is password protected, click in the
appropriate administrator or user password.
DXP DVI, DXP DVI Pro, and DXP HDMI Series • Matrix Software
and proceed to step 4.
OK
, click and proceed to step 3.
OK
, click and see "Using Emulation
OK
in step 2, the IP Connection window opens.
field in the IP Connection window. The field
Extron IP Address
192.168.254.254
Password
button to display the
Baud
.) Double-click
OK
Mode" on
field and
, is the correct
field and enter the
