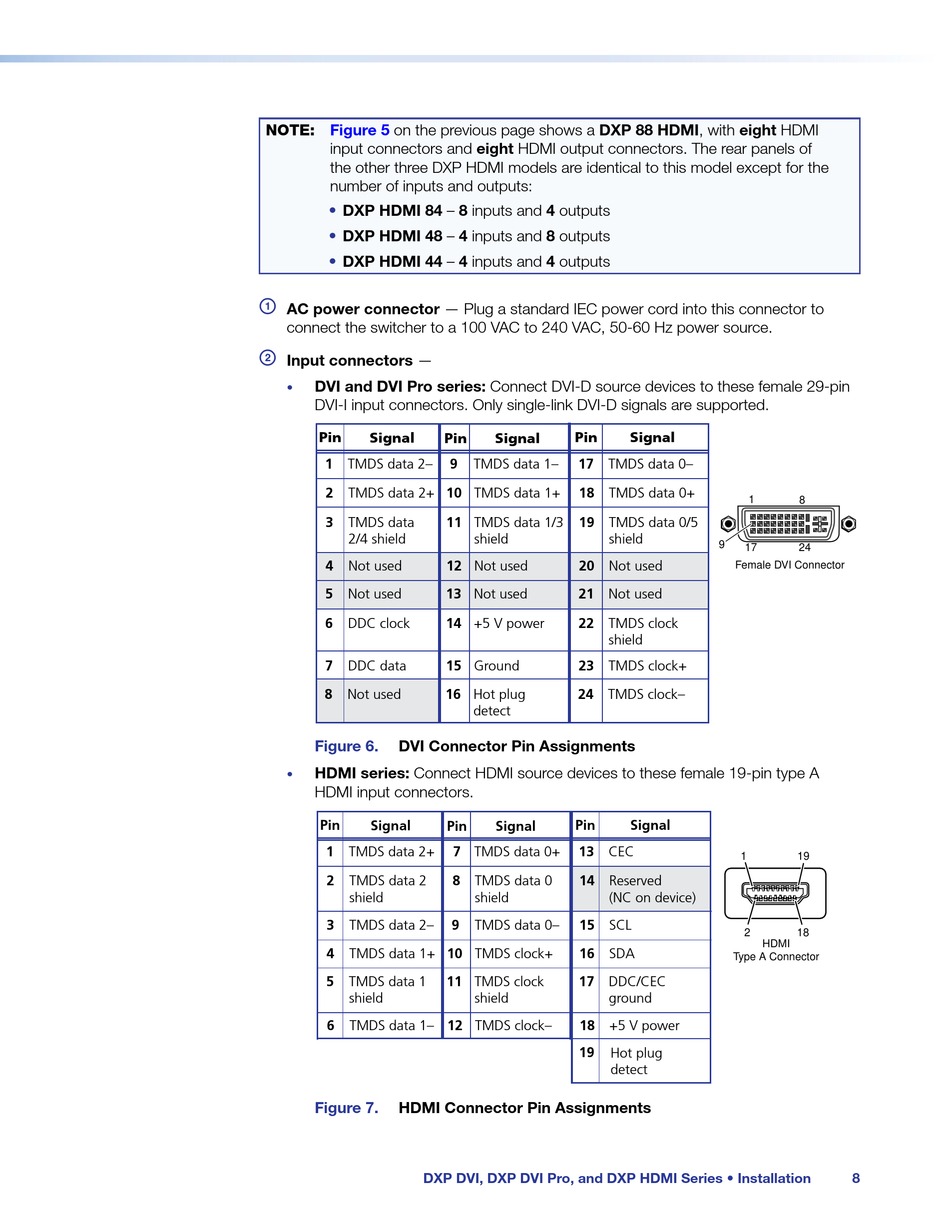

NOTE: Figure 5 on the previous page shows a DXP 88 HDMI, with eight HDMI
input connectors and eight HDMI output connectors. The rear panels of
the other three DXP HDMI models are identical to this model except for the
number of inputs and outputs:
• DXP HDMI 84 – 8 inputs and 4 outputs
• DXP HDMI 48 – 4 inputs and 8 outputs
• DXP HDMI 44 – 4 inputs and 4 outputs
a
AC power connector — Plug a standard IEC power cord into this connector to
connect the switcher to a 100 VAC to 240 VAC, 50-60 Hz power source.
b
Input connectors —
DVI and DVI Pro series: Connect DVI-D source devices to these female 29-pin
•
DVI-I input connectors. Only single-link DVI-D signals are supported.
Pin
Signal
1 TMDS data 2–
2 TMDS data 2+ 10 TMDS data 1+
3 TMDS data
2/4 shield
4 Not used
5 Not used
6 DDC clock
7 DDC data
8 Not used
Figure 6. DVI Connector Pin Assignments
HDMI series: Connect HDMI source devices to these female 19-pin type A
•
HDMI input connectors.
Pin Signal
1 TMDS data 2+
2 TMDS data 2
shield
3
TMDS data 2–
4 TMDS data 1+ 10 TMDS clock+
5 TMDS data 1
shield
6 TMDS data 1– 12 TMDS clock–
Figure 7. HDMI Connector Pin Assignments
DXP DVI, DXP DVI Pro, and DXP HDMI Series • Installation
Pin
Pin Signal
9 TMDS data 1– 17 TMDS data 0–
18 TMDS data 0+
11 TMDS data 1/3 19 TMDS data 0/5
shield shield
12 Not used 20 Not used
13 Not used 21 Not used
14 +5 V power 22 TMDS clock
shield
15 Ground 23 TMDS clock+
16 Hot plug 24 TMDS clock–
detect
Pin Signal Pin
7 TMDS data 0+ 13 CEC
8 TMDS data 0 14 Reserved
shield (NC on device)
9 15 SCL
TMDS data 0–
16 SDA
11 TMDS clock 17 DDC/CEC
shield ground
18 +5 V power
19 Hot plug
detect
Signal
1
8
9
17 24
Female DVI Connector
Signal
1 19
2 18
HDMI
Type A Connector
8
