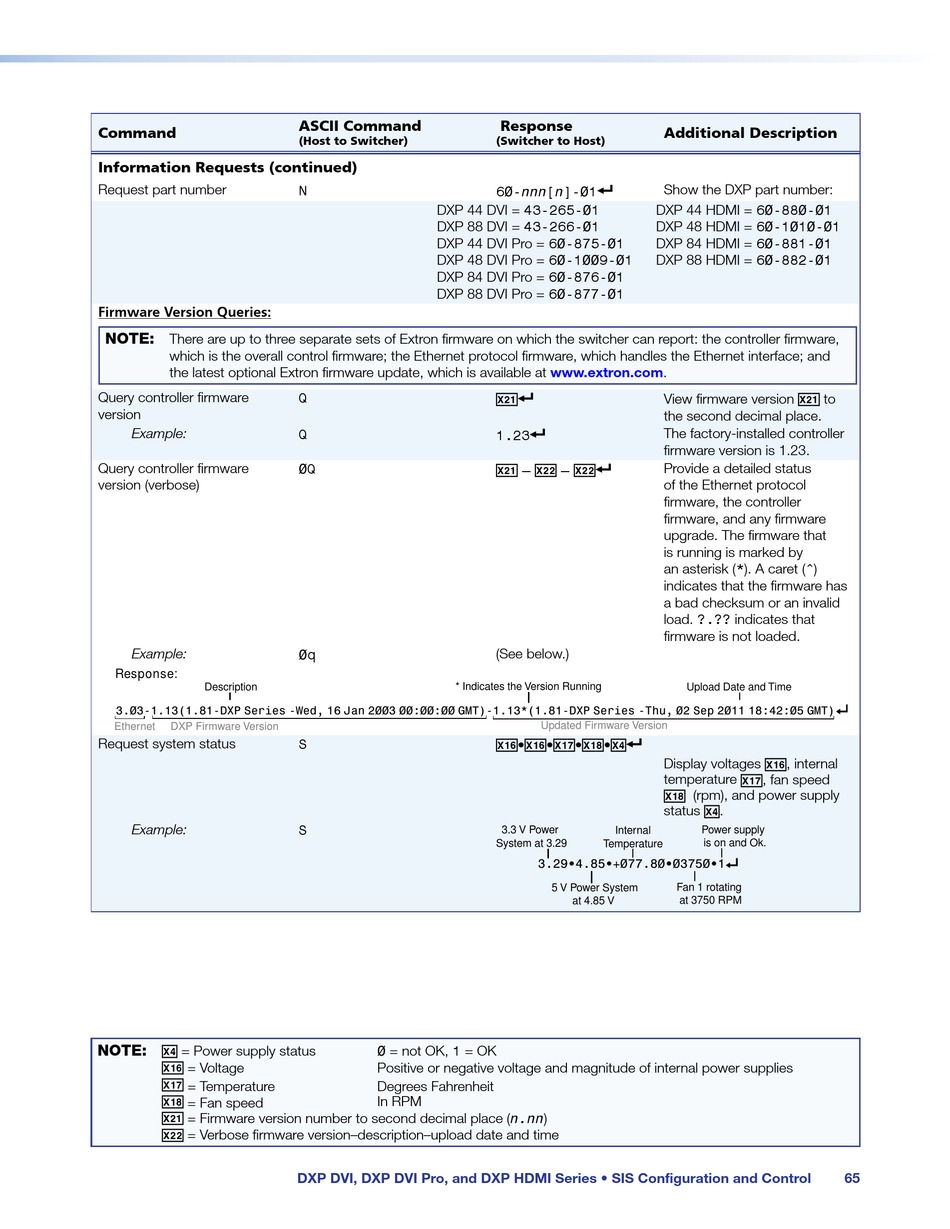

Command
Information Requests (continued)
Request part number
Firmware Version Queries:
NOTE:
There are up to three separate sets of Extron firmware on which the switcher can report: the controller firmware,
which is the overall control firmware; the Ethernet protocol firmware, which handles the Ethernet interface; and
the latest optional Extron firmware update, which is available at www.extron.com.
Query controller firmware
version
Example:
Query controller firmware
version (verbose)
Example:
Response:
Description
3.03-1.13(1.81-DXP Series -Wed, 16 Jan 2003 00:00:00 GMT)-1.13*(1.81-DXP Series -Thu, 02 Sep 2011 18:42:05 GMT)
Ethernet DXP Firmware Version
Protocol
Request system status
Firmware
Example:
NOTE: X$
= Power supply status
X1^
= Voltage
X1&
= Temperature
X1*
= Fan speed
X2!
= Firmware version number to second decimal place (n.nn)
X2@
= Verbose firmware version–description–upload date and time
ASCII Command
(Host to Switcher)
N
DXP 44 DVI = 43-265-01
DXP 88 DVI = 43-266-01
DXP 44 DVI Pro = 60-875-01
DXP 48 DVI Pro = 60-1009-01
DXP 84 DVI Pro = 60-876-01
DXP 88 DVI Pro = 60-877-01
Q
Q
0Q
0q
* Indicates the Version Running
S
S
0 = not OK, 1 = OK
Positive or negative voltage and magnitude of internal power supplies
Degrees Fahrenheit
In RPM
DXP DVI, DXP DVI Pro, and DXP HDMI Series • SIS Configuration and Control
Response
Additional Description
(Switcher to Host)
]
Show the DXP part number:
60-nnn[n]-01
DXP 44 HDMI = 60-880-01
DXP 48 HDMI = 60-1010-01
DXP 84 HDMI = 60-881-01
DXP 88 HDMI = 60-882-01
X2!]
View firmware version
the second decimal place.
] The factory-installed controller
1.23
firmware version is 1.23.
X2! X2@ X2@] Provide a detailed status
– –
of the Ethernet protocol
firmware, the controller
firmware, and any firmware
upgrade. The firmware that
is running is marked by
an asterisk (*). A caret (^)
indicates that the firmware has
a bad checksum or an invalid
load. ?.?? indicates that
firmware is not loaded.
(See below.)
Updated Firmware Version
X1^ X1^ X1& X1* X$]
• • • •
Display voltages
temperature
X1*
status
3.3 V Power
Internal
System at 3.29
Temperature
3.29•4.85•+077.80•03750•1
5 V Power System
at 4.85 V
X2!
to
Upload Date and Time
X1^
, internal
X1&
, fan speed
(rpm), and power supply
X$
.
Power supply
is on and Ok.
Fan 1 rotating
at 3750 RPM
