• — Allows you to replace the firmware that is coded on the switcher
Update Firmware
control board (see "Updating the
• — Allows you to set options for the IP connection (see
IP Options
page 79).
• — Displays a list of HTML files installed on the switcher
HTML File Manager
and allows you to upload custom files to the switcher from a connected PC (see
"Uploading HTML Files" on page 87).
• — Opens the System Status window, which provides an overall
Hardware status
view of the status of the matrix switcher, including the power supply status and
the individual voltages, the internal temperature, the Remote RS232/RS422 port
configuration, the number of IP connections, and the installed and updated firmware
status.

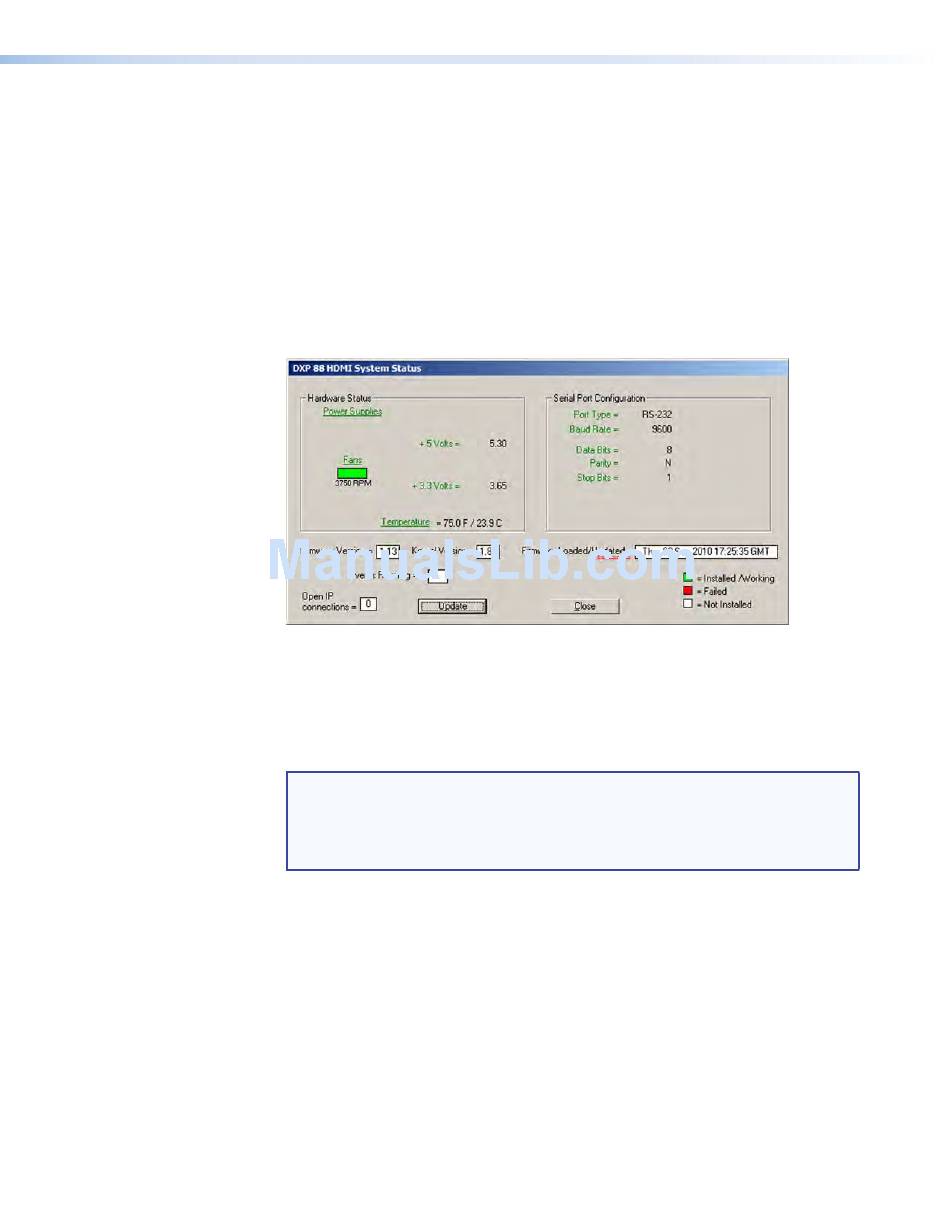

Figure 90. System Status Window
The text color on this screen indicates the following:
Green — The component is operating properly.
•
Red — The component has failed.
•
White — The components are not installed.
•
NOTE: The DXP switchers are not available in custom configurations. Each
model has all available monitored components, such as power supplies,
installed. If you see the white "not installed" indication, the "not installed"
component may have become disconnected during shipment or rough
handling.
DXP DVI, DXP DVI Pro, and DXP HDMI Series • Matrix Software
