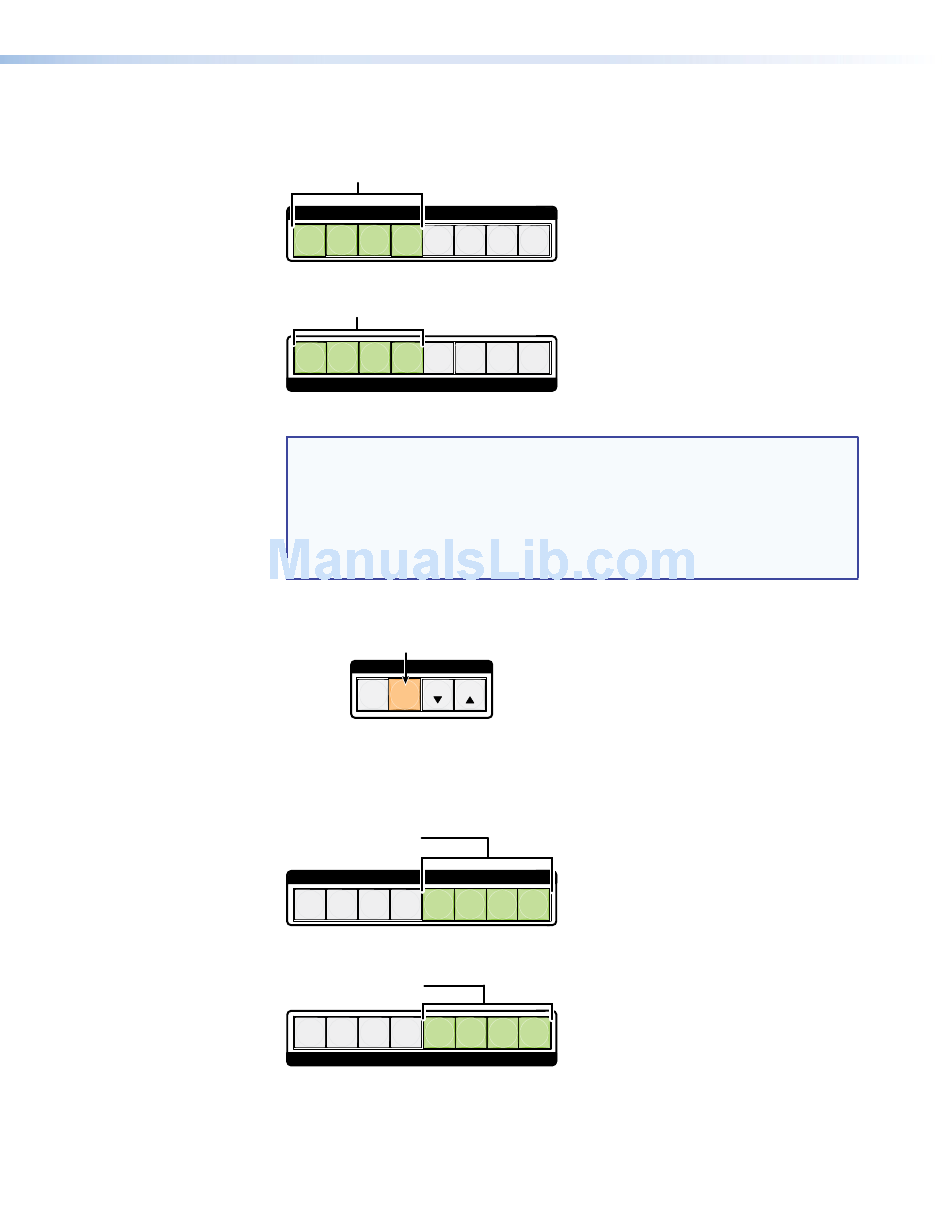

4. Press and release the desired input and output buttons for the group you are creating.
(In the example below, inputs and outputs 1 through 4 will comprise group 1.)
Press and release the Input 1 through Input 4 buttons.
The selected buttons light.
INPUTS
1 2 3 4 5
Press and release the Output 1 through Output 4 buttons.
The selected buttons light.
1 2 3 4 5
OUTPUTS
Figure 50. Assign Inputs and Outputs to Group 1
NOTES: • I/O groups are protected when front panel lock mode 2 is selected.
You can view the groups in lock mode 2, but you cannot change them
from the front panel (see
(Executive Modes)
• If front panel lock mode 2 is selected and you try to perform this step,
the button presses are ignored and the Enter, Video, and Audio buttons
blink.
5. Press and release the Preset button to select group 2.
Press and release the Preset button to select group 2.
The button lights to indicate the selection.
C O N T R O L
VIEW
ENTER PRESET
Group # 1 2 3
Figure 51. Select I/O Group 2
6. Press and release the desired input and output buttons for group 2. (In the example
below, inputs and outputs 5 through 8 will comprise group 2.)
Press and release the Input 5 through Input 8 buttons.
The selected buttons light.
INPUTS
5
1 2 3 4
Press and release the Output 5 through Output 8 buttons.
The selected buttons light.
1 2 3 4 5
OUTPUTS
Figure 52. Assign Inputs and Outputs to Group 2
DXP DVI, DXP DVI Pro, and DXP HDMI Series • Operation
6 7 8
6 7 8
"Locking and Unlocking the Front Panel
on page 39).
ESC
4
6 7 8
6 7 8
