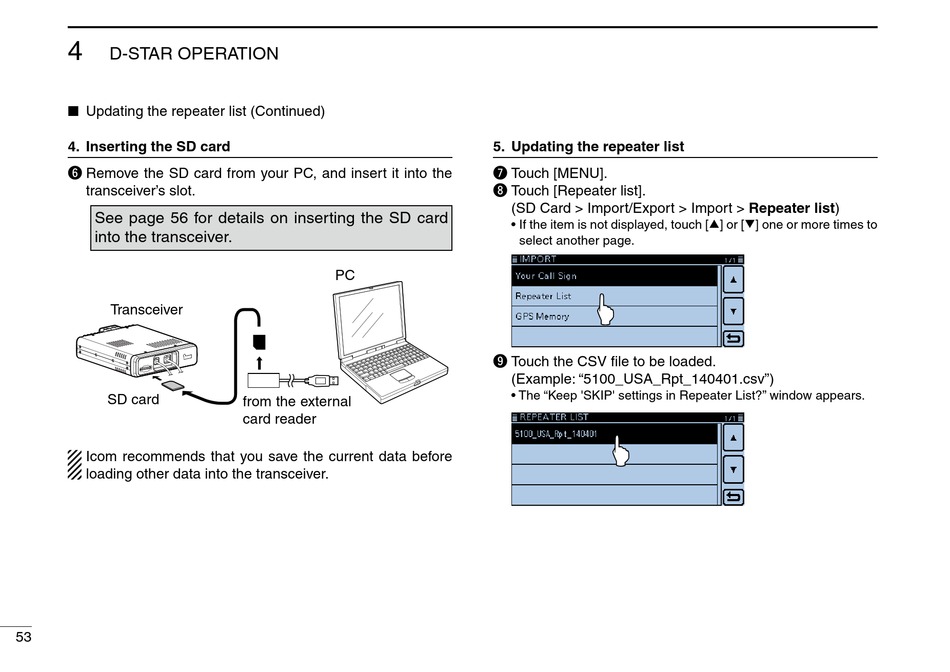

Icom ID-5100A Basic Manual page 66

4
D-STAR OPERATION
Updating the repeater list (Continued)
■
4. Inserting the SD card
y Remove the SD card from your PC, and insert it into the
transceiver's slot.
See page 56 for details on inserting the SD card
into the transceiver.
Transceiver
SD card
Icom recommends that you save the current data before
loading other data into the transceiver.
53
PC
from the external
card reader
5. Updating the repeater list
u Touch [MENU].
i Touch [Repeater list].
(SD Card > Import/Export > Import > Repeater list)
• If the item is not displayed, touch [∫] or [√] one or more times to
select another page.
o Touch the CSV file to be loaded.
(Example: "5100_USA_Rpt_140401.csv")
• The "Keep 'SKIP' settings in Repeater List?" window appears.
