o DC POWER SOCKET [DC 13.8V]
Connect 13.8 V DC power source through the supplied DC
power cable.

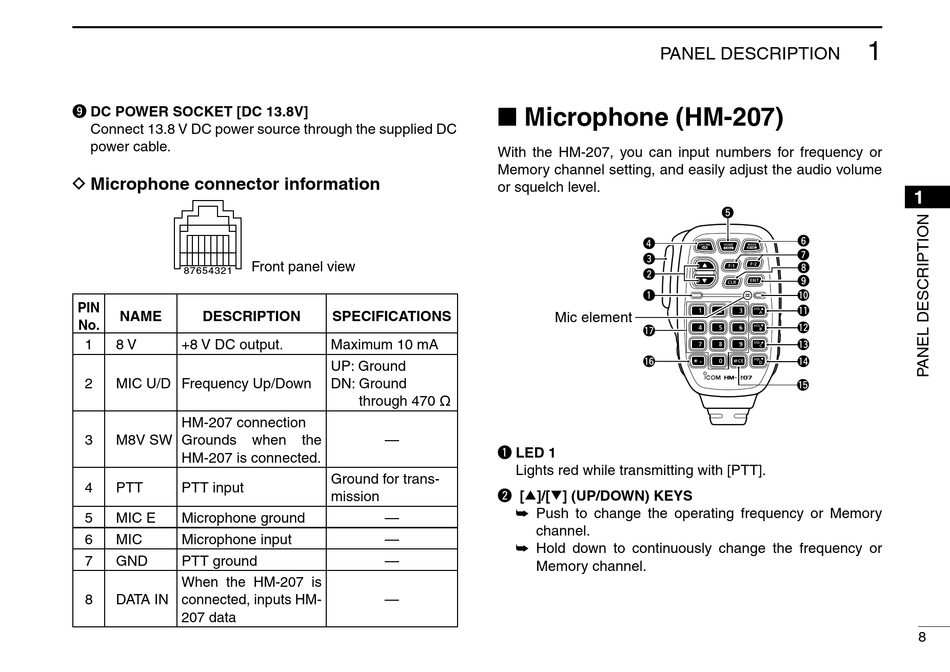

D Microphone connector information
Front panel view
8 7 6 5 4 3 2 1
PIN
NAME DESCRIPTION
No.
1 8 V +8 V DC output.
2 MIC U/D Frequency Up/Down
HM-207 connection
3 M8V SW Grounds
HM-207 is connected.
4 PTT PTT input
5 MIC E Microphone ground
6 MIC Microphone input
7 GND PTT ground
When the HM-207 is
8 DATA IN connected, inputs HM-
207 data
SPECIFICATIONS
Maximum 10 mA
UP: Ground
DN: Ground
through 470 ˘
when the —
Ground for trans-
mission
—
—
—
—
PANEL DESCRIPTION

■ Microphone (HM-207)

With the HM-207, you can input numbers for frequency or
Memory channel setting, and easily adjust the audio volume
or squelch level.
r
e
w
q
Mic element
!7
!6
q LED 1
Lights red while transmitting with [PTT].
w [∫]/[√] (UP/DOWN) KEYS
Push to change the operating frequency or Memory
➥
channel.
Hold down to continuously change the frequency or
➥
Memory channel.
1
t
y
u
i
o
!0
!1
!2
!3
!4
!5
1
8
