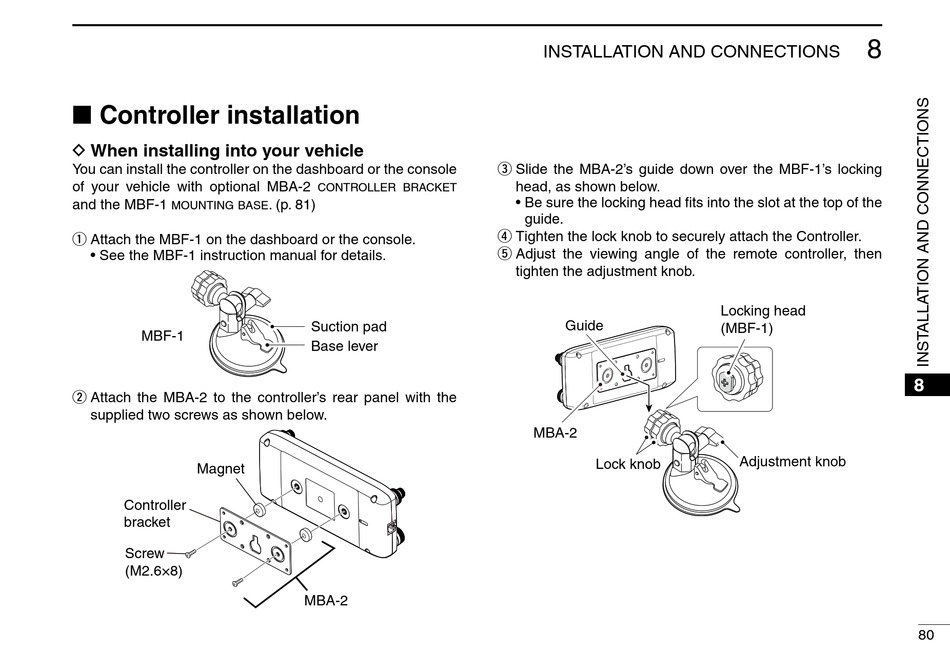

■ Controller installation

D When installing into your vehicle
You can install the controller on the dashboard or the console
of your vehicle with optional MBA-2
and the MBF-1
mounting base
Attach the MBF-1 on the dashboard or the console.
q
• See the MBF-1 instruction manual for details.
MBF-1
Attach the MBA-2 to the controller
w
supplied two screws as shown below.
Magnet
Controller
bracket
Screw
(M2.6×8)
controller bracket
. (p. 81)
Suction pad
Base lever
's rear panel with the
MBA-2
INSTALLATION AND CONNECTIONS
Slide the MBA-2 's guide down over the MBF-1's locking
e
head, as shown below.
• Be sure the locking head fits into the slot at the top of the
guide.
Tighten the lock knob to securely attach the Controller.
r
Adjust the viewing angle of the remote controller, then
t
tighten the adjustment knob.
Guide
MBA-2
Lock knob
8
Locking head
(MBF-1)
Adjustment knob
8
80
