INSTALLATION AND CONNECTIONS
Controller installation (Continued)
■

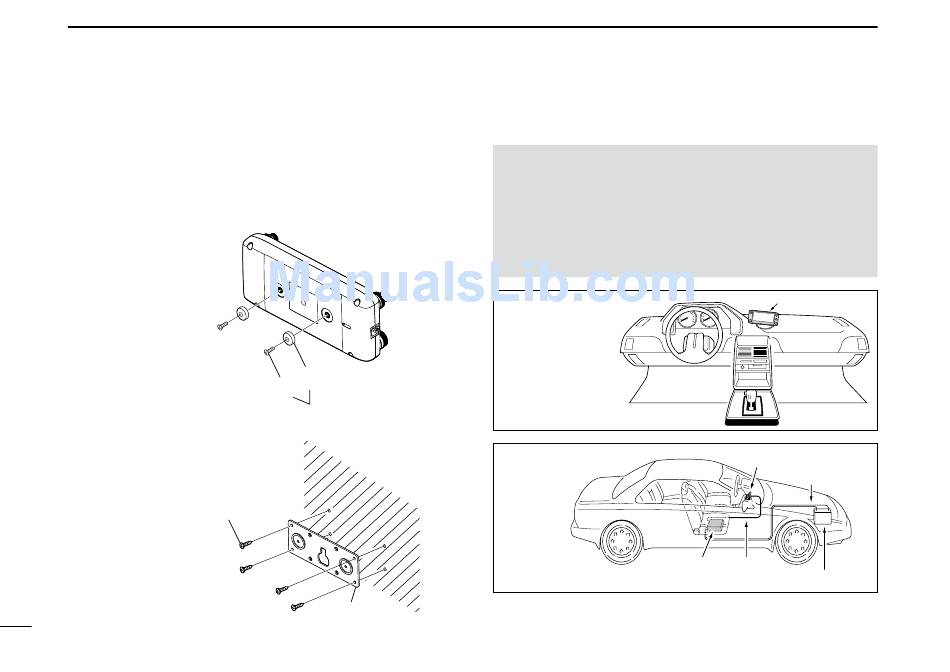

D When installing to a flat surface
You can install the controller on a flat surface with the optional
MBA-2
controller bracket
When attaching the bracket onto a wall, use a self-tapping
screw* (3 mm(d)).
*Purchase separately
Attach the magnet to the
Controller bracket
When attaching the bracket
onto a wall
Screw (3 mm(d))
Purchase separately
81
.
Magnet
Screw
Supplied with the MBA-2
MBA-2

■ Installing in a vehicle

CAUTION: NEVER place the main unit or remote controller
where normal operation of the vehicle may be hindered or
where it could cause bodily injury.
CAUTION: NEVER place the main unit or remote controller
where air bag deployment may be obstructed.
DO NOT place the transceiver or remote controller where
hot or cold air blows directly onto it.
• Remote controller
installation
• Main unit
installation
Controller
Controller
DC power cable
Controller
Main
Battery (12V)
unit cable
