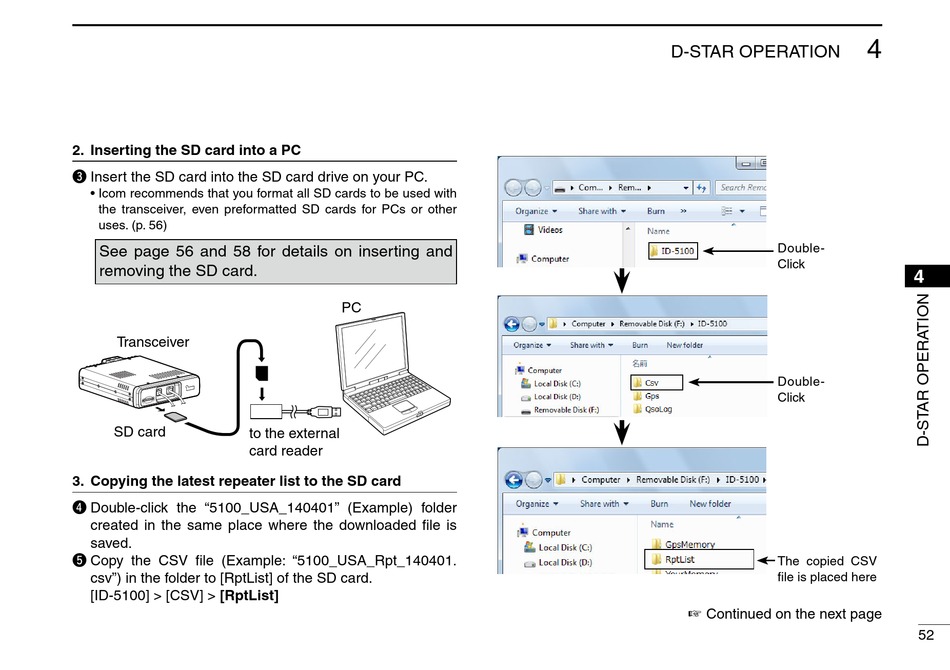

2.
Inserting the SD card into a PC
e Insert the SD card into the SD card drive on your PC.
• Icom recommends that you format all SD cards to be used with
the transceiver, even preformatted SD cards for PCs or other
uses. (p. 56)
See page 56 and 58 for details on inserting and
removing the SD card.
Transceiver
SD card
to the external
card reader
3.
Copying the latest repeater list to the SD card
r Double-click the "5100_USA_140401" (Example) folder
created in the same place where the downloaded file is
saved.
t Copy the CSV file (Example: "5100_USA_Rpt_140401.
csv") in the folder to [RptList] of the SD card.
[ID-5100] > [CSV] > [RptList]
PC
D-STAR OPERATION
Double-
Click
Double-
Click
The copied CSV
file is placed here
Continued on the next page
☞
4
4
52
