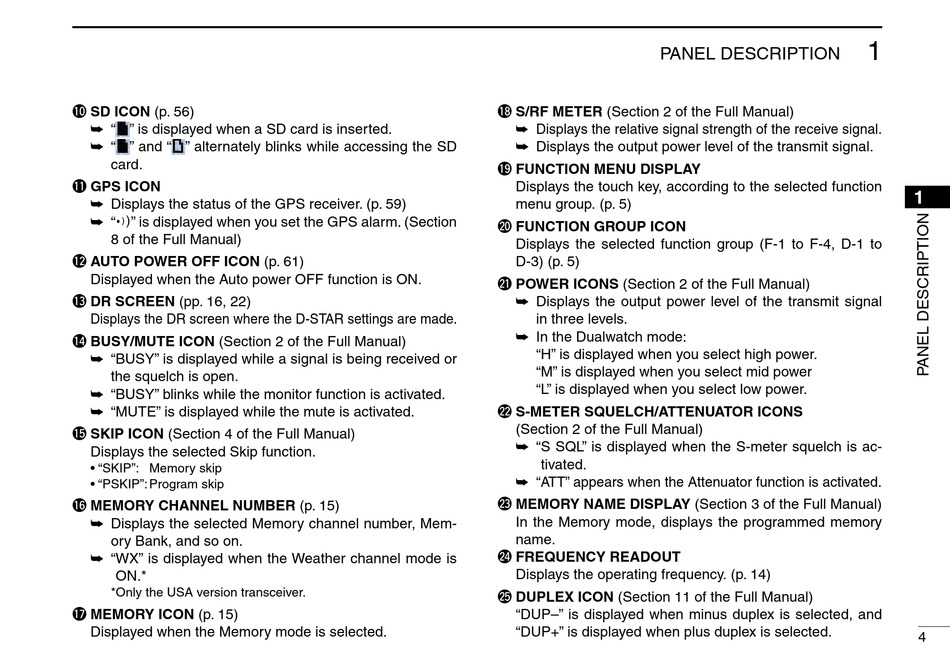

!0 SD ICON (p. 56)
" " is displayed when a SD card is inserted.
➥
" " and " " alternately blinks while accessing the SD
➥
card.
!1 GPS ICON
Displays the status of the GPS receiver. (p. 59)
➥
➥ ì" is displayed when you set the GPS alarm. (Section
"
8 of the Full Manual)
!2 AUTO POWER OFF ICON (p. 61)
Displayed when the Auto power OFF function is ON.
!3 DR SCREEN (pp. 16, 22)
Displays the DR screen where the D-STAR settings are made.
!4 BUSY/MUTE ICON (Section 2 of the Full Manual)
"BUSY" is displayed while a signal is being received or
➥
the squelch is open.
"BUSY" blinks while the monitor function is activated.
➥
"MUTE" is displayed while the mute is activated.
➥
!5 SKIP ICON (Section 4 of the Full Manual)
Displays the selected Skip function.
• "SKIP": Memory skip
• "PSKIP": Program skip
!6 MEMORY CHANNEL NUMBER (p. 15)
Displays the selected Memory channel number, Mem-
➥
ory Bank, and so on.
" WX" is displayed when the Weather channel mode is
➥
ON.*
*Only the USA version transceiver.
!7 MEMORY ICON (p. 15)
Displayed when the Memory mode is selected.
PANEL DESCRIPTION
!8 S/RF METER (Section 2 of the Full Manual)
Displays the relative signal strength of the receive signal.
➥
Displays the output power level of the transmit signal.
➥
!9 FUNCTION MENU DISPLAY
Displays the touch key, according to the selected function
menu group. (p. 5)
@0 FUNCTION GROUP ICON
Displays the selected function group (F-1 to F-4, D-1 to
D-3) (p. 5)
@1 POWER ICONS (Section 2 of the Full Manual)
Displays the output power level of the transmit signal
➥
in three levels.
In the Dualwatch mode:
➥
"H" is displayed when you select high power.
"M" is displayed when you select mid power
"L" is displayed when you select low power.
@2 S-METER SQUELCH/ATTENUATOR ICONS
(Section 2 of the Full Manual)
" S SQL" is displayed when the S-meter squelch is ac-
➥
tivated.
" ATT" appears when the Attenuator function is activated.
➥
@3 MEMORY NAME DISPLAY (Section 3 of the Full Manual)
In the Memory mode, displays the programmed memory
name.
@4 FREQUENCY READOUT
Displays the operating frequency. (p. 14)
@5 DUPLEX ICON (Section 11 of the Full Manual)
"DUP–" is displayed when minus duplex is selected, and
"DUP+" is displayed when plus duplex is selected.
