Icom ID-5100A Basic Manual page 22

1

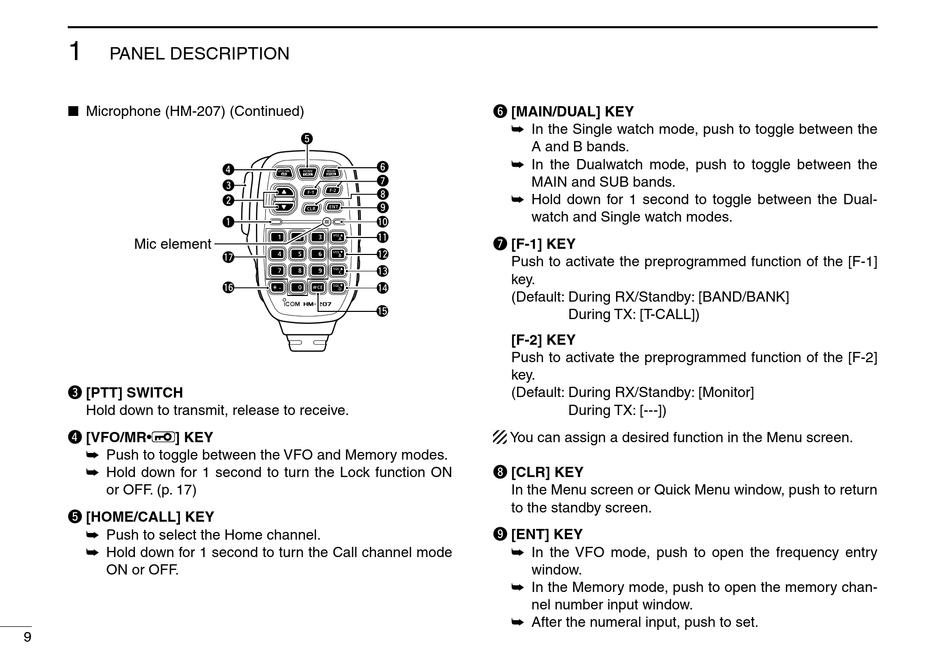

PANEL DESCRIPTION
Microphone (HM-207) (Continued)
■
Mic element
e [PTT] SWITCH
Hold down to transmit, release to receive.
r [VFO/MR• ] KEY
Push to toggle between the VFO and Memory modes.
➥
Hold down for 1 second to turn the Lock function ON
➥
or OFF. (p. 17)
t [HOME/CALL] KEY
Push to select the Home channel.
➥
Hold down for 1 second to turn the Call channel mode
➥
ON or OFF.
9
t
y
r
u
e
i
w
o
!0
q
!1
!2
!7
!3
!6 !4
!5
y [MAIN/DUAL] KEY
In the Single watch mode, push to toggle between the
➥
A and B bands.
In the Dualwatch mode, push to toggle between the
➥
MAIN and SUB bands.
Hold down for 1 second to toggle between the Dual-
➥
watch and Single watch modes.
u [F-1] KEY
Push to activate the preprogrammed function of the [F-1]
key.
(Default: During RX/Standby: [BAND/BANK]
During TX: [T-CALL])
[F-2] KEY
Push to activate the preprogrammed function of the [F-2]
key.
(Default: During RX/Standby: [Monitor]
During TX: [---])
You can assign a desired function in the Menu screen.
i [CLR] KEY
In the Menu screen or Quick Menu window, push to return
to the standby screen.
o [ENT] KEY
In the VFO mode, push to open the frequency entry
➥
window.
In the Memory mode, push to open the memory chan-
➥
nel number input window.
After the numeral input, push to set.
➥
