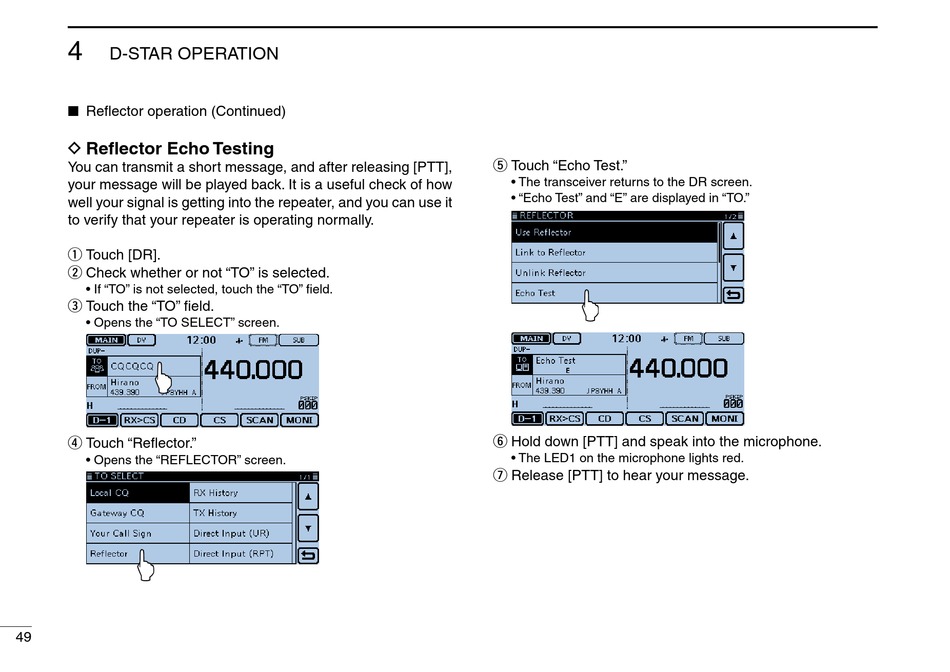

Icom ID-5100A Basic Manual page 62

4
D-STAR OPERATION
Reflector operation (Continued)
■
D Reflector Echo Testing
You can transmit a short message, and after releasing [PTT],
your message will be played back. It is a useful check of how
well your signal is getting into the repeater, and you can use it
to verify that your repeater is operating normally.
Touch [DR].
q
Check whether or not "TO" is selected.
w
• If "TO" is not selected, touch the "TO" field.
Touch the "TO" field.
e
• Opens the "TO SELECT" screen.
Touch "Reflector."
r
• Opens the "REFLECTOR" screen.
49
Touch "Echo Test."
t
• The transceiver returns to the DR screen.
• "Echo Test" and "E" are displayed in "TO."
Hold down [PTT] and speak into the microphone.
y
• The LED1 on the microphone lights red.
Release [PTT] to hear your message.
u
