• The length setup creates an emergency stop, which works when the
printer is set up for "Label (w gaps)", "Ticket (w mark)", or "Ticket
(w gaps)." If the label stop sensor has not detected a gap or mark
within 150% of the set length, the media feed is automatically
stopped to avoid feeding out a whole roll of media, because of a sensor
malfunction.
By setting up the X-start, the Width, and the Length, you will create a
print window inside which the printing can be performed. Any object or
field extending outside the print window in any direction will either be
clipped or cause an error condition (Error 1003 "Field out of label"), see
Intermec Fingerprint v8.xx, Programmer's Reference Manual.

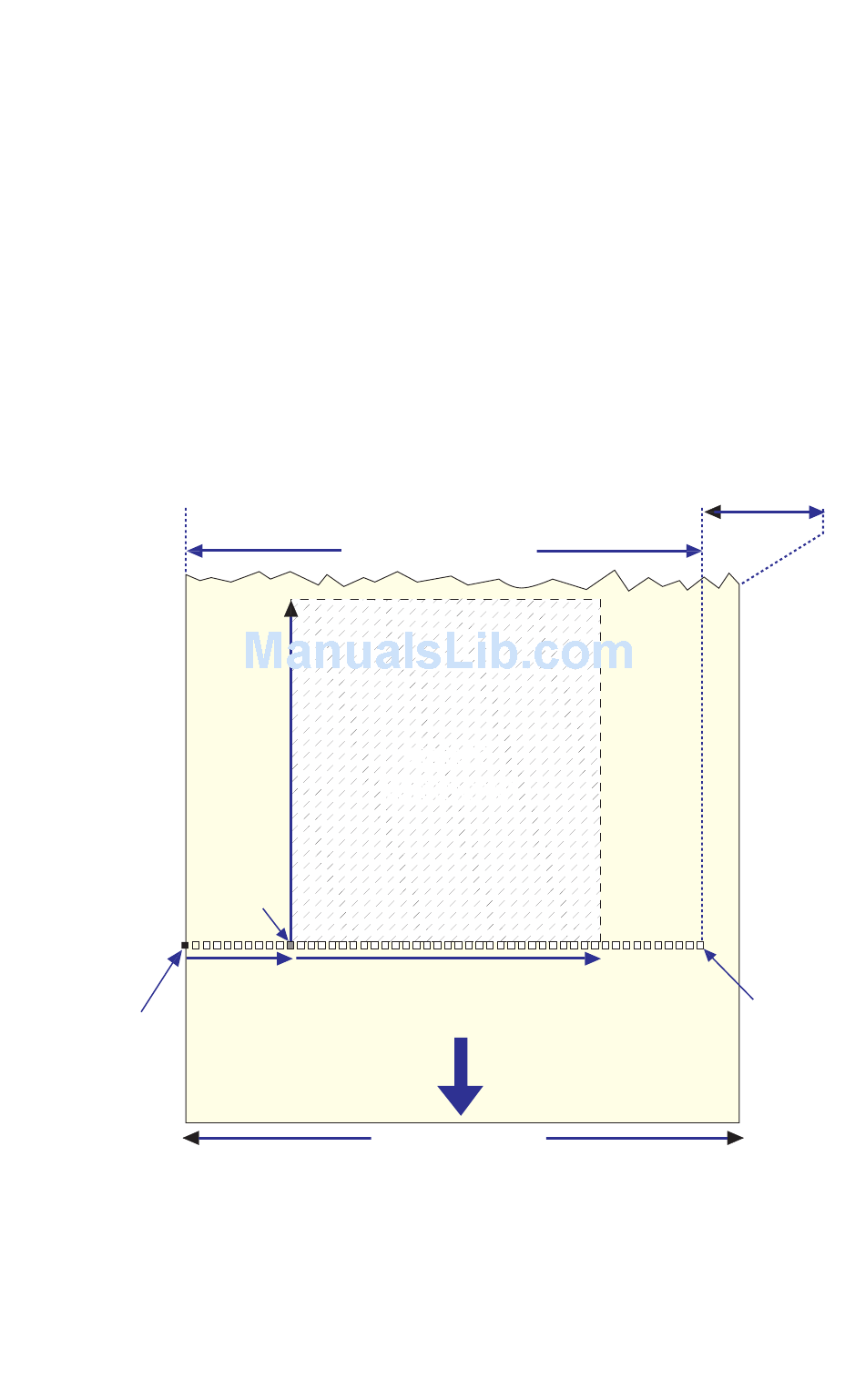

Print Window (8 dots/mm standard printhead)
Origin
Dot-line
on printhead
X-start
Dot #0
Intermec offers a number of non-standard thermal printheads for the
EasyCoder PM4i, see Chapter 9.
Intermec EasyCoder PM4i—User's Guide (Fingerprint version)
max. 104.0 mm (4.095 in)
Length
WINDOW WINDOW
Width (1-832)
25-114.3 mm (1-4.5 in)
Chapter —Setting Up the Printer
PRINT PRINT
FEED
DIRECTION
10.3 mm (0.41 in)
Dot #831
