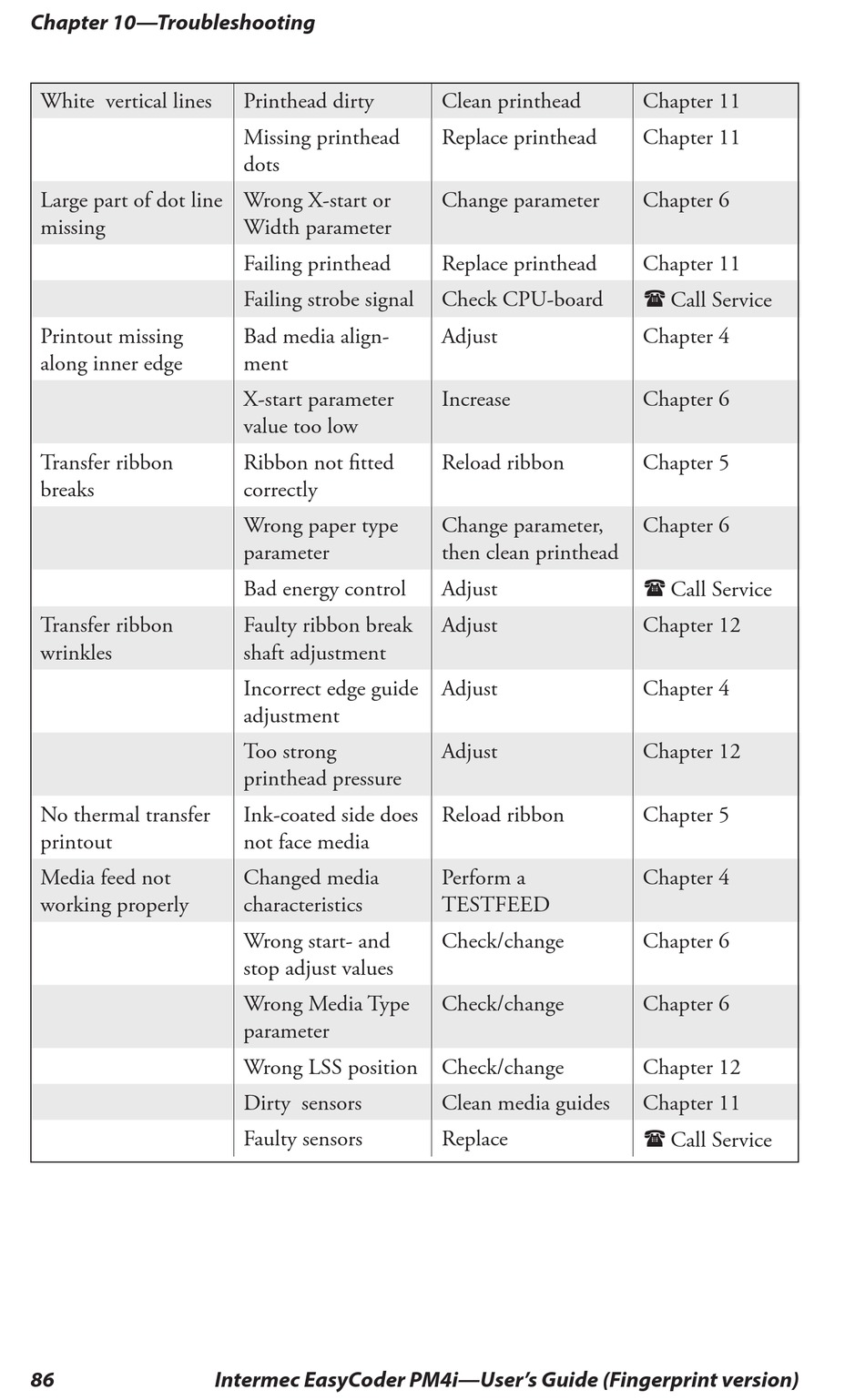

Chapter 0—Troubleshooting
White vertical lines
Large part of dot line
missing
Printout missing
along inner edge
Transfer ribbon
breaks
Transfer ribbon
wrinkles
No thermal transfer
printout
Media feed not
working properly

Printhead dirty
Missing printhead
dots
Wrong X-start or
Width parameter
Failing printhead
Failing strobe signal
Bad media align-
ment
X-start parameter
value too low
Ribbon not fitted
correctly
Wrong paper type
parameter
Bad energy control
Faulty ribbon break
shaft adjustment
Incorrect edge guide
adjustment
Too strong
printhead pressure
Ink-coated side does
not face media
Changed media
characteristics
Wrong start- and
stop adjust values
Wrong Media Type
parameter
Wrong LSS position
Dirty sensors
Faulty sensors
Intermec EasyCoder PM4i—User's Guide (Fingerprint version)
Clean printhead
Replace printhead
Change parameter
Replace printhead
Check CPU-board
Adjust
Increase
Reload ribbon
Change parameter,
then clean printhead
Adjust
Adjust
Adjust
Adjust
Reload ribbon
Perform a
TESTFEED
Check/change
Check/change
Check/change
Clean media guides
Replace
Chapter 11
Chapter 11
Chapter 6
Chapter 11
 Call Service
Chapter 4
Chapter 6
Chapter 5
Chapter 6
 Call Service
Chapter 12
Chapter 4
Chapter 12
Chapter 5
Chapter 4
Chapter 6
Chapter 6
Chapter 12
Chapter 11
 Call Service
