Chapter 4—Media Load
Peel-Off, cont.

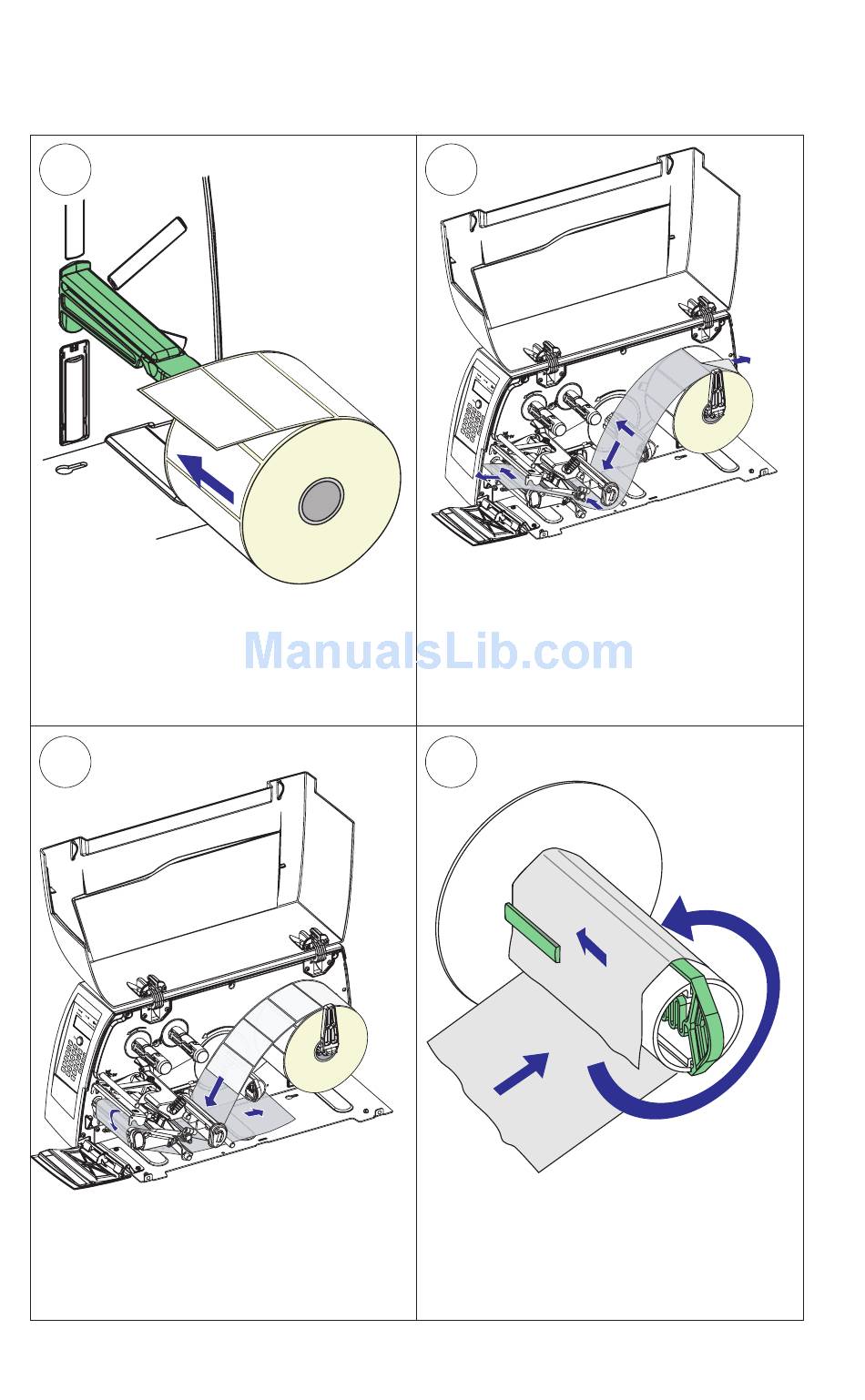

5
Fit a new roll of media on the supply
post. Fold up and adjust the edge guide
so the roll becomes flush with the center
section.
7
Route the liner around the tear bar and
the liner drive roller and back under the
print mechanism and guide shafts.
 Intermec EasyCoder PM4i—User's Guide (Fingerprint version)
6
Remove labels from the first 50 cm
(20 inches) of the liner. Route the liner
through the print mechanism and push
it inwards towards the center section as
far as it goes.
8
Insert the start of the liner under the lip
of the takeup hub, then rotate the hub
counterclockwise a few turns to wind up
some of the liner.
