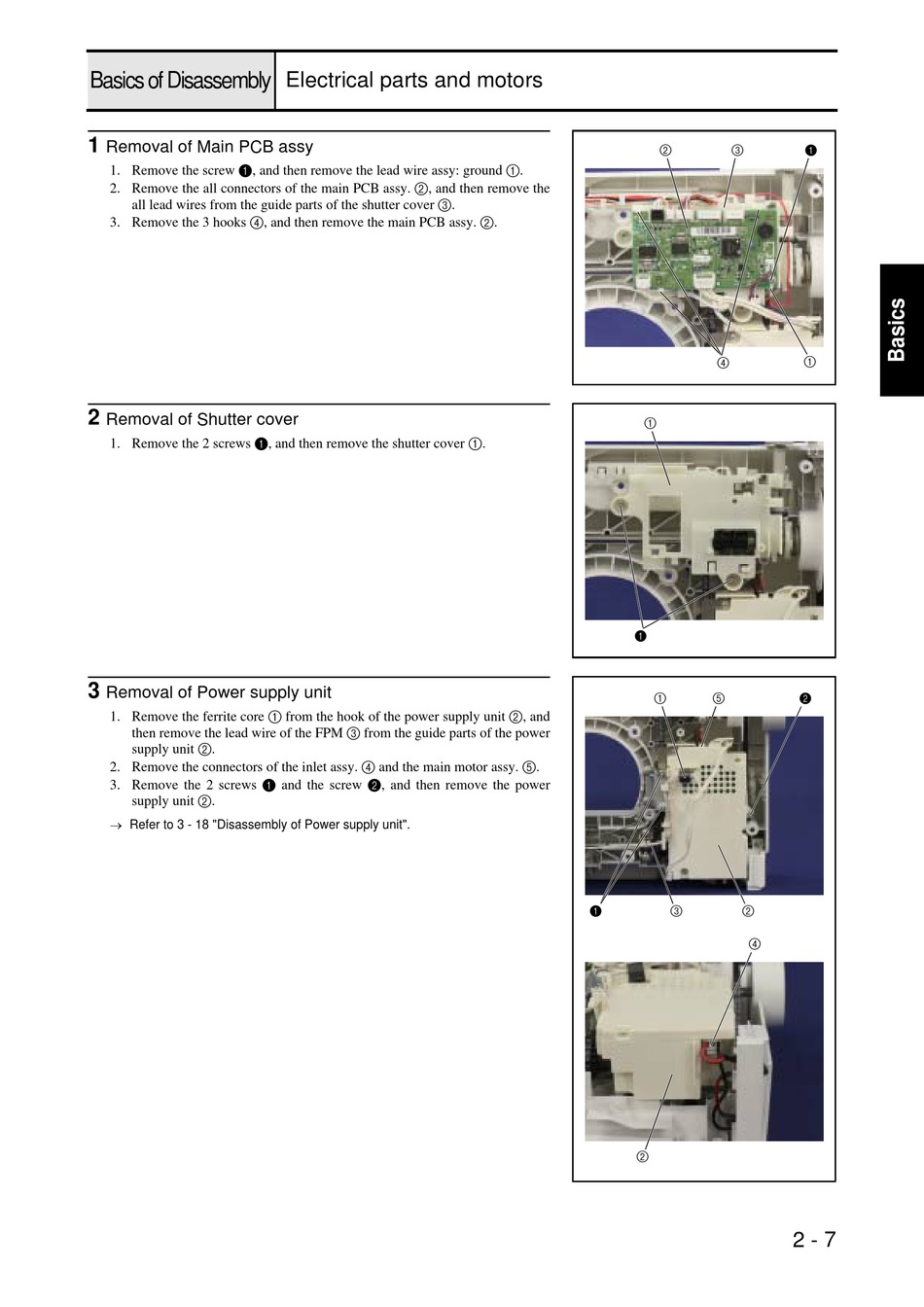

Basics of Disassembly
1
Removal of Main PCB assy
1. Remove the screw 1, and then remove the lead wire assy: ground 1.
2. Remove the all connectors of the main PCB assy. 2, and then remove the
all lead wires from the guide parts of the shutter cover 3.
3. Remove the 3 hooks 4, and then remove the main PCB assy. 2.
2
Removal of Shutter cover
1. Remove the 2 screws 1, and then remove the shutter cover 1.
3
Removal of Power supply unit
1. Remove the ferrite core 1 from the hook of the power supply unit 2, and
then remove the lead wire of the FPM 3 from the guide parts of the power
supply unit 2.
2. Remove the connectors of the inlet assy. 4 and the main motor assy. 5.
3. Remove the 2 screws 1 and the screw 2, and then remove the power
supply unit 2.
→ Refer to 3 - 18 "Disassembly of Power supply unit".
Electrical parts and motors
2
3
4
1
1
1
5
1
3
2
4
2
1
1
2
2 - 7
