Intermec EasyCoder PX4i Service Manual page 48

Chapter 5 — Media Supply

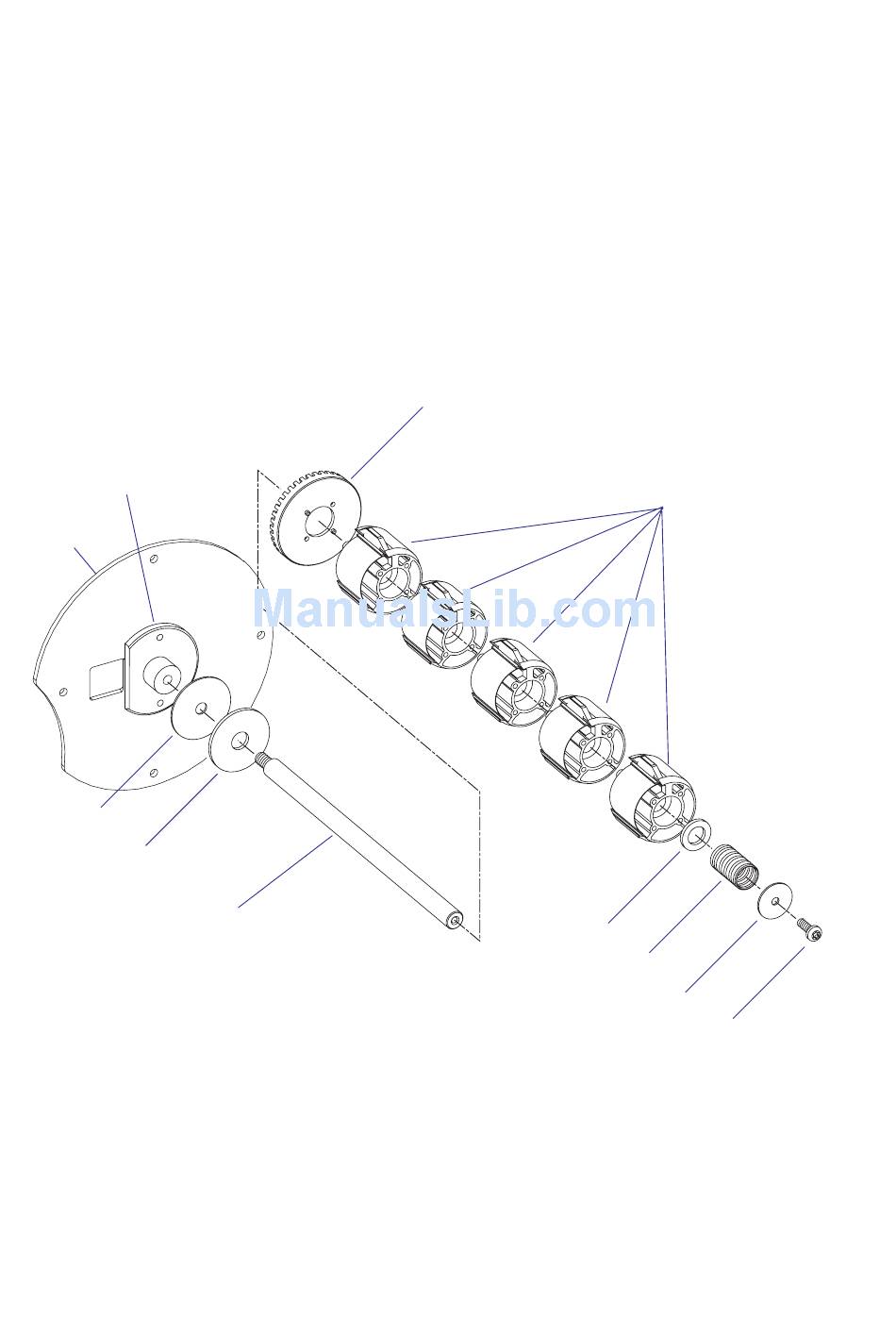

Flange
Plate
Disc
Felt Pad
Shaft
(short in EasyCoder PX4i,
long in EasyCoder PX6i)
38
The media supply hub package can be dismantled by removing the #T20
Torx screw at the end of the shaft. Inside the outermost hub module, there
is a spring that presses the hub package towards a felt pad in order to break
the rotation. Else, the momentum of a large and heavy media roll might
cause excessive media to be unwound when the printing is stopped. The
brake torque should be 70 ±20 Nmm (see Appendix C).
The rotation of the code disc fi tted at the innermost part of the hub pack-
age is detected by the paper sensor.
Be careful to fi t the studs of the innermost hub module into the holes in
the code disc when the package is assembled.
Code disc
Nylon disc
EasyCoder PX4i and PX6i Service Manual
Hub modules
(4 in EasyCoder PX4i,
5 in EasyCoder PX6i)
Spring
Washer
#T20 Torx screw
