EasyCoder PX4i and PX6i Service Manual

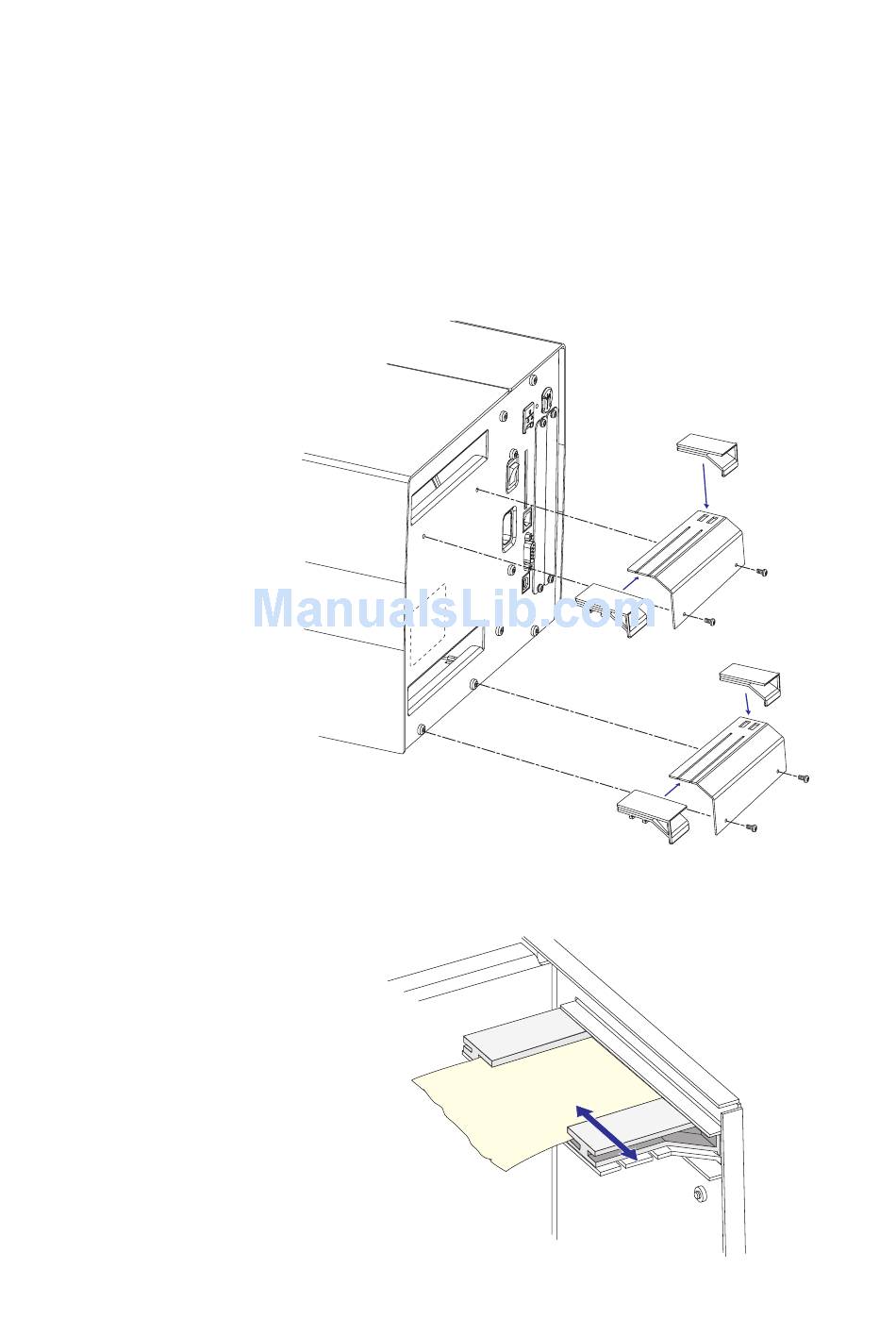

The bracket with the two guides can be fi tted either at the upper or lower
slot in the rear plate, depending on how the media supply is located in
relation to the printer. The principles are the same for EasyCoder PX4i and
EasyCoder PX6i.
Insert the complete unit through the slot from the outside and attach it to
the rear plate using two #T20 Torx screws. In case of the upper position,
use the screws included in the kit, and in case of the lower position, use the
two existing screws that hold the rear plate to the bottom plate.
Adjust the position of the outer guide to fi t the width of the media.
Chapter 5 — Media Supply
