Intermec EasyCoder PX4i Service Manual page 181

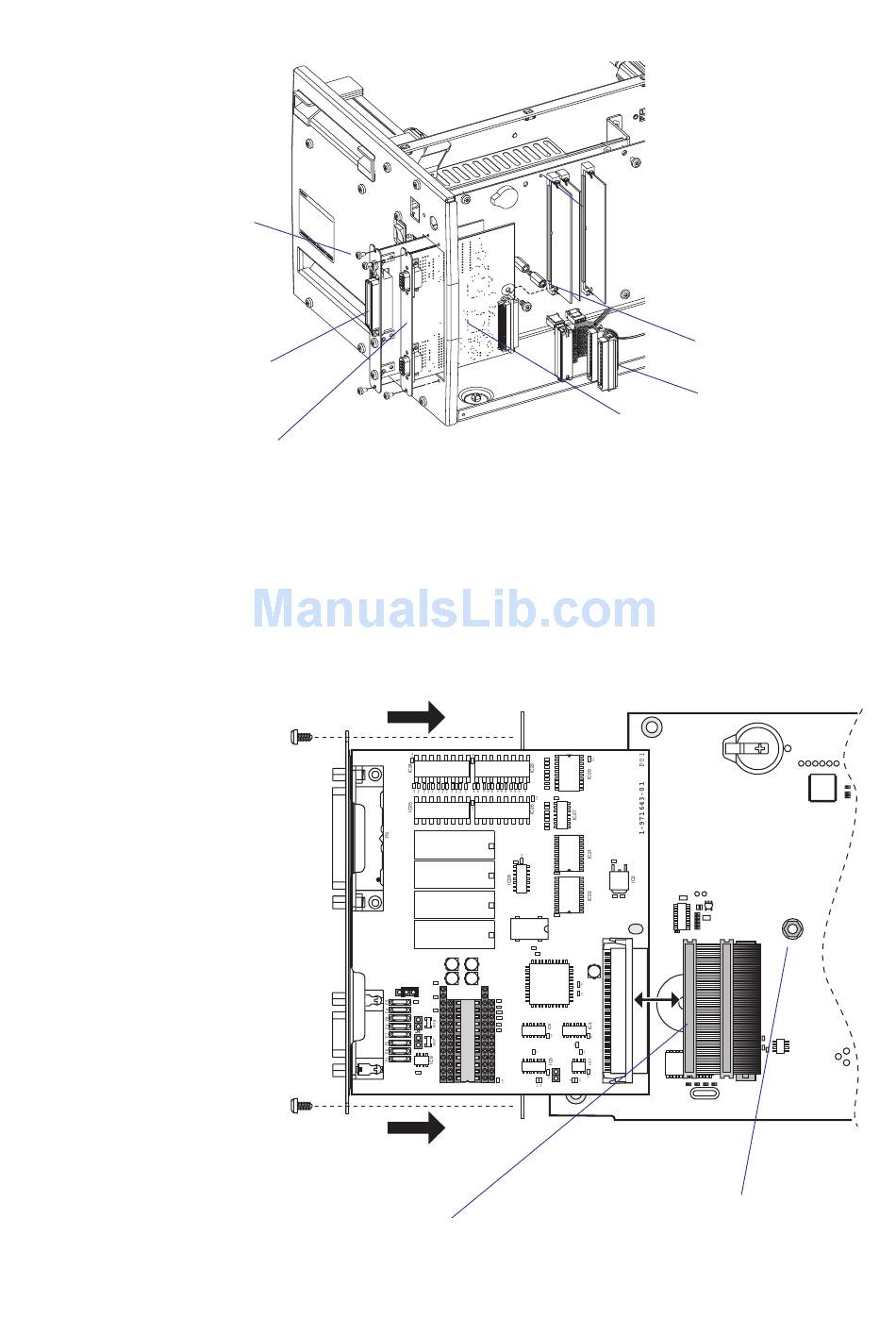

#T10 Torx screws
Inner interface board
Outer interface board
EasyCoder PX4i and PX6i Service Manual
• Installation of one board: Attach the interface board in the innermost
slot in the printer's rear plate using the two screws left over when you
removed the original cover plate. Using the #T20 Torx screw you previ-
ously removed, attach the interface board to the hexagonal spacer at the
center of the CPU board.
• Installations of two boards: First install the inner board, then the outer
one. Put the hexagonal spacer included in the kit between the inner and
the outer interface board, and fi nally secure the outer board with the
screw.
REL4
REL3
REL2
REL1
RS232: IC11, J2A
RS422: IC12, J3, J4
RS485: IC13, J1, J4*
* IF END OF CABLE
R14
UARTA
B A
J2
R13
R15
R12
J3
C54
P2
Flat cable
(two types)
R31
R32
R33
R34
R35
R36
R37
R38
C60
R27
R26
R25
R24
R23
R22
R21
C61
C67
IC3
C66
P35
C33
C3
C4 C35
IC10
C50
C2 C1
IC13
IC11 IC12
R8
J61
R18
R10
C56
R9
C57
J1
Chapter 16 — Interfaces
#T20 Torx screw
and spacer(s)
Flat cable (two types)
Component side
C51
C36 C34
P1
J62
P1
EXP BOARD
Hexagonal
spacer
171
