Appendix A — Program Overviews

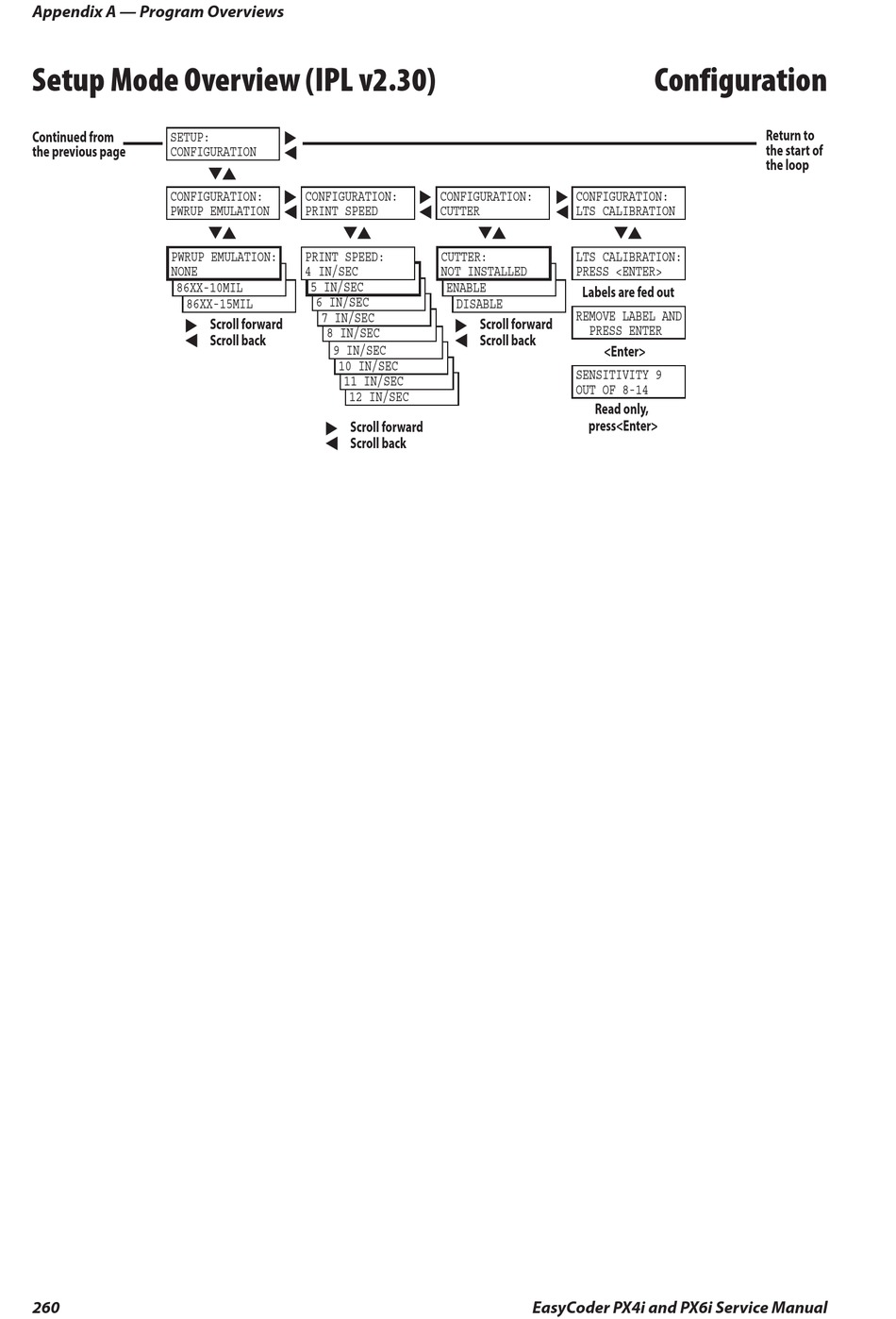

Setup Mode Overview (IPL v2.30)
Continued from
SETUP:
the previous page
CONFIGURATION
CONFIGURATION:
PWRUP EMULATION
PWRUP EMULATION:
NONE
CONFIG:
86XX-10MIL
CONFIG:
86XX-15MIL
260
CONFIGURATION:
PRINT SPEED
PRINT SPEED:
4 IN/SEC
PRINT SPPED:
5 IN/SEC
PRINT SPPED:
6 IN/SEC
PRINT SPPED:
7 IN/SEC
PRINT SPPED:
Scroll forward
8 IN/SEC
PRINT SPPED:
Scroll back
9 IN/SEC
PRINT SPPED:
10 IN/SEC
PRINT SPPED:
11 IN/SEC
PRINT SPPED:
12 IN/SEC
Scroll forward
Scroll back
CONFIGURATION: CONFIGURATION:
CUTTER LTS CALIBRATION
CUTTER: LTS CALIBRATION:
NOT INSTALLED PRESS <ENTER>
CONFIG:
ENABLE
CONFIG:
Labels are fed out
DISABLE
REMOVE LABEL AND
Scroll forward
PRESS ENTER
Scroll back
<Enter>
SENSITIVITY 9
OUT OF 8-14
Read only,
press<Enter>
EasyCoder PX4i and PX6i Service Manual
Configuration
Return to
the start of
the loop
