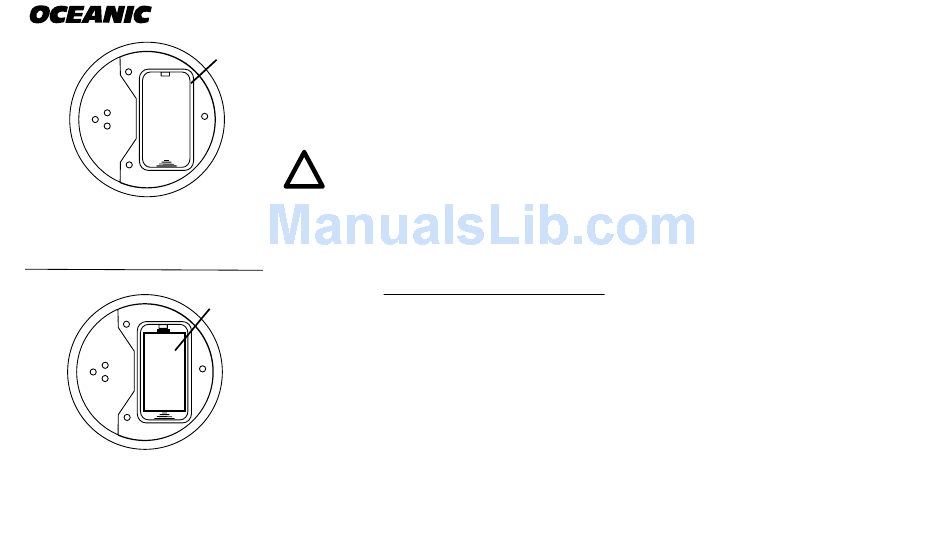

Fig. 71 - O-ring Installation
Battery
+
_
Fig. 72 - Battery Orientation
66

BATTERY INSTALLATION

a
• To replace the battery hatch o-ring, lightly lubricate it with silicon grease
and place it on the beveled outer edge of the battery compartment (Fig.
71a). Ensure that it is evenly seated.
NOTE: This o-ring must be a genuine Oceanic part that can be
purchased from your Authorized Oceanic Dealer. Use of any
other o-ring will void the Data Plus 2 warranty.
• Place a new 3.6 volt TADIRAN
battery, negative end first, into the battery compartment toward the
spring, ensuring proper orientation of the positive (+) and negative (-)
ends (Fig. 72).
• Carefully place the battery hatch into position so that it seats on top of
the o-ring, and while holding it in place with your thumb, secure it with
the three screws by turning them clockwise with a small Philips head
screwdriver. DO NOT attempt to use any other screws.
• Carefully tighten the screws until secure by alternately turning them each
one turn at a time. Turn the upper left, then the right, then the lower left..
• Repeat the sequence until all of the screws are evenly secure. The outer
surface of the battery hatch should be flush with the outer surface of the
housing. DO NOT overtighten.
® , model TL-2150, .95Ah, 1.0ma, Lithium
