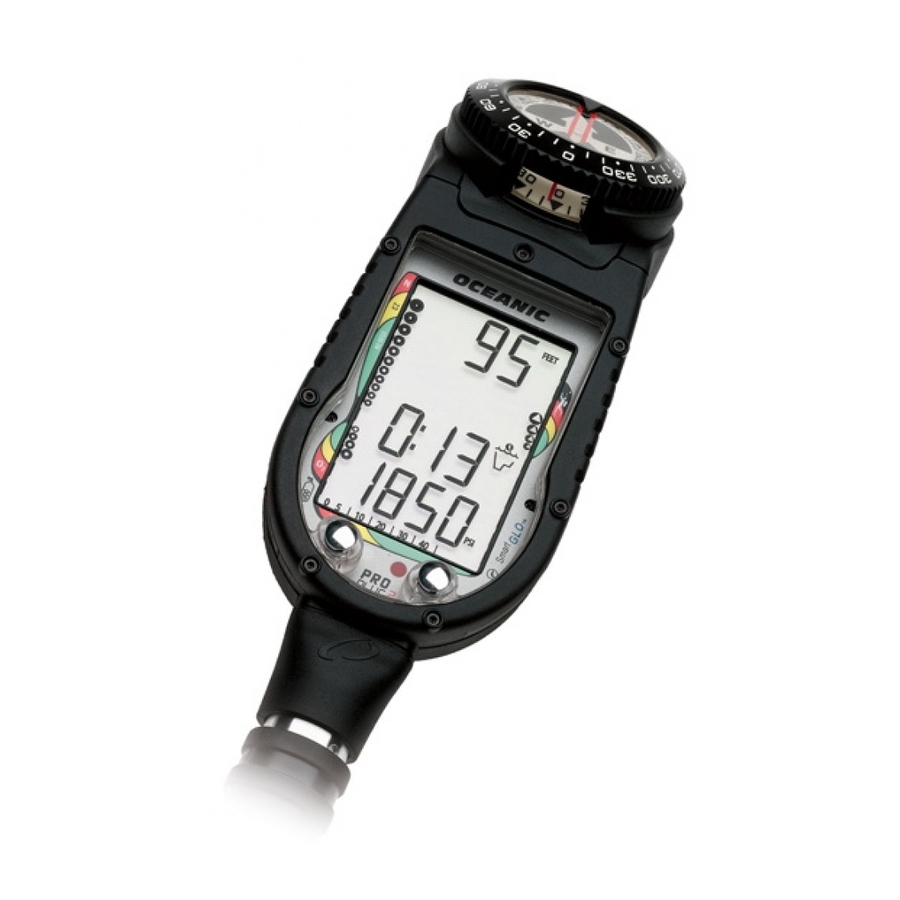

OCEANIC
®
Pro Plus 2
dive computer
operating manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dive Computer Pro Plus 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oceanic Dive Computer Pro Plus 2

Summary of Contents for Oceanic Dive Computer Pro Plus 2

  • Page 1 OCEANIC ® Pro Plus 2 dive computer operating manual...
  • Page 2 San Leandro, Ca. USA 94577 Oceanic, the Oceanic logo, Pro Plus 2, the Pro Plus 2 logo, Smart Glo, OceanGlo, Graphic Diver Interface, Tissue Loading Bar Graph, Pre Dive Planning Sequence, Variable Ascent Rate Indicator, Set Point, Control Console, Turn Gas Alarm, and OceanLog are all registered and unregistered trademarks of Oceanic.
  • Page 6 DECO FEET FAST DEMO...
  • Page 8 It is extremely important that you read this Operating Manual in sequence and under- stand it completely before attempting to use the Pro Plus 2. It is equally important that you read the Oceanic Dive Computer Safety and Reference Manual (Doc. No. 12-2262) provided with your Pro Plus 2. It contains information that you must become familiar with prior to diving with your Pro Plus 2.
  • Page 9 The Tissue Loading Bar Graph (Fig. 2a) represents tissue loading of nitrogen, showing your relative no decompression or decompression status. As your depth and elapsed dive time increase, segments will add to the Graph, and as you ascend to shallower depths, the Bar Graph will begin to recede, indicating that additional no decompression time is allowed for multilevel diving.
  • Page 10 The O2 Bar Graph (Fig. 3a) represents oxygen loading, showing the maximum of either per dive accumulated oxygen, or 24 hour period accumulated oxygen. As your oxygen exposure (accumulation) increases during the dive, segments will add to the Bar Graph, and as loading decreases, it will begin to recede, indicating that addi- tional exposure is allowed for that dive and 24 hour period.
  • Page 11 The Pro Plus 2 constantly monitors three critical pieces of information; no decompression status, oxygen accumulation, and breathing gas consumption rate. Refer to the Oceanic Dive Computer Safety and Reference Manual which describes Dive Time Remaining which is a display that indicates the time that is more critical for you at that particular moment (i.e.;...
  • Page 12 Cylinder Pressure (Fig 6a) is displayed any time the Pro Plus 2 is connected to a pressurized cylinder and in an active operating mode. Values of pressure are displayed numerically from 10 PSI (.5 BAR) up to 5000 PSI (352 BAR) in increments of 10 PSI (.5 BAR).
  • Page 13 Time displays are shown in hour:minute format (i.e., 1:16 represents 1 hour and 16 minutes, not 116 minutes!). The colon that separates hours and minutes blinks once per second when the display is indicating real time (e.g., Elapsed Dive Time), and is solid (non-blinking) when times are calculated projections (e.g., Time to Fly).
  • Page 14 A red LED Warning Light will light and a Speaker icon will appear when the Audible Alarm emits a tone. They will turn off when the Alarm is acknowledged, and will not activate if the Audible is Set OFF (a user setting). When warning situations activate the Alarm, the unit will emit a continuous tone for 10 seconds, or until the situation is corrected, or it is acknowledged by the user pressing the Left (Advance) button for 2 seconds.
  • Page 15 • Entry into Decompression Mode. • Air Time Remaining Bar Graph Alarm (a user setting). • Air Time Remaining = 5 minutes. • Air Time Remaining = 0 minutes. • Turn Pressure Alarm (a user setting). • End Pressure Alarm (a user setting). •...
  • Page 16 To activate the Backlight - press the Right (Select) button. The Pro Plus 2 utilizes one (1) 3 volt, CR2 Lithium Battery that should provide from 50 dive hours of operation, if you conduct 1 - one hour dive each time the unit is activated, to over 150 dive hours of operation, if you conduct 3 or more one dives each time the unit is activated.
  • Page 17 • Voltage level is checked upon activation and every 10 minutes during operation. • When 75 % of the Rated Power has been consumed, only the lower bar of the Indicator will be displayed and the full icon will flash (Fig. 9) once per second as a warning that the Battery is to be replaced prior to con- ducting any further dives.
  • Page 18 After Activation, the Pro Plus 2 will operate as an Air com- puter without displaying information associated with oxygen calculations, unless it is set for a percentage of oxygen (FO2) other than Air (a numerical value between 21 and 50 %). When set with an FO2 value of 'Air' (Fig.
  • Page 19 Once a dive is made with the unit set as a Nitrox Computer (FO2 set for a numerical value), it cannot be programmed to operate as an Air Computer until 24 hours after the last dive. 'Air' will not be displayed as an option in the FO2 Mode. However, you can set FO2 for 21% for use with Air.
  • Page 20 If the Default function is set to OFF (Fig. 13), the FO2 value for repetitive dives remains the same as previously set until the set point is manually changed.
  • Page 22 To Activate the Pro Plus 2, press and release the Left (Advance) Button. • Upon manual activation, the unit will enter Diagnostic Mode (Fig. 14), displaying all segments of the LCD as 8's, followed by dashes (- -), then a countdown from 9 to 0. Diagnostic Mode checks the display and battery voltage to ensure that everything is within tolerance and functioning properly.
  • Page 23 Surface Mode (Fig. 15), identified by the Surface Time icon, follows Diagnostic Mode after Activation. Information includes Dive Number '0' (no dive made yet), Temperature (and icon), Time of Day (with icon), the Battery Consumption Indicator, and Surface Time (with flashing colon). To activate the Backlight: •...
  • Page 24 Settings are divided into 2 categories. Set Mode #1 includes several settings that you would change more often and Set Mode #2 includes those items not likely to change once you set them. Set Mode 2 can be accessed by first entering settings in Set Mode 1, or by bypassing Set Mode 1.
  • Page 25 TO SET - FO2 (while in the Surface Mode) Factory set for AIR, FO2 can also be set to values between 21 and 50% in increments of 1%. • Press Both buttons simultaneously, release when SET: 1 appears (2 seconds). •...
  • Page 26 TO SET - MAX DEPTH ALARM (while in the Surface Mode) Factory set for 330 feet, the Alarm can be set to values between 30 feet (3 meters) and 330 feet ( 99 meters) in increments of 10 feet (3 meters). FEET •...
  • Page 27 TO SET - ELAPSED DIVE TIME ALARM (while in the Surface Mode) Factory set for 3:00 (hr:min), the Alarm can be set to values between 0:10 and 3:00 (hr:min) in increments of 5 minutes. • Press Both buttons simultaneously, release when SET: 1 appears (2 seconds).
  • Page 28 PC INTERFACE PC Interface is not a setting, it is included in the Set 1 menu for easy access when data in the unit's memory is to be downloaded (copied) to the PC download software program for storage and viewing. To download data (while in the Surface Mode)- •...
  • Page 29 These settings are ones that are not likely to change. To save time at the dive site, verify the set points and adjust them as desired prior to departing on the day's dive trip. TO SET - UNITS OF MEASURE (while in the Surface Mode) Factory set for Imperial, Units of Measure can also be set for Metric.
  • Page 30 TO SET - HOUR FORMAT (while in the Surface Mode) Factory set for 12 Hr (12: Am to 11: Pm), the Format can also be set for 24 Hr (0: to 23: hours). • Press Both buttons simultaneously, release when SET: 2 appears (4 seconds).
  • Page 31 TO SET - TIME (while in the Surface Mode) Set for factory local time, the Time can be set to values between 1:00 and 12:59 (AM/PM) or 0:00 and 23:59. • Press Both buttons simultaneously, release when SET: 2 appears (4 seconds). •...
  • Page 32 TO SET - DATE (after setting Time) Factory set for the factory local Date, the Date can be set to values between 01/01/01 and 12/31/20. • After having set and accepted the Time, the Date ap- pears with the graphic dAY, and Year value flashing (Fig.
  • Page 33 TO SET - AUDIBLE ALARM (while in the Surface Mode) Factory set for ON, the Alarm can be also be set to OFF. This setting also applies to the red LED Warning Indicator that is synchronized with the Audible Alarm. When set OFF, the Alarm will not sound during the condi- tions described on page 14.
  • Page 34 TO SET - MAXIMUM TISSUE LOADING BAR GRAPH (TLBG) ALARM (while in the Surface Mode) Factory set for DECO (all 8 segments), the Maximum Tissue Loading Bar Graph (TLBG) Alarm can be set to values between DECO (all 12 segments) and 1 segment. DECO •...
  • Page 35 TO SET - AIR TIME REMAINING BAR GRAPH ALARM (while in the Surface Mode) Factory set for 5 minutes, the Air Time Remaining Bar Graph Alarm can be set to values of 0, 5, and 10 to 60 minutes in increments of 5 minutes.
  • Page 36 TO SET - TURN PRESSURE ALARM (while in the Surface Mode) Factory set for 00 PSI/BAR (disabled), the Turn Pressure Alarm can be set to values between 1000 and 3000 PSI (69 to 205 BAR) in increments of 250 PSI (17 BAR). •...
  • Page 37 TO SET - END PRESSURE ALARM (while in the Surface Mode) Factory set for 00 PSI/BAR (disabled), the End Pressure Alarm can be set to values between 300 and 1500 PSI (20 to 104 BAR) in increments of 100 PSI (7 BAR). •...
  • Page 38 TO SET - DIVE TIME REMAINING ALARM (while in the Surface Mode) Factory set for 5 minutes, the Dive Time Remaining Alarm can be set to values between 0:00 and 0:20 (minutes) in increments of 1 minute. • Press Both buttons simultaneously, release when SET: 2 appears (4 seconds).
  • Page 39 TO SET - MAXIMUM PO2 ALARM (while in the Surface Mode) Factory set for 1.60 (ATA), the Maximum PO2 Alarm can be set to values between 1.20 and 1.60 (ATA) in increments of .10 (ATA). • Press Both buttons simultaneously, release when SET: 2 appears (4 seconds).
  • Page 40 TO SET - FO2 50% DEFAULT (while in the Surface Mode) Factory set ON, the FO2 50% Default feature can be set to OFF. The effects of this feature being ON or OFF are described on page 19. • Press Both buttons simultaneously, release when SET: 2 appears (4 seconds).
  • Page 41 TO SET - BACKLIGHT DURATION (while in the Surface Mode) Factory set for 3 seconds, the Backlight Duration can be set to values of 0 (disabled), 3, or 7 seconds. This is the length of time the Backlight stays On after the button is released. •...
  • Page 42 TO SET - PC SAMPLING RATE (while in the Surface Mode) Factory set at 15 seconds, the Sampling Rate can be set at values of 2, 15, 30, or 60 seconds, or 2, 5, or 10 feet (.5, 1.5, or 3 meters). •...
  • Page 43 TO SET - USER SET DIGITAL GAUGE MODE (while in the Surface Mode) Factory set OFF, Digital Gauge Mode can also be set ON. The effects of this feature being ON or OFF are described on page 64. • Press Both buttons simultaneously, release when SET: 2 appears (4 seconds).
  • Page 44 TO SET - WATER ACTIVATION (while in the Surface Mode) Factory set for ON, the Water Activation feature can also be set for OFF (disabled) to prevent inadvertent activation during travel or storage. When set ON, the Pro Plus 2 will automatically Activate when immersed in water.
  • Page 46 Oceanic strongly recommends that you review the Pre Dive Planning Sequence (PDPS) prior to every dive to help you plan your dive as required to avoid exceeding no decompression or oxygen exposure limits. This is especially important for repetitive dives when the...
  • Page 47 To access the Pre Dive Planning Sequence (while in the Surface mode) - • Press the Left (Advance) button 1 time • Press and release the Right (Select) button to advance through the Depths/Times, one screen at a time; and then to Surface Mode.
  • Page 48 FEET As your Depth and Elapsed Dive Time increase, the Tissue Loading Bar Graph (TLBG) will add segments (green toward red) to represent the absorption of nitrogen. While ascending to shallower depths, the number of seg- ments displayed will begin to recede, offering a graphic representation of your multilevel diving capability.
  • Page 49 If FO2 was set for a numerical value (nitrox), the Oxygen Accumulation (O2) Bar Graph will add segments (green toward red) to represent oxygen accumulation for that dive, or 24 hour period, whichever amount is greater. The Variable Ascent Rate Indicator (VARI) shows how fast you are ascending.
  • Page 50 FEET During No Decompression conditions, various displays of information (up to 4) are available. Each provides Depth, Dive Time Remaining, and additional information. The intent of this feature is to provide the diver control of how much information is on the display at any given time during the dive.
  • Page 51 During conditions in which Cautionary type information is displayed (e.g., No Decom- pression Safety Stop, Decompression, High PO2, etc.), there is a Main Display of impor- tant information relevant to the specific condition. The diver can access another display, but it will automatically revert to the Main Display after 3 seconds. To activate the Backlight during a dive, press the Right (Select) button.
  • Page 52 FEET Information includes Current Depth, Max Depth for that dive and icon, Elapsed Dive Time and icon, Dive Time Remaining and icon, Tank Pressure, and the applicable bar graphs. Information includes Current Depth, Temperature, Time of Day, Dive Time Remaining and icon, Tank Pressure, and the FEET applicable bar graphs.
  • Page 53 To view, press the Left (Advance) button for 2 seconds. Information includes Current Depth, Air Time Remaining (and Mode icon), and applicable bar graphs. The Display will remain on the screen for 3 seconds then revert back to the Display previously selected (#1, 2, 3, 4). Upon ascending to 20 feet (6 meters) on any No Decompres- sion dive in which depth exceeded 30 feet (9 meters), a short beep will be emitted and a Safety Stop at 15 feet (4.5...
  • Page 54 The Pro Plus 2 is designed to help you by providing a repre- sentation of how close you are to entering Decompression. Decompression Dive Mode (Fig. 55) activates when theoreti- cal No Decompression time/depth limits are exceeded. Upon entering Decompression Mode, the Audible Alarm will sound and the red LED Warning Light will flash for 10 seconds (unless set OFF), or until acknowledged.
  • Page 55 To fulfill your decompression obligation, you should make a safe controlled ascent to a depth slightly deeper than, or equal to, the Required Ceiling Stop Depth indicated (Fig. 56a) and decompress for the Stop Time indicated (Fig. 56b). The amount of decompression credit time that you receive is dependent on depth, with slightly less credit given the deeper you are.
  • Page 56 DECO FEET Information includes - Current Depth, Maximum Depth for that dive (and icon), Elapsed Dive Time (and icon), Total Ascent Time (and Mode icon), both Arrows and the Deco Bar, and the applicable bar graphs. Information includes - Current Depth, Temperature, Time of Day (and icon), Total Ascent Time, both Arrows and the DECO Deco Bar, and the applicable bar graphs.
  • Page 57 While in Violation Modes the Alternate Displays previously described can be accessed using the Left (Advance) button, and the Backlight can be activated using the Right (Select) button. • The Pro Plus 2 will automatically revert to the Main Display after 3 seconds unless the Left (Advance) button is pressed to view another display of information.
  • Page 58 The added Penalty (decompression) Time will have to be 'worked off' first, before obtaining off-gassing credit. Once the Penalty Time is worked-off, and off-gassing credit begins, required decompression Stop Depths and Time will decrease toward zero. The Tissue Loading Bar Graph will recede into the yellow Caution Zone and the Pro Plus 2 will revert to the No Decompression Dive Mode.
  • Page 59 The Pro Plus 2 cannot calculate decompression times for Stop Depths much greater than 60 feet (18 meters) and offers no indication of how much time spent underwater would result in the need for a greater Stop Depth. If the Decompression obligation requires a Ceiling Stop Depth between 60 feet (18 meters) and 70 feet (21 meters), the Tissue Loading Bar Graph will flash.
  • Page 60 Upon ascending above 330 feet (99.9 meters), the Current Depth display will be restored, however Max Depth will only display 3 dashes for the remainder of that dive. The Log for that dive will display 3 dashes as the Max Depth achieved. During a Dive, if a ceiling much greater than 60 feet (18 meters) is required, an Immediate Violation Mode will be entered.
  • Page 61 The Pro Plus 2 will also enter an Immediate Violation Mode 5 minutes after reaching the surface from a dive in which a Delayed Violation occurred. On the surface, Gauge Mode displays the Dive Number, Temperature, Time of Day, and Surface Interval (Fig. 65). It does not provide the FO2, PDPS, or Time to Fly and Desaturate features.
  • Page 62 FEET When partial pressure of oxygen (PO2) becomes equal to, or greater than, 1.40 ATA, or 0.2 ATA less than the PO2 Alarm set point (a user setting); the red LED warning will flash, the Audible Alarm will sound (unless set OFF), and the current PO2 value, PO2 symbol, O2 segment of the O2 Bar Graph, and UP Arrow will appear on the Main Display as a warning until PO2 decreases.
  • Page 63 The O2 Bar Graph displays either oxygen accumulated during that nitrox dive, or during the repetitive nitrox dives you conduct during that 24 hour period, whichever of the two is greater at that time. The yellow Caution Zone of the O2 Bar Graph offers you a convenient way to consistently monitor how close you are coming to the limits of oxygen exposure.
  • Page 64 FEET When Digital Gauge Mode is set for ON, the Pro Plus 2 will operate as a Digital Depth Gauge/Timer without performing nitrogen and oxygen calculations (Fig. 69). Time of Day and Elapsed Dive Time will also be displayed. If your Pro Plus 2 stops working for any reason, it is impor- tant that you have anticipated this possibility and are pre- FEET pared for it.
  • Page 66 When you ascend to 3 feet (1 meter) or shallower, the Pro Plus 2 will enter Surface Mode and begin counting your surface interval. The first 10 minutes is, in affect, a Transition Period during which time the following information is displayed (Fig. 71): •...
  • Page 67 Refer to page 64 for a description of the Log Mode displays. • Press the Left (Advance) button 1 time. • Press the Right (Select) button 1 time to view the Nitro- gen data screen. • Press the Right (Select) button again to view the Oxygen data screen (if a nitrox dive).
  • Page 68 For the remainder of the first 2 hours after surfacing, information will continue to be displayed as Surface Mode (Fig. 73) and you will have full access to other modes (e.g., PDPS, Fly, Desat, Log, Set, etc.). (Also refer to page 46) FEET The Pre Dive Planning Sequence now shows adjusted No Decompression Limits (Fig.
  • Page 69 • Press the Left (Advance) button 2 times. • The Time to Fly counter (Fig. 75) begins counting down 10 minutes after surfacing from a dive (after the Transition Period) displaying the word 'FLY' and a countdown that begins at 23:50 (hr:min) and counts down to 0:00 (hr:min).
  • Page 70 Information from your latest 24 dives is stored in the Log for viewing. The first dive of a new 'activation period' will be #1, then #2, etc. After 24 dives are accumulated, each subsequent dive will overwrite the oldest dive in the Log (i.e., the most recent dive deletes the oldest).
  • Page 71 To access the Log Mode and view the First Screen (While in Surface Mode) - • Press the Left (Advance) button 4 times. • The First Screen of the most recent dive will appear displaying (Fig. 77) - • The Log Mode icon •...
  • Page 72 To view the Third Screen of the Log (Oxygen data) To access the first screen of the previous dive's Log Two hours after the last dive, Surface Mode will no longer be displayed, the Time to Fly and Desaturation countdowns will be displayed alternately for 3 seconds each until they count down to 0:00 or another dive is made.
  • Page 73 If the graphic H2O appears during the Fly Mode (Fig. 81) and Desaturation Mode (Fig. 82) countdowns that alternate 2 hours after a dive, it is an indication that the water activa- tion contacts are bridged (still wet) and the unit must be rinsed in fresh water and thoroughly dried.
  • Page 74 PC program running on a Windows Compatibility requirements and instructions are provided with the optional download package that is available from your Authorized Oceanic Dealer. The software program provides dive tabular and graphic profile data sampled throughout the dives at the interval you set.
  • Page 76 This mode provides you with the ability to practice various dive mode scenarios and computer functions while observing DEMO the various displays. DEMO • The SmartGlo Backlight functions as it normally does. • At any time while in Simulator Mode, pressing and holding both buttons simultaneously for 2 seconds shall revert operation to real Surface Mode.
  • Page 77 • Press and release the Right (Select) button to toggle between Gauge ON and OFF. • Press and release the Left (Advance) button to accept the setting and advance to DEMO: NI-O2 with CUR (or NEW) flashing (Fig. 86). • When set for NEW, calculations are based on zero residual nitrogen and oxygen loading (a clean dive).
  • Page 78 DEMO DEMO • Press and release the Right (Select) button to toggle between Pressure ON and OFF. • Press and release the Left (Advance) button to accept the setting and revert to Demo Surface Mode with the DEMO icon flashing. •...
  • Page 79 Hint: Quick taps (<2 seconds) of the Right (Select) button starts/stops Descents and Time Acceleration. Quick taps of the Left (Advance) button accesses Alternate displays. • While the Down Arrow is flashing, tap (press/release) the Right (Select) button to begin a Descent at a rate of 5 feet (1.5 meters) per real second.
  • Page 80 FEET Rate of Ascent can be set for 1 or 3 feet per seconds (fps) prior to start of the Ascent. To change the Rate during an DEMO Ascent, it must first be stopped. FEET FAST DEMO • Pressing and holding the Left (Advance) button for 2 seconds will access an Ascent Rate of 1 fps.
  • Page 81 • The Simulator will enter Demo Surface Mode (Fig. 94) upon ascending to 3 feet (1 meter) or shallower. • Press and hold the Right (Select) button for 4 seconds to access Time Acceleration. The small Time Clock icon will begin flashing.
  • Page 82 Be a - RESPONSIBLE DIVER at all times.
  • Page 84 To keep the 2 year limited warranty in effect, this inspection must be completed one year after purchase (+/- 30 days). Oceanic recommends that you continue to have this inspection performed every year to ensure it is working properly. The costs of annual inspections are not covered under the terms of the 2 year limited warranty.
  • Page 85 Take your Pro Plus 2 to an Authorized Oceanic Dealer or send it to the nearest Oceanic Regional Distributor Facility. To return your Pro Plus 2 to Oceanic: • Record all dive data in the Log and/or download the data in memory. All data will be erased when it receives factory service.
  • Page 86 If there is any sign of moisture in the module, DO NOT use the Pro Plus 2 until it receives proper service by an Authorized Oceanic Dealer, or the Oceanic factory. If the new Battery can be inserted within 8 seconds after the old one is removed (Hot Swap), settings and nitrogen and oxygen calculations for repetitive dives will be retained.
  • Page 87 • If corrosion is found, return the Pro Plus 2 to an Autho- rized Oceanic Dealer, and DO NOT attempt to use it until it has received factory service. (continued on page 88)
  • Page 88 • Inspect the Buttons, Lens, and Housing to ensure they are not cracked or damaged. • Replace the Hatch O-ring with a new one. This O-ring must be a genuine Oceanic part that can be purchased from an Authorized Oceanic Dealer. Use of any other O-ring will void the warranty.
  • Page 89 • If any portions of the display are missing or appear dim, or if a Low Battery Condition is indicated, return your Pro Plus 2 to an Authorized Oceanic Dealer for a complete evaluation before attempting to use it.
  • Page 99 This dive computer is configured with a RESET feature that allows data to be cleared, including Nitrogen and Oxygen calculations, FO2 set point, Log Mode entries, and Download data. • While in SURFACE MODE (new activation period or greater than a 10 minute post dive surface interval), press the Left (Advance) button one (1) time to access PLAN MODE.
  • Page 100 OCEANIC ® USA 2002 Davis Street San Leandro, CA 94577 Tel: 510-562-0500 Fax: 510-569-5404 http://www.OceanicWorldWide.com © 2002 Design 200 Doc. No. 12-2328-r03 (6/6/02)
