PROPLUS X BATTERY SERVICE PROCEDURE
DOC. 12-7959-r02 (8/19/20)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROPLUS X and is the answer not in the manual?

Questions and answers

Related Manuals for Oceanic PROPLUS X

Summary of Contents for Oceanic PROPLUS X

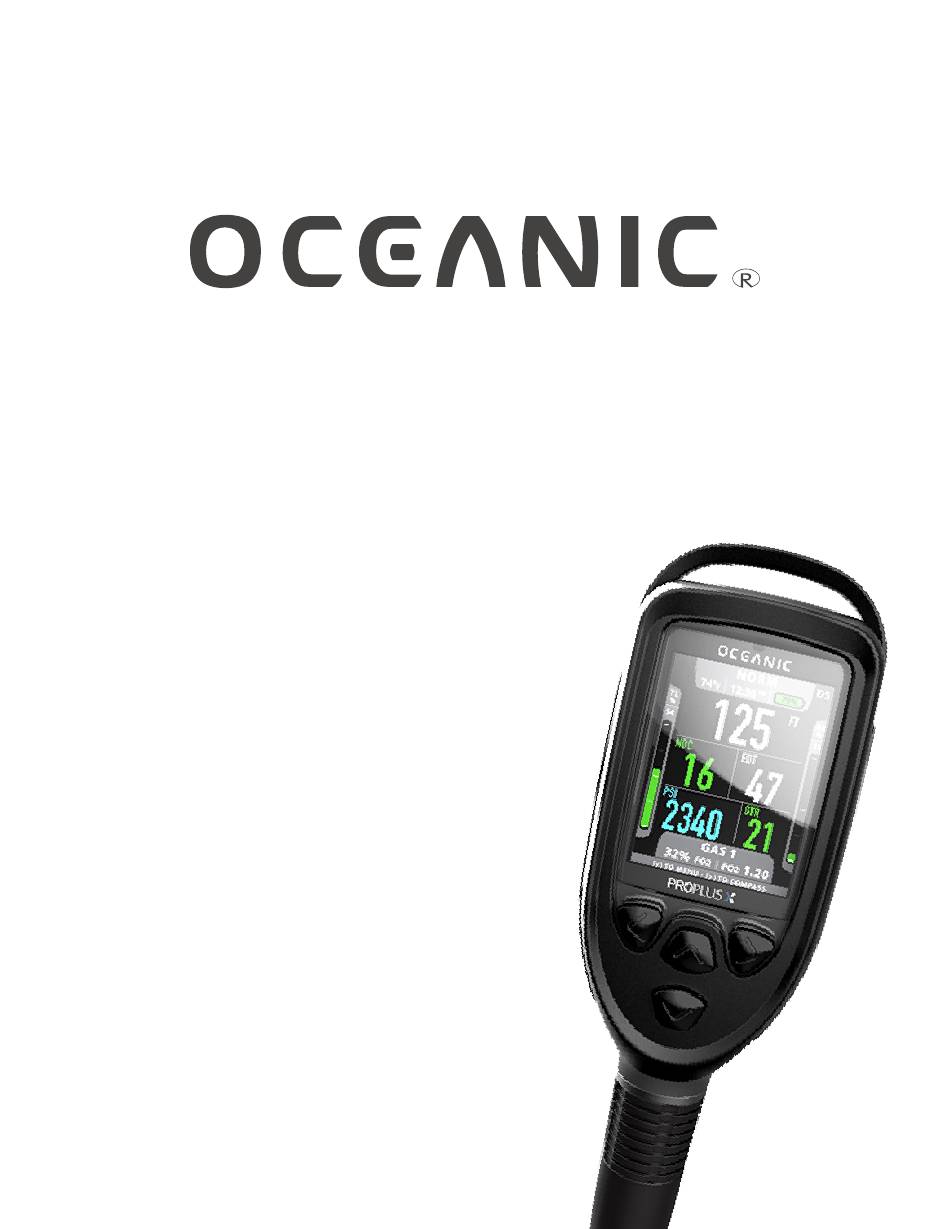

  • Page 1 PROPLUS X BATTERY SERVICE PROCEDURE DOC. 12-7959-r02 (8/19/20)

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION GENERAL PROCEDURES SERVICE TOOLS ASSEMBLY DRAWING DISASSEMBLY REASSEMBLY USA Office 1540 North 2200 West Salt Lake City, Utah 84116 Tel: 888-270-8595 Web: www.OceanicWorldwide.com © Pelagic (2020) Doc. 12-7959-r01 (8/19/20)

  • Page 3: Introduction

    This manual provides step by step instructions for replacing the battery of the Oceanic ProPlus X dive computer. It is CAUTION recommended that all steps are followed in the order given.

  • Page 4: Assembly Drawing

    ASSEMBLY DRAWING ITEM OCEANIC PART DESCRIPTION QTY. BATTERY, PPX O-RING, BATTERY COVER, PPX O-RING PLUG, OVER PRESSURE Battery Kit, PPX (includes items 1-4) 04.6175.97 N/S = Not Shown © Pelagic (2020) Doc. 12-7959-r01 (8/19/20)

  • Page 5: Disassembly

    DO NOT attempt to open the ProPlus X before reading these instructions completely. Fig. 1 NOTE Protect the lens and finish of the ProPlus X by working on a clean padded surface. 1. Unscrew the battery retaining screws by turning counterclockwise (using an allen driver), as shown (Fig. 1).
  • Page 6 4. Remove and discard the battery cover O-ring with a non- marking tool (Fig. 5). Do not use metal tools. 5. Carefully separate the battery contacts with a plastic tool (Fig. 6). Do not bend or damage the battery terminals. 6.

  • Page 7: Reassembly

    To prevent damage resulting from static discharge, the individual and work station must be grounded when handling any electronic components. NOTE Protect the lens and finish of the ProPlus X by working on a clean padded surface. Fig. 1 CAUTION Do not use chemicals or alcohol to clean the plastic parts.
  • Page 8 (Fig. 7, 8). CAUTION The O-ring installs under the over-pressure plug. The plug and O-ring need to be fully seated to maintain water Fig. 5 integrity of the ProPlus X assembly. Fig. 6 Fig. 7 Fig. 8 © Pelagic (2020)
  • Page 9 7. Visually inspect the ProPlus X unit to ensure correct assembly and that there are no gaps between the battery cover and case. Power the unit up and ensure proper operation (Fig. 9). CAUTION Fully charge the battery after assembly and before use.
