ALPHA/NUMERIC DISPLAYS

Depth Displays

During a dive, CurrentDepth and Maximum Depth reached during that
dive are displayed from 0 to 330 feet (99.5 meters) in 1 foot (.5 meter) incre-
ments (Fig. 10 a & b).
During a Decompression Dive, the required Ceiling Stop Depth is displayed
from 60 to 10 feet (20 to 3 meters) in 10 foot (3 meter) increments.
Time Displays (Fig. 10 c & d) are shown in hour:minute format (i.e., 1:02
represents one hour and two minutes, not 102 minutes!). The colon that sepa-
rates hours and minutes blinks once per second when the display is indicating
real time such as elapsed Surface Time, Elapsed Dive Time, or Time of Day.
Dive Time Available, Dive Time Remaining, Decompression Stop Time, Total
Ascent Time required, Time to Fly, or Desaturation Time are calculated pro-
jections of time and use a solid (non-blinking) colon to indicate that they are
counting down, rather than up.
Depth and Time displays will be illustrated and described in more detail as ap-
plicable for each of the operating modes.
Data Plus 2
a
b
FT
FT
MAX
c

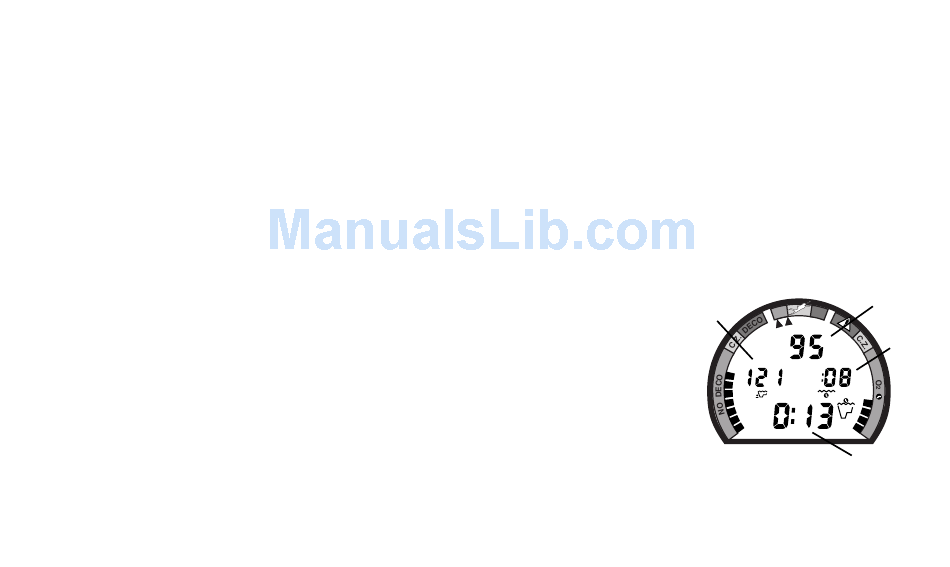

Fig. 10 - Depth & Time
d
9
