Oceanic DataMax Sport Owner's Manual

Dive computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

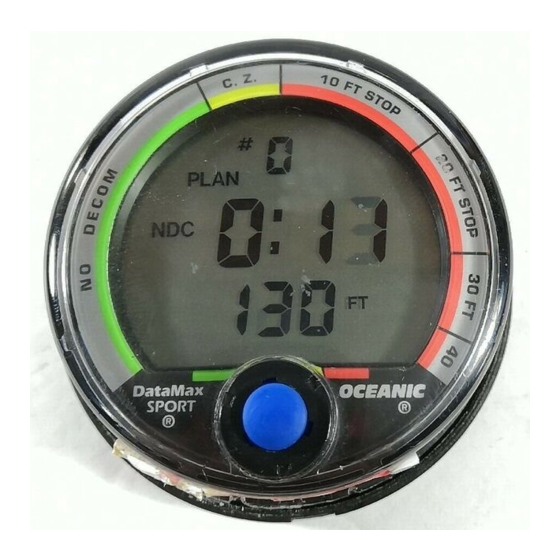

DataMax Sport
owner's guide
(model DRB)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DataMax Sport and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oceanic DataMax Sport

Summary of Contents for Oceanic DataMax Sport

  • Page 1 DataMax Sport owner’s guide (model DRB)
  • Page 2 You must provide a copy of the original sales receipt and a copy of the owner’s portion of the warranty registration card including the annual service record to obtain warranty service. If you try to obtain warranty service for your DataMax Sport but have not sent in the registration within 30 days of purchase date, you will be charged a twenty-five dollar late registration processing fee to reinstate the warranty.

  • Page 3: I. The Datamax Sport Is Easy To Use

    The green, yellow, and red Graphic Diver Interface makes under- standing the DataMax Sport extremely simple. II. DETAILED OPERATION GUIDE Detailed information on every mode and display of the DataMax Sport is contained in this informative section. III. HANDLING THE EXTREMES Review this section carefully to learn how the DataMax Sport manages extreme situations like decompression and deep diving.

  • Page 4: Table Of Contents

    CONTENTS I. THE DATAMAX SPORT IS EASY TO USE ......1 Introduction ......... 2 II. DETAILED OPERATION GUIDE ..........9 HINT: Operational Modes ......10 The Sport At A Glance ....... 24 See the Informational Displays ..... 18 index on page III.

  • Page 5: The Datamax Sport Is Easy To Use

    DATAMAX SPORT IS EASY TO USE...

  • Page 6: Introduction

    INTRODUCTION The DataMax Sport was designed to be extremely easy to use and under- stand. This owner’s guide is divided into five sections designed to make it easy to learn how to use the “Sport.” The first two sections will show you how it performs in most diving situations.
  • Page 7 Mode is displayed for three seconds before switching back to the NDC mode. Fig. 2 – Pre Dive Planning Sequence USING THE “GRAPHIC DIVER INTERFACE” To make it easy to check your dive status on the DataMax Sport, a color- coded system of graphic displays is used. This “Graphic Diver Interface” is...
  • Page 8 made up of two bar graphs that have green, yellow and red markers to indicate normal, caution, and danger zones, respectively. The two graphic displays represent ascent rate and nitrogen loading. When underwater, you can make quick status checks by glancing at the two bar graphs and making sure that they are “in the green.”...
  • Page 9 EMERGENCY DECOMPRESSION If your depth or bottom time is such that the Tissue Loading Bar Graph DataMax enters the red zone, the DataMax Sport will switch to “Decompression Dive ® SPORT ®...
  • Page 10 The longer the surface interval, the more dive time available in the PDPS. IT’S REALLY JUST THAT SIMPLE! The DataMax Sport is designed to help you stay out of trouble with a minimum of effort reading the displays. The Graphic Diver Interface elimi- nates any confusion from looking at too many numbers.
  • Page 11 BOTTOM ing decisions about future dive plans. ALTITUDE DIVING The DataMax Sport automatically compensates for decreased ambient pressure when activated at high altitudes up to 14,000 feet. Its program DataMax contains a high altitude algorithm that reduces no-decompression limits to ®...
  • Page 12 The DataMax Sport follows one of the more conservative of these, cited by Divers Alert Network (DAN); that divers wait at least twelve hours before flying in pressurized commercial aircraft, and at least 24 or more if making repetitive multi-day or decompression dives. The DataMax Sport easily tracks how much surface time has elapsed with the Time to Fly display.

  • Page 13: Detailed Operation Guide

    DETAILED OPERATIONS GUIDE...

  • Page 14: Operational Modes

    During Diagnostic Mode, the DataMax Sport measures its own battery voltage level. If there is not enough battery power to complete a day of diving, the DataMax Sport will either deactivate itself or not activate at all.
  • Page 15 WARNING - If the words “LOW BATT” appear immediately after activation, Oceanic strongly recommends that you DO NOT dive until you have obtained battery replacement - especially if you are starting out on a multi-day dive trip. Although there will usually be...
  • Page 16 WARNING – The Pre Dive Planning Sequence predicts only no- decompression times for subsequent dives. Depending on tank size and air consumption, you may have less time available than shown in the PDPS because of air limitations. PDPS no-decompression times are displayed only for depths where there is at least one minute available.
  • Page 17 Temperature. You can easily tell when you are viewing the Alternate Dive Mode because the Graphic Diver Interface bar graphs, and Dive #, disappear. 6. DECOMPRESSION DIVE MODE The DataMax Sport will allow you to avoid, or easily manage, decompres- sion. Before explaining further, read the following warning. °...
  • Page 18 Still, you must never ascend shallower than your decompression ceiling! Doing so will place the DataMax Sport into a Conditional Violation Mode (see page 28) and greatly increase your risk of decompression sickness. Often while coping with surge and swell, it is difficult to stay at a chosen depth. To ensure that you do not enter a violation mode you should stay close to, but no shallower than, the decompression ceiling depth.
  • Page 19 9. DIVE LOG MODE Dive Log Mode can be accessed on the surface by pressing the button on the front of the DataMax Sport (Fig. 13a). Pressing and releasing the button Fig. 13 – Dive Log Mode will start the Automatic Dive Log Sequence. This mode displays information Primary Screen of up to nine dives from your most recent day of diving.
  • Page 20 When accessing Dive Log Mode, you can choose to either press and release, or press and hold, the button on the face of the DataMax Sport. As mentioned, pressing and releasing the button initiates the Automatic Dive Log Sequence, showing previous dives for about four seconds each.
  • Page 21 ® TELLING THE DIFFERENT MODES APART The DataMax Sport’s ten different modes are easy to tell apart. Each is Fig. 15 – Mode Labels clearly marked with Mode Labels (Fig. 15) and occur at different times. Unless you routinely dive to the extremes, you will rarely see Decompression Dive, Violation, or Gauge Modes.

  • Page 22: Informational Displays

    Time to Fly Modes. Become familiar with all ten modes so that you understand exactly what the DataMax Sport is telling you. INFORMATIONAL DISPLAYS Each DataMax Sport numeric or graphic display represents a unique piece of information. The following section describes each display in detail. Depth Display The lowermost portion of the LCD (Fig.
  • Page 23 ™ Two different bar graphs are located around the perimeter of the DataMax Sport LCD (Fig. 17). They are color coded green, yellow, and red to denote normal, caution and danger zones, respectively. The Graphic Diver Interface allows you to make quick status checks underwater of your no- decompression status and ascent rate.
  • Page 24 - VARI The Variable Ascent Rate Indicator (VARI) occupies the bottom portion of the DataMax Sport display (Fig. 17b). The purpose of the VARI is to assist the diver in preventing too rapid an ascent by providing a visual indication of ascent speed.
  • Page 25 Recreational Dive Planner distributed by PADI. One advantage of using the DataMax Sport is its ability to model many tissue compartments simultaneously. It constantly updates No decompres- sion Time as the controlling tissue changes with different depths. You always have a current prediction of remaining no-decompression time regardless of which compartment is in control.
  • Page 26 FLYING AFTER DIVING In 1990 the Undersea and Hyperbaric Medical Society published a set of guidelines aimed at minimizing the possibility of decompression sickness due to flying too soon after diving. The UHMS suggests divers using standard air tanks and exhibiting no symptoms of decompression sickness wait 24 hours after their last dive to fly in aircraft with cabin pressures up to 8,000 ft.
  • Page 27 DataMax ® SPORT ® Figure 20 on the following page shows all of the DataMax Sport's differ displays "At-A-Glance." For a quick visual reference, or review of display features, refer to these illustrations. Fig. 19 – Time to Fly Display...

  • Page 28: The Sport At A Glance

    ® SPORT ® PLAN BOTTOM SURFACE BOTTOM BOTTOM BATT DataMax DataMax DataMax ® DataMax ® ® SPORT SPORT SPORT ® ® ® ® SPORT ® Decompression Dive TLBG & VARI Delayed Violation Dive Log Fig. 20 –The DataMax Sport At–A–Glance...

  • Page 29: Handling The Extremes

    HANDLING EXTREMES...

  • Page 30: Maximum Depth

    SPORT ® sion diving. On a first “clean” dive, the DataMax Sport will allow a maximum of 7 Fig. 21 – Out of Range display minutes NDC dive time remaining at 160 feet. A clean dive is one where there is no residual nitrogen from previous dives. The DataMax Sport will continue to calculate residual nitrogen for up to 24 hours although the dive counter resets to zero after 12 hours.

  • Page 31: Emergency Decompression

    practical to stay within the 11 minutes of no-decompression time allowed at 130 feet. If you exceed 160 feet, watch the Sport closely because you will enter decompression rapidly. The Tissue Loading Bar Graph will alert you when entering decompression by entering the red zone (Fig. 22) and chang- ing dive time remaining from NDC to DEC.

  • Page 32: Violation Modes

    VIOLATION MODES If you exceed certain limits, the DataMax Sport will not be able to tell you how to get back to the surface. These situations will make the Sport enter violation mode and must be avoided at all costs. They push decompression theory to the limits and can result in loss of some DataMax Sport functions for 24 hours after the last dive of a day in which a violation occurred.
  • Page 33 For every minute in Conditional Violation Mode, 1.5 minutes of penalty time is added to decompression stop time for greater protection. DataMax The DataMax Sport will stay in conditional violation mode for up to five ® SPORT ®...

  • Page 34: Permanent Violations

    24 hours after the last dive. DELAYED VIOLATION MODE When the DataMax Sport enters Delayed Violation Mode it retains the capacity to tell the diver how to get back to the surface. Delayed Violation Mode will be encountered in either of the following decompression situations: DataMax ®...
  • Page 35 After DEC Time reaches zero and the Tissue Loading Bar Graph recedes into the yellow Caution Zone (C.Z.), the diver can surface. However, to add a greater margin of protection, Oceanic strongly recom- mends that you wait until the segments are well within the green No Decom zone, unless a low air condition requires you to surface.
  • Page 36 The DataMax Sport enters Immediate Violation Mode when a situation totally exceeds its capacity to predict an ascent procedure. These dives represent gross excursions into decompression that are beyond the bound- aries and spirit of the DataMax Sport design. If you are following these DataMax ®...

  • Page 37: Gauge Mode

    GAUGE MODE Time to Fly The DataMax Sport will operate with limited functions in what is called “Gauge Mode” up to twenty–four hours after a dive in which any Immediate or Delayed Violation Mode was entered. Gauge Mode turns the DataMax Sport into a digital instrument console without any decompression monitor- ing functions.

  • Page 38: Caution Zone

    Above water, Gauge Mode is indicated by the lack of a Pre Dive Planning Sequence or Time to Fly display. Twelve hours after surfacing, a countdown timer with “triple dash” display will inform you of the number of hours remaining before normal operation can resume (Fig. 27). CAUTION ZONE –...

  • Page 39: What If Your Computer Quits

    If you ever extend your dive profiles to the maximum limit, Oceanic advises you to bring additional back-up instruments with you on your dives, and to log each dive profile during every surface interval.

  • Page 40: Operating Temperature

    Sport and keep it out of the sun. If inadvertently left in the direct view of the sun the LCD display may become totally black. If this occurs, immediately immerse the DataMax Sport in water. The display should recover its normal DataMax ®...

  • Page 41: Night Diving/Sharing

    SHARING THE DATAMAX SPORT The DataMax Sport provides information based upon your personal dive profile and therefore must not be “shared” between divers. You should never, under any circumstances, swap your computer with another unit between dives, or share your computer with another diver underwater.
  • Page 42 (this page intentionally left blank)
  • Page 43 CARE MAINTENANCE...

  • Page 44: Care & Maintenance

    DataMax Sport. The propellants may chemically attack the plastic. BEFORE THE DIVE If diving with a console version of the DataMax Sport, be careful not to leave it lying on a boat deck where it might be damaged. Many dive comput- ers (and dive trips) are ruined by encounters between carelessly tossed computers and weight belts or tanks.

  • Page 45: During/After The Dive

    AFTER THE DIVE Soak the DataMax Sport in fresh water after each dive. If possible, use lukewarm water to dissolve any salt crystals. Salt deposits can also be dissolved using a slightly acidic vinegar/water bath. After removal from a fresh water bath, place the DataMax Sport under gently running water.

  • Page 46: Annual Inspections

    DataMax Sport. Therefore, if you are requesting a depth check, it is best to verify that the test chamber’s gauge is accurate to within plus or minus 1% of full scale.

  • Page 47: Obtaining Factory Service

    Tel: 44-1-404-89-1819; Fax: 44-1-404-89-1909 HOW TO OBTAIN SERVICE Oceanic Diving Australia Pty. Ltd You can obtain service for your DataMax Sport by returning it to the Sorrento, Victoria, Australia Authorized Oceanic Dealer where it was purchased. If one is not nearby, or Tel: 61-3-5984-4770;...

  • Page 48: Low Battery Display

    BATT bring it to your Authorized Oceanic Dealer, where you may also obtain an annual inspection - even if your DataMax Sport is not yet due for one. When- DataMax ever it is necessary to replace your own batteries, however, you may do so by ®...

  • Page 49: Battery Replacement Procedure

    2. Verify that your DataMax Sport contains user replaceable batteries by examining the caseback to find the battery hatch (Fig. 33a). WARNING - Older models of the DataMax Sport do not contain user Fig. 33 – DRB battery hatch replaceable batteries, and must be returned to Oceanic for battery service.
  • Page 50 If found, return your DataMax Sport to your Authorized Oceanic Dealer or Oceanic Parts & Service, and DO NOT attempt to use until it has received service. You may otherwise proceed to the next step.
  • Page 51 (bending) or breakage. Also, look for any signs of corrosion which may indicate the entrance of moisture into the unit. If found, return your DataMax Sport to your Authorized Oceanic Dealer or Oceanic Parts & Service, and DO NOT attempt to use until it has received service.
  • Page 52 2. Examine the LCD display to ensure it is consistently clear and sharp in contrast throughout the screen. If there are any portions of the display missing or appearing dim, return the unit to your Authorized Oceanic Dealer to receive factory service.

  • Page 53: Reference

    REFERENCE...

  • Page 54: Multiple Tissue Tracking

    Dive Log. REPETITIVE DECOMPRESSION DIVING Fig. 34 – Think of the 12 tissues The decompression model used by the DataMax Sport is based on the no- as overlaid clear displays decompression multi-level repetitive dive schedules successfully tested by Dr.
  • Page 55 24 (twenty-four) hours. WARNING – Using the DataMax Sport, just as using the U.S. Navy (or other) No-decompression Tables, is no guarantee of avoiding decompression sickness, i.e. “the bends.”...

  • Page 56: No-Decompression Limits

    U.S. Navy limits at left (Fig. 36). You will notice that at all but three – – depths, the DataMax Sport allows less time than the U.S. Navy Tables. – – Though the DataMax Sport no-decompression limits may be less than the U.S.
  • Page 57 60 ft. 60 ft. LEGEND: WARNING No-decom limit Violation Immediate violation 80 ft. 80 ft. The DataMax Sport may allow dive profiles deeper or longer than 100 ft. Decompression Delayed violation 100 ft. shown for emergency purposes only. Oceanic 120 ft.
  • Page 58 DECOMPRESSION VIOLATION LIMITS As described on pages 28 – 33, the DataMax Sport has two permanent violation modes that will result in the loss of some computer functions if entered. These are termed, Delayed and Immediate Violation Modes. Figure 38 shows a chart which details where those limits occur on extreme dive profiles between 160 and 190 feet on a first dive.
  • Page 59 NOTES...

  • Page 60: Specifications

    SPECIFICATIONS NO-DECOMPRESSION MODEL Numeric Displays Range Resolution Basis • Dive Number 0 – 9 dives 1 dive • Modified Haldanean Algorithm • Depth 0 – 249 feet (0 – 76 meter) 1 foot (.5 meter) • 12 tissue compartments • Maximum Depth 249 feet (76 meters) 1 foot (.5 meter) Data Base...
  • Page 61 Reactivation required. Dive Log Mode • DataMax Sport cannot be shut off manually • Stores 9 dives in period up to 12 hours after last dive • If more than 9 dives, stores latest dive in memory, deletes first dive Display Specifications •...

  • Page 62: Quiz

    DO YOU REALLY KNOW HOW TO USE THE DATAMAX SPORT? Test your knowledge of how to operate the DataMax Sport by checking true ( T) or false ( F) in pencil. An- swers are found on the bottom of the next page and in the owner’s guide on the pages listed in parentheses.
  • Page 63 A special display will tell you when the DataMax Sport’s battery is low. (pg. 44) NOTE – If you don’t understand any part of this manual or how to operate the DataMax Sport, con- tact your local Authorized Oceanic Sales & Service Center before attempting to dive. Oceanic wants you to enjoy your DataMax Sport to the fullest.

  • Page 64: Oceanic Divelog

    160 ft. 2. Sketch dive plan with dotted line. 3. Draw actual dive profile using solid line. Vis in feet or meters Visibility 4. Fill-in Dive Log readings on DataMax Sport 180 ft. Why you’re there display (as shown). Purpose 200 ft.
  • Page 65 DiveLog ® 0 ft. BOTTOM 20 ft. 40 ft. 60 ft. DataMax ® SPORT ® 80 ft. TODAY CUMULATIVE 100 ft. Dive No. 120 ft. Dive Site 140 ft. Location Date 160 ft. PROFILE: Visibility PDPS 180 ft. PLAN Purpose ACTUAL 200 ft.

  • Page 66: Glossary

    DataMax Sport. Algorithm - A step-by-step mathematical formula designed to accomplish a particular result (i.e. Dive Time Remaining in the DataMax Sport) Altitude Dive - A dive made at an elevation above sea level where a differ-...
  • Page 67 ™ Graphic Diver Interface - A feature of Oceanic dive computers. Easily understandable color coded bar graphs that indicate diver status; green = normal, yellow = caution, red = danger. LCD - Abbreviation for liquid crystal display, an easily viewed low voltage...
  • Page 68 Modular Dive Computer - A dive computer that is not connected to the diver’s air supply Multiplexing Display - A display on an instrument that alternates to show different information relating to separate events Multi-level Dive - A type of dive profile where the diver spends various times at different depths (opposite of a “Square Wave”...
  • Page 69 VARI - Abbreviation for Variable Ascent Rate Indicator ™ Variable Ascent Rate Indicator - A display on the DataMax Sport that shows ascent rate as a bar graph alongside a color–coded indicator (part of the Graphic Diver Interface)

  • Page 70: Index

    INDEX Ceiling 4 Diagnostic Mode 10 Clean dive 12 Displays 18 Computer Accuracy 57 Failure 35 Activation 2, 10 Accuracy 57 Modes 24, 56 Depth 18 Activation 2, 57 Sharing 37 Dive Counter 57 Accidental underwater 10 Conditional Violation Mode 28 Dive time remaining 20 How to 10 Graphic Diver Interface 3, 56...
  • Page 71 Modes Obtaining Service ii Alternate dive 3, 12 Oceanic DiveLog Gauge mode 15, 33 Decompression dive 13 Blank page for duplication 61 Glossary 62 Diagnostic 10 Instructions 60 Graphic Diver Interface 3, 56 Dive log 6, 55 Off-gassing 29 Tissue Loading Bar Graph 19...
  • Page 72 Immediate 32 Permanent 30 Tables, U.S. Navy 52 Temperature Test 58 Warnings Testing depth accuracy 42 Decompression sickness 51 Time to Fly 7, 16 Depth sensor damage 41, 43 Tissue Compartment 20 Don’t decompression dive 13, 19 Tissue half-times 50, 56 Improper use 2 Tissue Loading Bar PDPS 12...

  • Page 73: Annual Inspection Record

    DATAMAX SPORT ANNUAL INSPECTION RECORD THE CODE OF THE RESPONSIBLE DIVER: Serial Number _______________ AS A RESPONSIBLE DIVER Date of purchase _____________ I UNDERSTAND AND ASSUME THE RISKS I MAY ENCOUNTER WHILE DIVING Purchased from ______________ To be filled in below by Authorized Dealer: RESPONSIBLE DIVING BEGINS WITH: •...
  • Page 74 DATAMAX SPORT ANNUAL INSPECTION RECORD To be filled in below by Authorized Dealer: Date Dealer Name & Number Technician Name DECOMPRESSION RULES ARE NOT MEANT TO BE BENT Responsible...

  • Page 75: Responsible Computer Diving

    RESPONSIBLE COMPUTER DIVING • Always Make Your Deepest Dive First • Always Make The Deepest Part Of Every Dive, First • Check Your Computer Often • Do A Safety Stop On Every Dive • Adequate Surface Interval Between Each Dive •...
  • Page 76 OCEANIC USA 2002 Davis Street San Leandro, Ca. 94577 Phone: 510/562-0500 Fax: 510/569-5404 Web: http://www.oceanicusa.com © 2002 Design 1999 Doc. No. 12-1868,R1 (4/99)
