flash. When the Required Stop Depth indicates 50 FT/ 15 M, 40 FT/ 12 M, 30
ft/ 9 M, 20 FT/ 6 M, then 10 FT/ 3 M, you can ascend to, but no shallower than
those depths and continue decompressing.
The Data Plus 2 cannot accurately calculate decompression times for Stop
Depths much greater than 60FT (18M) and offers no indication of how much
time spent underwater would result in the need for greater than a 60 FT (18
M) decompression stop depth.
3. You descend deeper than 330 feet (99.5 meters).
deeper than 330 feet (99.5 meters), the Tissue Loading Bar Graph will flash
and the Current Depth and Maximum Depth displays will only indicate (Fig.
60) 3 dashes (- - -) until ascent is made to a depth shallower than 330 feet (99.5
meters), at which time the Current Depth display will be restored. Max Depth
will continue to display 3 dashes.

IMMEDIATE VIOLATION MODE

Five minutes after reaching the surface from a dive in which a Delayed Viola-
tion occurred, the Data Plus 2 will enter an Immediate Violation Mode.
If a ceiling much greater than 60FT (18M) is required, an Immediate Violation
Mode (Fig. 61) will be entered. This situation would be preceded by entering
Delayed Violation Mode, previously described. The Data Plus 2 would then

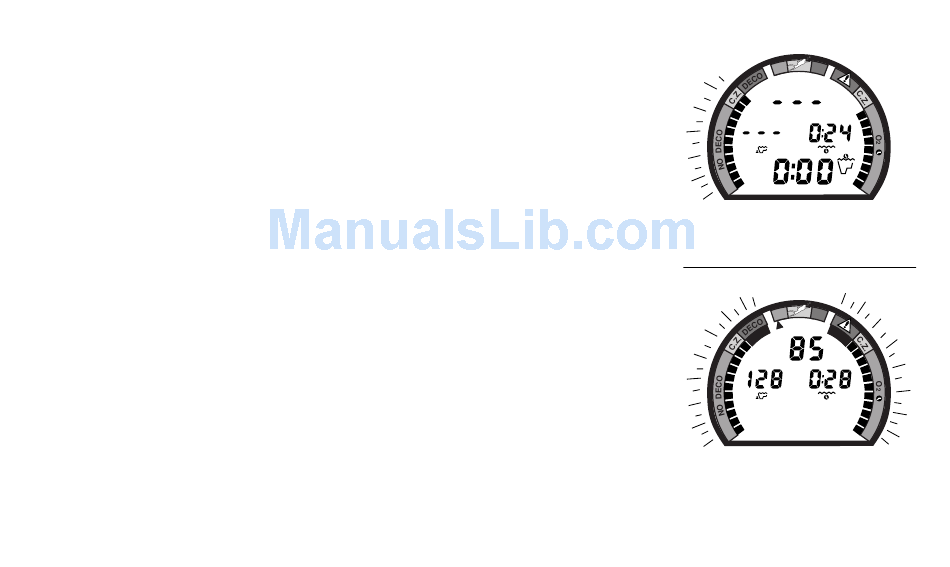

Fig. 60 - Delayed Violation
Upon descending
Fig. 61 - Immediate Violation
Data Plus 2
FT
FT
MAX
(deeper than 330ft/99.5m)
FT
FT
MAX
(Alternate set OFF)
51
