4.1 Intercom Setup

4.1.1 VoIP Intercom Connections

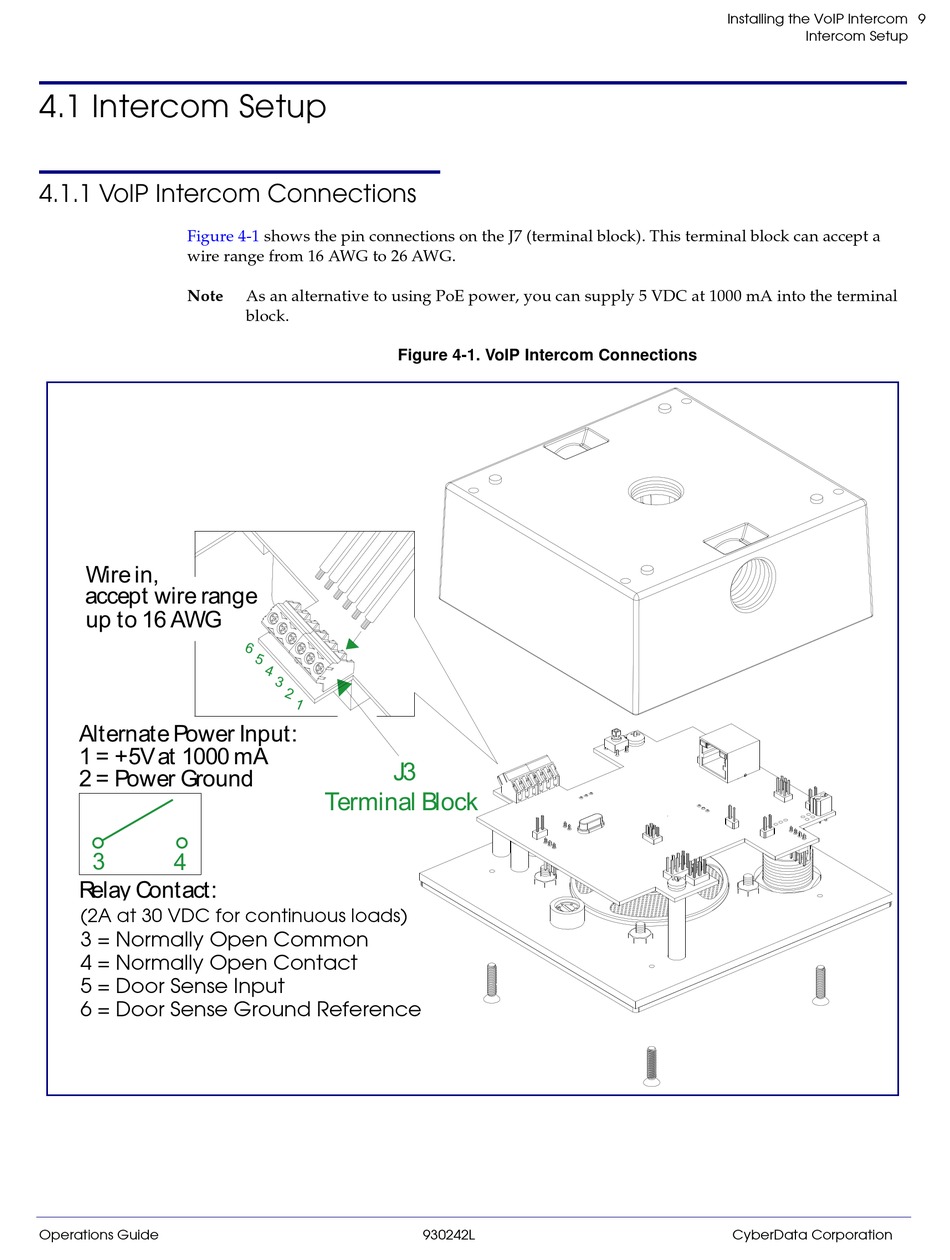

Figure 4-1
wire range from 16 AWG to 26 AWG.
Note
Wire in,
accept wire range
up to 16 AWG
Alternate Power Input:
1 = +5V at 1000 mA
2 = Power Ground
3 4
Relay Contact:
(2A at 30 VDCor 0.4A at 125 VAC
(2A at 30 VDC for continuous loads)
for continuous loads)
3 = Normally Open Common
3 = Normally Open Common
4 = Normally Open Contact
4 = Normally Open Contact
5 = Door Sense Input
5 = Door Sense Input
6 = Door Sense Ground Reference
6 = Door Sense Ground Reference
Operations Guide
shows the pin connections on the J7 (terminal block). This terminal block can accept a
As an alternative to using PoE power, you can supply 5 VDC at 1000 mA into the terminal
block.
Figure 4-1. VoIP Intercom Connections
J3
Terminal Block
930242L
Installing the VoIP Intercom
Intercom Setup
