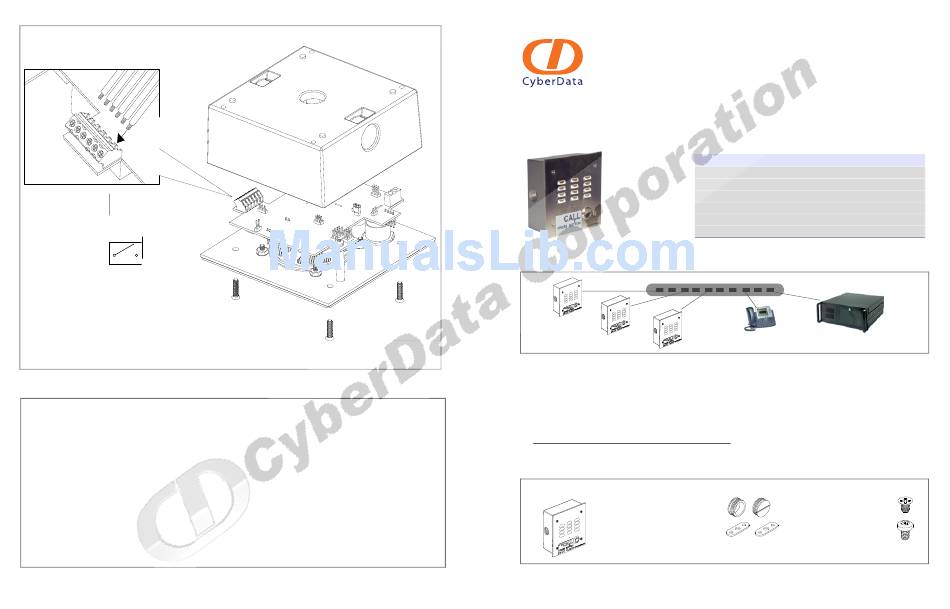

CyberData VoIP Intercom 010935B Installation Quick Reference

Intercom Connections
Wire in,
accept wire range
6
from 16-26 AWG
5
4
3
2
1
J3 - Terminal Block
-
Alternate Power Input:
1 = +5V at 1000 mA
2 = Power Ground
3 4
Relay Contact:
(2A at 30 VDC or 0.4A at 125 VAC
for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
V2 Hardware
Contacting CyberData
Corporate Headquarters
CyberData Corporation
2555 Garden Road
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
www.CyberData.net
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Email: support@CyberData.net
RMA Dept: (831) 373-2601 ext. 136
Email: RMA@CyberData.net
© 2008, CyberData Corporation, ALL RIGHTS RESERVED
Warranty
CyberData warrants its product against defects in material and
workmanship for a period of two years from the date of purchase.
Should the product fail within the warranty period, CyberData will
repair or replace the product free of charge. This warranty includes all
parts and labor. Should the product fail out-of-warranty, a flat rate
repair charge of one half the purchase price will be assessed. Repair
costs for products that are in warranty, but damaged by improper
modifications or abuse, are charged at the out-of-warranty rate.
Products returned to CyberData, both in and out-of-warranty, are
shipped to CyberData at the customer's expense. Charges for
shipping repaired products to the customer are paid by CyberData.
For product service, contact the Returned Materials Authorization
(RMA) department. A product will not be accepted for return without
an approved RMA number. Send the product, in its original package,
to: CyberData Corporation, 2555 Garden Road, Monterey, CA 93940,
Attention: RMA "your RMA number"
930180E Quick Reference
Installation Quick Reference
VoIP Intercom
SiP Compliant
010935B
The Voice-over-IP (VoIP) Intercom is a SIP endpoint designed to provide VoIP phone connectivity in a tamper proof and
secure package.
Parameter
IP Addressing
IP Address
Web Access Username
Web Access Password
Subnet Mask
Default Gateway
Typical Intercom System Installation
802.3af Compliant Ethernet Hub
VoIP Intercoms
Getting Started
Download the VoIP Intercom Operations Guide, a PDF file, at: http://www.cyberdata.net/support/voip/intercom.html or
●
go to www.CyberData.net- >Support->Drivers, Utilities, & Manuals-> Product Drivers & Documentation page-
>VoIP Intercom.
● Create a plan for the locations of your Intercoms.
● Prior to installation, consult local building and electrical code requirements.
● WARNING: This enclosure is not rated for any AC voltages!
Intercom Parts
(1) Intercom Assembly
(1) Wall Mounting Kit
(2) Outlet box plugs
(2) Flush mounting plate
Quick Reference
Factory Default Setting
static
192.168.3.10
admin
admin
255.255.255.0
192.168.3.1
VoIP Phone SIP Server
(2) 8-32 x 1/4" Flat head
phillips machine screw
(1) 10-24 x 5/16" Pan head
phillips machine screw
