Table 14 Advanced Low End Troubleshooting (continued)
Step Symptom/Condition
You must hard reset the server
blade to clear the fatal condition
and boot the OS.

Troubleshooting Tools

The HP Integrity BL860c server blade uses LEDs and other tools to help troubleshoot problems that
occur in the server blade.

Front Panel LEDs

The front panel of the server blade contains the unit identifier (UID) LED, server health LED, internal
health LED, and the network interface controller (NIC) LEDs.
locations.
Server blades use flashing states (amber or red) on these LEDs to indicate a warning or an error.
There are a total of seven buttons, arranged vertically (when the server blade is installed in the
enclosure).
The BMC controls the server health LED, blade hardware controls the power LED. Both BMC and
iLO 2 MP code determine the state of the health LED.

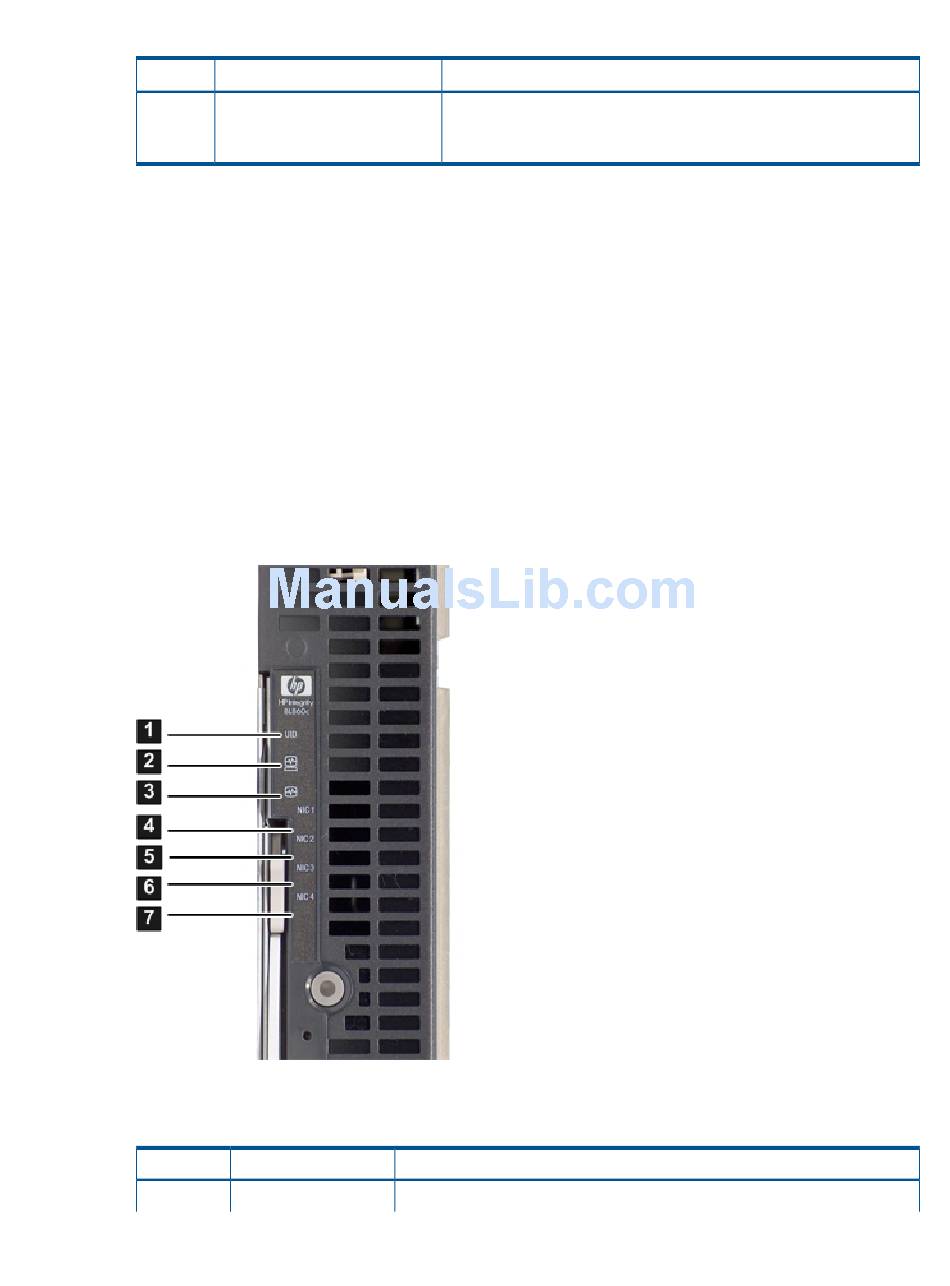

Figure 33 Server Blade Front Panel LEDs
Table 15 details the functions of the front panel LEDs.
Table 15 Server Blade Front Panel LEDs
Item LED Description
1 Unit Identification (UID)
Action
Preceding problem is fixed when the MCA does not repeat.
Status
Steady Blue = Flagged
Figure 33 shows the front panel LED
Troubleshooting Tools 91
