Internal Health LED

The internal health LED indicates the internal health of the server blade. If the LED is red, the server
blade needs attention. Examine the event logs (on iLO 2 MP) for details of the problem.
details the states of the internal health LEDs.
Table 18 Internal Health LED States
LED
Green
Amber
Flashing red
Off

NIC LEDs

Table 19 shows the NIC LED status on the server blade.
Table 19 NIC LEDs
LEDs
Steady green
Flashing green
Off

SAS Disk Drive LEDs

The two SAS disk drives on the server blade have identical LEDs that show the drive status.
shows the location drive LEDs.

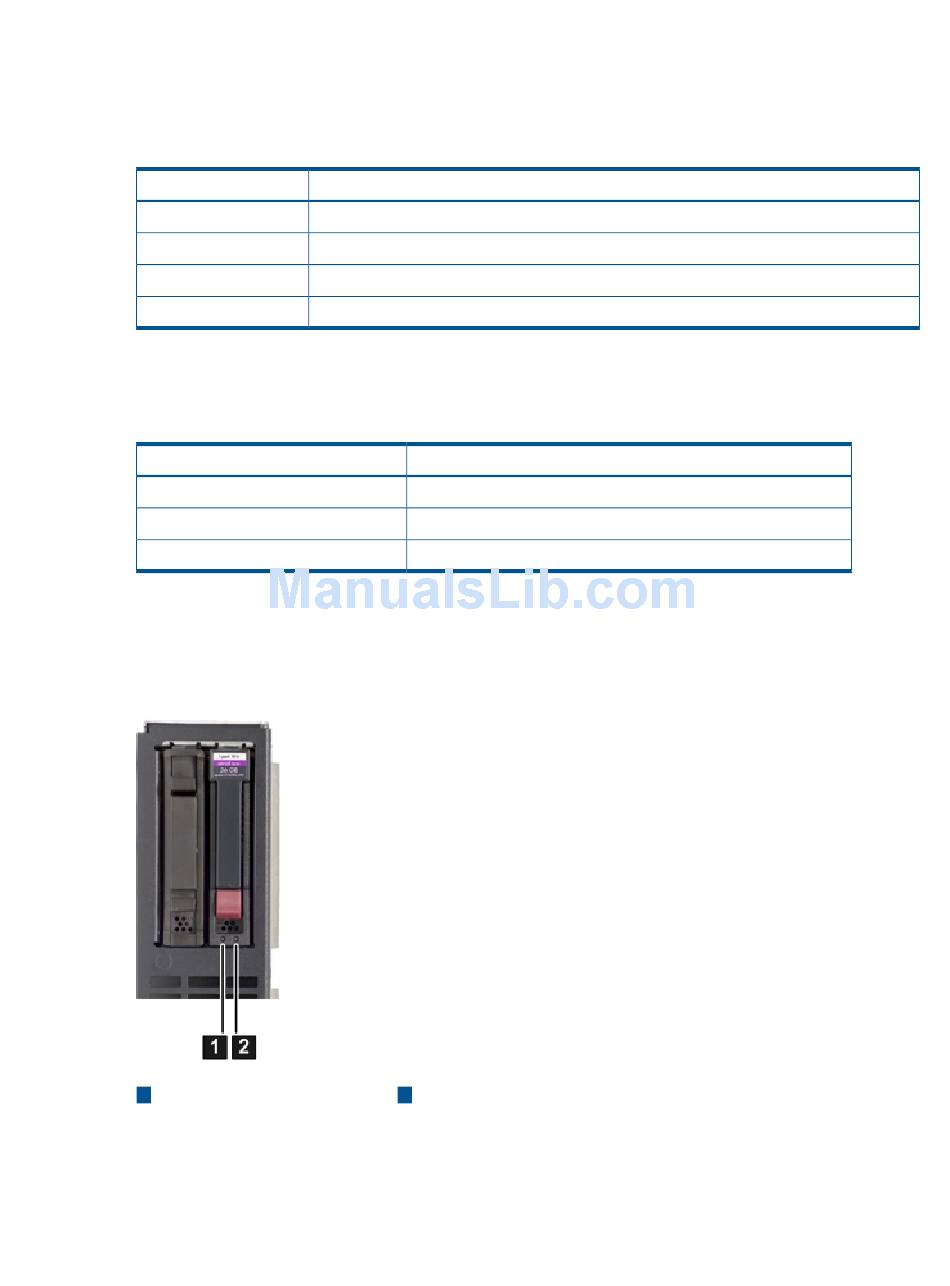

Figure 34 SAS Disk Drive LEDs
Activity LED
1
Table 20 details the functions of the hard disk drive LEDs.
Status
Server is on and health is good
Server degraded, check System Event Log
Critical internal error, check System Event Log
Server is off, and health last known state is good
Status
NIC is connected to the network
Network activity
No network activity
Status LED
2
Table 18
Figure 34
Troubleshooting Tools 93
