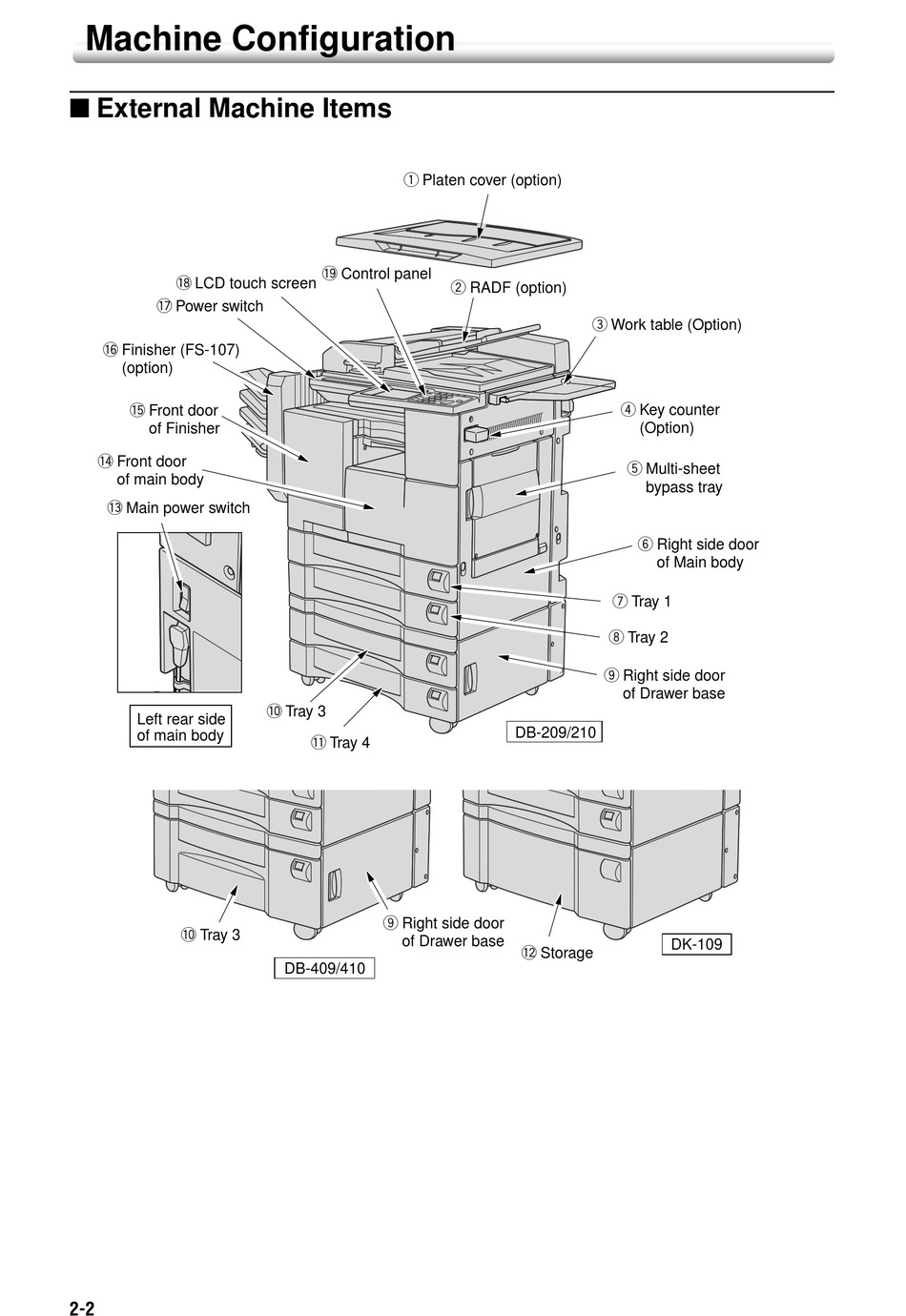

Machine Configuration

I External Machine Items
!8 LCD touch screen
!7 Power switch
!6 Finisher (FS-107)
(option)
!5 Front door
of Finisher
!4 Front door
of main body
!3 Main power switch
Left rear side
of main body
!0 Tray 3
2-2
q Platen cover (option)
!9 Control panel
!0 Tray 3
!1 Tray 4
o Right side door
of Drawer base
DB-409/410
w RADF (option)
e Work table (Option)
r Key counter
u Tray 1
i Tray 2
o Right side door
DB-209/210
!2 Storage
(Option)
t Multi-sheet
bypass tray
y Right side door
of Main body
of Drawer base
DK-109
