Connect the CAT5 cable

Make sure the CAT5 cable has been installed in accordance with the "Preparation for Installation"
instructions on page 3. Connect the CAT5 cable to the "Cat 5" port on the Remote Unit. (See Fig. 11.)
When properly inserted the CAT5 cable end should snap into place.
Note: If an RJ45 wall outlet is being used, connect
the other end of the extension cable to the RJ45 wall
outlet.
!
WARNING: Never connect the XTENDEX
to an ethernet card, ethernet router, hub or switch or
other ethernet RJ45 connector of an ethernet device.
Damage to devices connected to the ethernet may result.

Plug-in and Boot Up

1. Plug the power cord from the monitor into the power outlet.
Connect each AC adapter power connector to the 9VDC ports on the Remote and Local Units
2.
power outlet. The yellow LED on the RJ45 connector of both the Remote and Local Units should illuminate, indicating that a
proper power connection has been made to them.
Green Traffic LED
3. Turn ON the CPU and Monitor.
Note: The green LED on each RJ45 connector will illuminate anytime data traffic is passing between the Local and
Remote Units, indicating proper CAT5 cable connection and communication. (See Fig. 12)

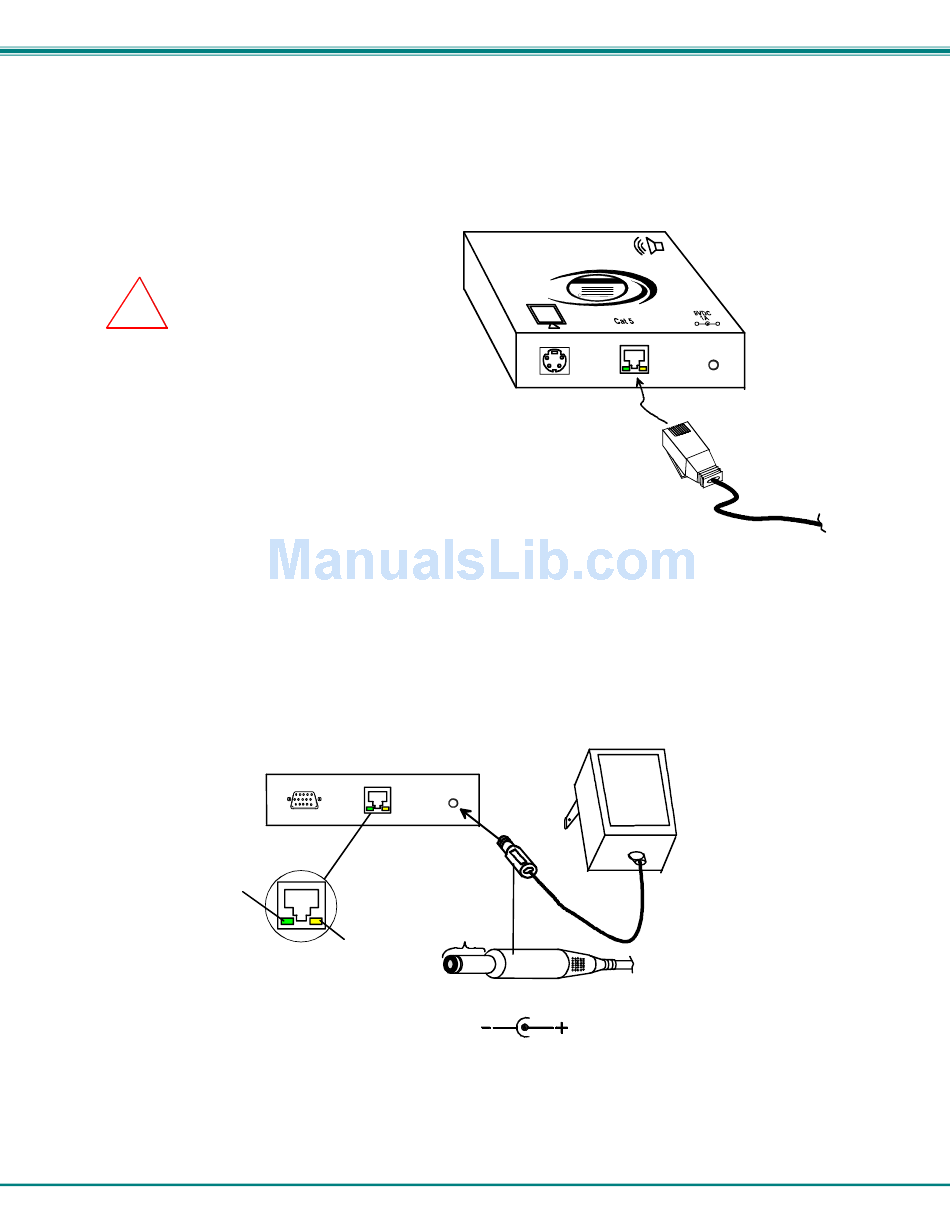

Figure 11- Connect the CAT5 cable to the Remote Unit

(See Fig. 12.)
Rear View of Remote Unit
Barrel
Yellow Power LED
(Outside
barrel)

Figure 12- Connect the AC adapter to the Remote Unit

They should each react as if they were directly connected to each other.
Rear View of Remote Unit
XTENDEX
Inc Technologies Network
NTI
R
9 VDC
Adapter
ADAPTER
Power Connector
9VDC @ 1.0A OUTPUT
(Inside
barrel)
2.1 mm x 5.5 mm Female
12
-
+
CAT5 Cable to
Local Unit
Plug each AC adapter into a
