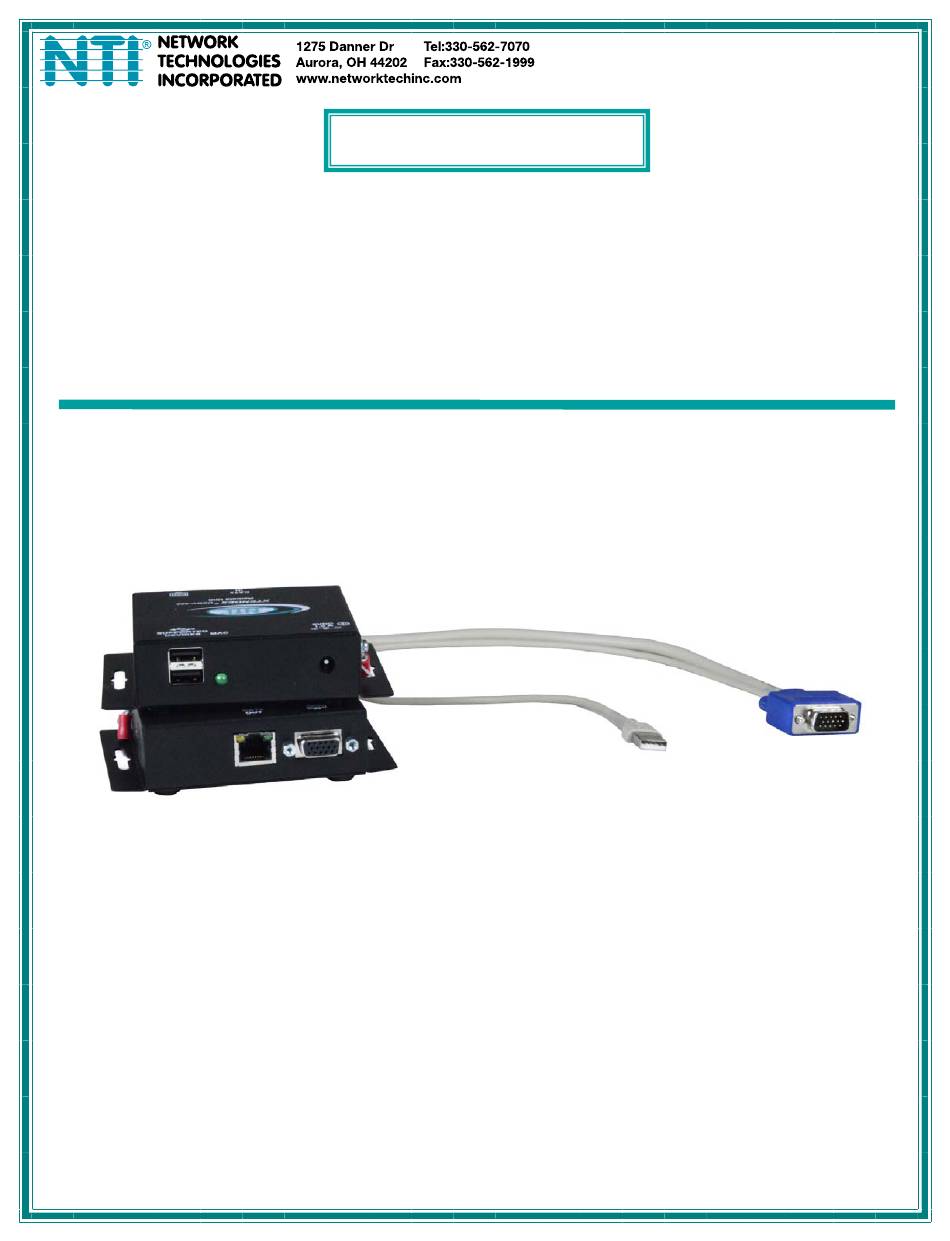

- Page 1 ® XTENDEX Series ST-C5USBV-300 ST-C5USBVA-300 300 FOOT USB KVM EXTENDER Installation and Operation Manual ST-C5USBV-300 MAN010 Rev 12/5/18...
- Page 2 Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
Table of Contents Introduction..................................1 Features..................................1 Types of User Input Devices Supported:........................1 Operating Systems Supported ............................ 1 Limitations..................................2 Materials ..................................3 Features and Functions..............................4 Preparation for Installation............................5 Installation..................................6 The Local Unit................................6 Connect to the CPU ..............................6 Connect the Local Devices ............................ -
Page 4: Introduction
The ST-C5USBV-300 USB Extender (XTENDEX) is designed to enable the relocation of a monitor, USB keyboard, and USB mouse from a USB CPU or NTI USB KVM switch by as much as 300 feet via CAT5 cable in addition to having a monitor, USB keyboard, and USB mouse connected locally. -
Page 5: Limitations
The XTENDEX can be used between two cascaded NTI switches, but the master switch in the configuration will not be able to list the CPUs connected to the extended slave. The OSD menu in the extended slave would have to be used to monitor CPUs connected to it. -
Page 6: Materials
CAT6 unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru- pin 1 to pin 1, etc. (see pg. 16 for proper EIA/TIA 568B wiring method) Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-742-8324 (800-RGB-TECH) in US & Canada or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com... -
Page 7: Features And Functions
FEATURES AND FUNCTIONS LABEL CONNECTOR/LED DESCRIPTION AUDIO OUT Audio Jack for connecting to remote speakers (models with audio support only) CAT5 RJ45 Connector for connection of CAT5 cable between Local Unit and Remote Unit none Green LED illuminates when power has been supplied to the unit none Yellow LED blinks when there is valid communication between the Local and... -
Page 8: Preparation For Installation
Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. -
Page 9: Installation
Note: If a SUN CPU is being connected, depending upon the video connector of the SUN CPU, it may be necessary to attach an NTI #13W3M-15HDF (SUN video port-to-VGA adapter) to the video port on the CPU first, and then connect the video cable to the adapter. -
Page 10: Connect The Local Devices
Connect the Local Devices If desired, connect the local user devices to the Local Unit as shown in Figure 2. Connect a USB keyboard and mouse to the USB type A female connectors on the Local Unit. Connect a monitor to the 15HD female connector on the Local Unit. Figure 2- Connect local user devices to the Local Unit If the Local Unit has audio support (ST-C5USBVA-300) , connect the cable from the local self-powered stereo speakers to the 3.5mm stereo audio “AUDIO OUT”... -
Page 11: Connect The Cat5 Cable
Connect the CAT5 Cable Connect the CAT5 cable to the “CATx OUT” port on the rear of the Local Unit (see Figure 4). (If an RJ45 wall outlet is being used, connect the other end of the extension cable to it.) When properly inserted the cable end should snap into place. -
Page 12: The Remote Unit
The Remote Unit Connect the Remote Devices Position the Remote Unit such that the CAT5 cable, the monitor cable, the keyboard and mouse, and the AC adapter power connector can each reach the Remote Unit comfortably. Connect the monitor cable to the 15HD female VIDEO port on the front of the Remote Unit. (See Figure 5) Connect the devices to the Remote Unit. -
Page 13: Connect The Cat5 Cable
If the Remote Unit has audio support (ST-C5USBVA-300), connect the cable from the remote self-powered stereo speakers to the 3.5mm stereo audio “AUDIO OUT” jack on the Remote Unit. (See Figure 6) Figure 6- Connect remote self-powered speakers to Remote Unit Connect the CAT5 cable Connect the CAT5 cable to the “CAT5”... -
Page 14: Command Mode
COMMAND MODE The XTENDEX has two areas of user control that can be used as needed. The user can adjust video quality (described below), or enable/disable MAC mode (see page 12) These controls are accessed by entering Command Mode. To enter Command Mode, simultaneously press the left and right <Shift> keys on the keyboard connected to the Remote Unit. -
Page 15: Mac Mode
MAC Mode MAC Mode enables the user to connect the Local Unit to a MAC CPU. MAC Mode configures the Local Unit for passing mouse information to the MAC CPU. This is useful when the user wants to use mouse drivers provided by the mouse vendor, which allows the use of programmable functions for each mouse button. -
Page 16: Ddc Support
DDC SUPPORT DDC support allows the CPU to detect the video capability of your monitor by transferring EDID data from your monitor to the CPU. If the same make and model monitor is used at the Local and Remote unit, then DDC information can be updated either using Command Mode from the Remote Unit keyboard or from the “DDC Update”... -
Page 17: Common Applications
COMMON APPLICATIONS Figure 11 (below) illustrates three common applications for the ST-C5USBV-300 USB KVM Extender. USBVEXT-xx-MM Existing Local Unit Cable Existing Local Unit Cable NTI USB Multi-Scan Multi-Scan ST-C5USBV-300 ST-C5USBV-300 Monitor Monitor LOCAL UNIT LOCAL UNIT SWITCH (UNIMUX-xU) Existing Local Unit Cable... -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Maximum Resolution w/ CAT5/5e/6 UTP 1024 x 768 @ 60Hz- up to 300 feet (refresh frequency 60Hz) 1600 x 1200 @ 60Hz- up to 150 feet 1920 x 1440 @ 60 Hz- up to 100 feet Maximum Resolution w/ CAT5/5e STP 1024 x 768 @ 60Hz- up to 300 feet (refresh frequency 60Hz) 1280 x 1024 @ 60Hz- up to 150 feet... -
Page 19: Interconnection Cable Wiring Method
(View looking into RJ45 female) Figure 11- Pin positions in female RJ45 connector Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. WARNING: Outdoor or underground runs of CAT5 cable could be dangerous and will void the warranty. -
Page 20: Keyboard Translation
KEYBOARD TRANSLATION Key Equivalents Using the chart below, find the character needed to be typed on the CPU being accessed, then follow the row across for the equivalent on the keyboard being used. (See Figure 12 on page 18 for reference.) USB 101 WINxx (Apple USB) -
Page 21: Figure 19- Keyboard Layouts
Backspace Lock Enter Caps Lock Shift Shift Enter Ctrl Ctrl Typical 101 Keyboard Print Scroll Screen Pause Lock SysRq Break Backspace Lock Enter Caps Lock Shift Shift Enter Ctrl Ctrl Windows Logo Key Application Key Windows Logo Key Windows USB Keyboard CD Eject lock delete... -
Page 22: Troubleshooting
TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. If the answer is not found in the chart, a solution may be found in the knowledgebase on our website at http://information.networktechinc.com/jive/kbindex.jspa... -
Page 23: Index
A return authorization number is required for all repairs/returns. Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
