Installing The Remote Unit (models with VGA video connectors)

Position the Remote Unit such that the CAT5 cable, the monitor cable, device cables, and the AC
adapter power connector can each reach the Remote Unit without putting strain on the cables.
Connect the monitor cable to the female 15HD video connector on the Remote Unit.
Connect the device(s) to the Remote Unit (see Fig. 8)(KVM models only).
a. Connect the keyboard to the purple female 6 pin miniDIN connector on the Remote Unit.
b. Connect the mouse to the green female 6 pin miniDIN connector on the Remote Unit.
If the Remote Unit has RS232 support, connect the remote user's RS232 cable from a touch
screen monitor to the 9D male port on the Remote Unit.
5. If the Remote Unit has audio support, connect the cable from the remote speakers to the 3.5mm
stereo audio jack on the Remote Unit. (See Fig. 9)
9D Male
RS232 Connector
-

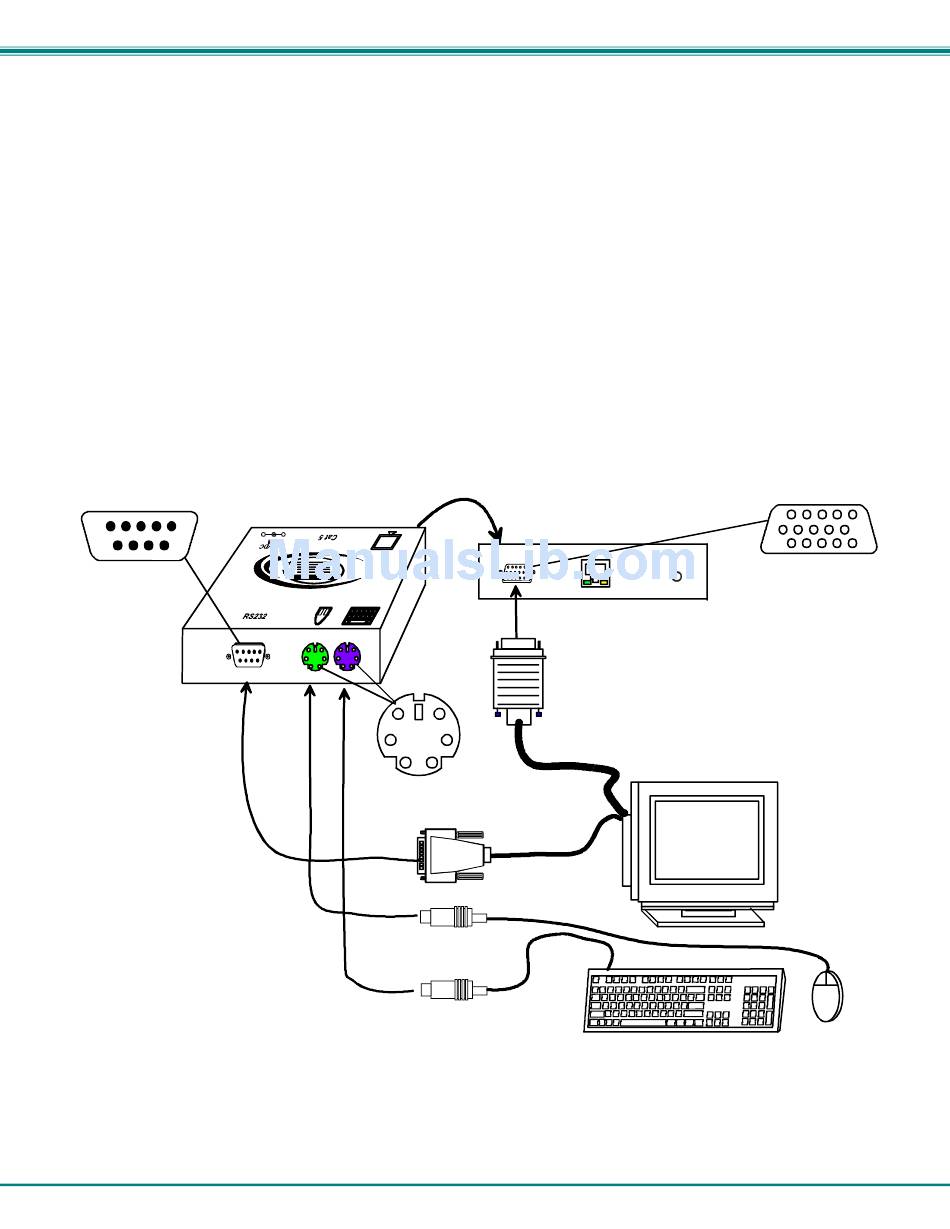

Figure 8- Connect the Extended Components to the Remote Unit

ST-C5KVMRS-600 Remote Unit (Front and Rear View)
Front View of
Remote Unit
+
NTI
R
Network Technologies Inc
XTENDEX
6 pin miniDIN
Female Connector
Rear View of Remote Unit
PS/2 KEYBOARD
Remote User's Keyboard, Monitor, and Mouse
10
15HD Female
Video Connector
VGA
Multi-Scan
Monitor
PS/2 MOUSE
