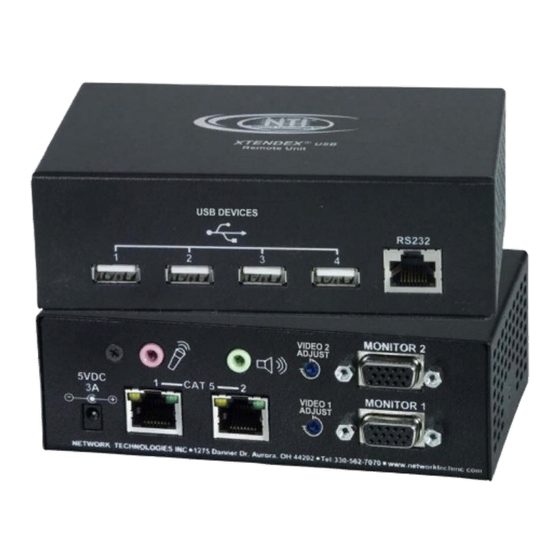

- Page 1 ® XTENDEX Series ST-C5USBVT ST-C5USB2VT ST-C5USB2V2ARST 200 Foot USB, VGA Video, and Audio Extender Installation and Operation Manual Front and Rear View of ST-C5USB2V2ARST-Remote Unit MAN006 Rev Date 1/28/2013...
- Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Features and Functions..............................3 Limitations ..................................4 Preparation for Installation .............................. 4 Installation ..................................5 Installing The Local Unit .............................. 5 Units with 2-Way Audio and RS232 Support......................6 Connect Local Monitor(s)............................6 Installing the Remote Unit............................ -
Page 4: Introduction
Video quality adjustment for different lengths of CAT5/5e/6/7 cable is done manually • Optional dual video and dual video + two-way audio support (speakers and microphone)+RS232 support Models Available: Model VGA Monitor 2-Way Audio and Power Supply Support RS232 Support ST-C5USBVT 1 (Remote Only) ST-C5USB2VT Dual Video ST-C5USB2V2ARST Dual Video... -
Page 5: Materials
CAT5/5e/6/7 unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru- pin 1 to pin 1, etc. (see page 10 for proper EIA/TIA 568 B wiring method and resolution/distance chart) Cables can be purchased from Network Technologies Inc by calling (800) 742-8324 (800-RGB-TECH) in the US and Canada or (330) 562-7070 (worldwide). -
Page 6: Features And Functions
NTI XTENDEX USB AND VGA VIDEO EXTENDER FEATURES AND FUNCTIONS Front View of ST-C5USB2V2ARST Remote Unit Front View of ST-C5USB2V2ARST Local Unit VIDEO 2 MONITOR 2 MONITOR 2 ADJUST 5VDC 5VDC CAT 5 CAT 5 MONITOR 1 VIDEO 1 MONITOR 1... -
Page 7: Limitations
NTI XTENDEX USB AND VGA VIDEO EXTENDER LIMITATIONS For models with RS232 support: • The RS232 port supports all baud rates up to 57.6K bits per second and the attached CPU must be configured accordingly. For models with 2-way audio support: •... -
Page 8: Installation
NTI XTENDEX USB AND VGA VIDEO EXTENDER INSTALLATION Installing The Local Unit 1. Connect cables from the Local Unit to the back of the CPU. (See Figure 1.) Connect the blue 15HD male cable end of the VEXT-3 (supplied) to the VGA port on the back of the CPU. -
Page 9: Units With 2-Way Audio And Rs232 Support
NTI XTENDEX USB AND VGA VIDEO EXTENDER Units with 2-Way Audio and RS232 Support The ST-C5USB2V2ARST includes support for 2-way audio and RS232. Optionally, make the connections at the Local Unit as follows: 1. Connect an SA-3-MM stereo audio cable (supplied) between the pink “CPU” connector on the Local Unit and the “line in”... -
Page 10: Installing The Remote Unit
Installing the Remote Unit Connect cables from the Remote Unit to the extended devices as shown below. (Some features may not be applicable to the model you have. See chart on page 1.) Rear View of ST-C5USB2V2ARST Remote Unit USB DEVICES RS232... -
Page 11: Connect The Catx Cable
If your model has two “CAT5” ports, be sure to connect the cables to the same numbered ports at each end (connect port 1 at the Local to port 1 at the Remote, and port 2 to port 2). Front View of ST-C5USB2V2ARST Local Unit Front View of ST-C5USB2V2ARST Remote Unit... -
Page 12: Ddc
(such that horizontal lines appear to trail or shadow at the edge of an open window). A very small amount of rotation will make a minor change in the image. Ultimately, the image quality should improve to a satisfactory level. Front View of ST-C5USB2V2ARST Remote Unit Note: The “VIDEO VIDEO 2... -
Page 13: Interconnection Cable Wiring Method
NTI XTENDEX USB AND VGA VIDEO EXTENDER INTERCONNECTION CABLE WIRING METHOD The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below. Pair 3 Pair 2 Pair 1... -
Page 14: Technical Specifications
ST-C5USBVT) Operating temperature 32°F to 122°F (0°C to 50°C) Storage temperature -20°F to 140°F (-30°C to 60°C) Operating and Storage Relative Humidity 0 to 90% non-condensing RH Size (In.) WxDxH ST-C5USBVT 5.1x3.1x1.2 ST-C5USB2VT and ST-C5USB2V2ARST 5.1x3.1x1.7 Regulatory Approvals RoHS, CE... -
Page 15: Troubleshooting
NTI XTENDEX USB AND VGA VIDEO EXTENDER TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. -
Page 16: Warranty Information
NTI XTENDEX USB AND VGA VIDEO EXTENDER WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for information regarding repairs and/or returns.
