Summary of Contents for NTI XTENDEX Series ST-C5RS-LCRS232
- Page 1 ® XTENDEX Series ST-C5RS-LC RS232 EXTENDER Installation and Operation Manual ST-C5RS-LC RS232 Extender Man249 Rev. 9/25/15...
- Page 2 Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. WARNING: Outdoor or underground runs of CATX cable could be dangerous and will void the warranty.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features and Functions..............................2 Limitations ..................................3 Preparation for Installation............................3 Installation..................................4 Cable Connections ..............................4 Plug-in and Boot Up..............................5 DIN Rail Mounting................................ 6 Technical Specifications .............................. 7 Interconnection Cable Wiring Method ........................7 Warranty Information .............................. -
Page 4: Introduction
Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-RGB-TECH (800-742-8324) in US & Canada or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com and we will be happy to be of assistance. -
Page 5: Features And Functions

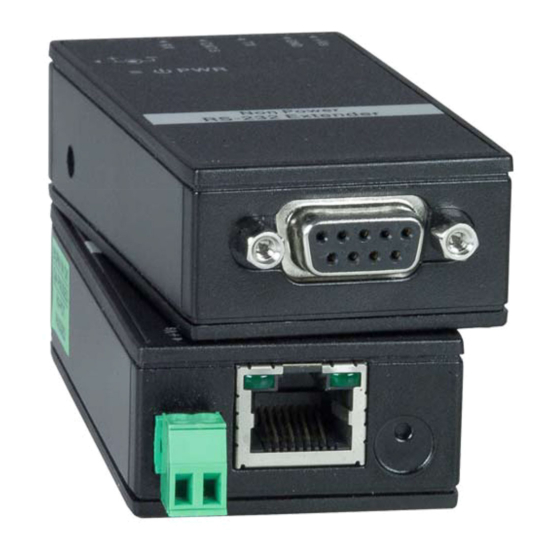

NTI XTENDEX RS232 Extender FEATURES AND FUNCTIONS (ON SIDE) Green “Tx” LED- flashes when data is being transferred Yellow “Rx” LED- flashes when data is being received CAT5- RJ45 female- for connecting the CAT5e/6/7 cable Terminal Block- for connecting 9-30VDC power supply if required (optional- sold separately) RS232 Connector- 9D female- for connecting to the RS232 port on the CPU (Master Unit) or serial device (Slave Unit) PWR- connection jack for an AC adapter (3.5x1.3mm DC Plug)- another alternate power connection method... -
Page 6: Limitations
Master and Slave units should be grounded through either a serial device or CPU that uses a 3-prong power cord. If only one unit is grounded, shielded CAT5 cable should be used. Note: CATX connection cable used between NTI XTENDEX Series Master and Slave or any XTENDEX Series products should not be run underground, outdoors or between buildings. -
Page 7: Installation
NTI XTENDEX RS232 Extender INSTALLATION Cable Connections 1. Connect a DINT-xx cable (9DB male to 9DB female wired straight through, pin-to-pin) cable between the DB9 connector on the Master (see label on back of extender) and the serial port on the back of the CPU (or other serial controlling device). -
Page 8: Plug-In And Boot Up
If insufficient power is provided by the connection to the CPU or the serial device, the red power LED will not illuminate. In this case, an external power supply (9-30VDC) will need to be connected (sold separately- contact NTI). Figure 4- Connect optional power supply... -
Page 9: Din Rail Mounting
NTI XTENDEX RS232 Extender DIN Rail Mounting The extenders can be easily DIN rail mounted with the provided DIN rail mounting clips. Connect the clip to the extender using the two holes on the back of the extender (screws are provided). -
Page 10: Technical Specifications
NTI XTENDEX RS232 Extender TECHNICAL SPECIFICATIONS RS232 Connectors 9DB female RS232 Baud Rate 115,200 to 3935 feet (1200 meters) 921,600 to 328 feet (100 meters) RS232 Compatibility RXD,TXD,RTS,CTS Communication Mode Full Duplex Data RS232 protocols supported Interconnect Cable CAT5e/6/7 straight through cable for EIA/TIA 568 B wiring terminated w/ male... -
Page 11: Warranty Information
A return authorization number is required for all repairs/returns. Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
