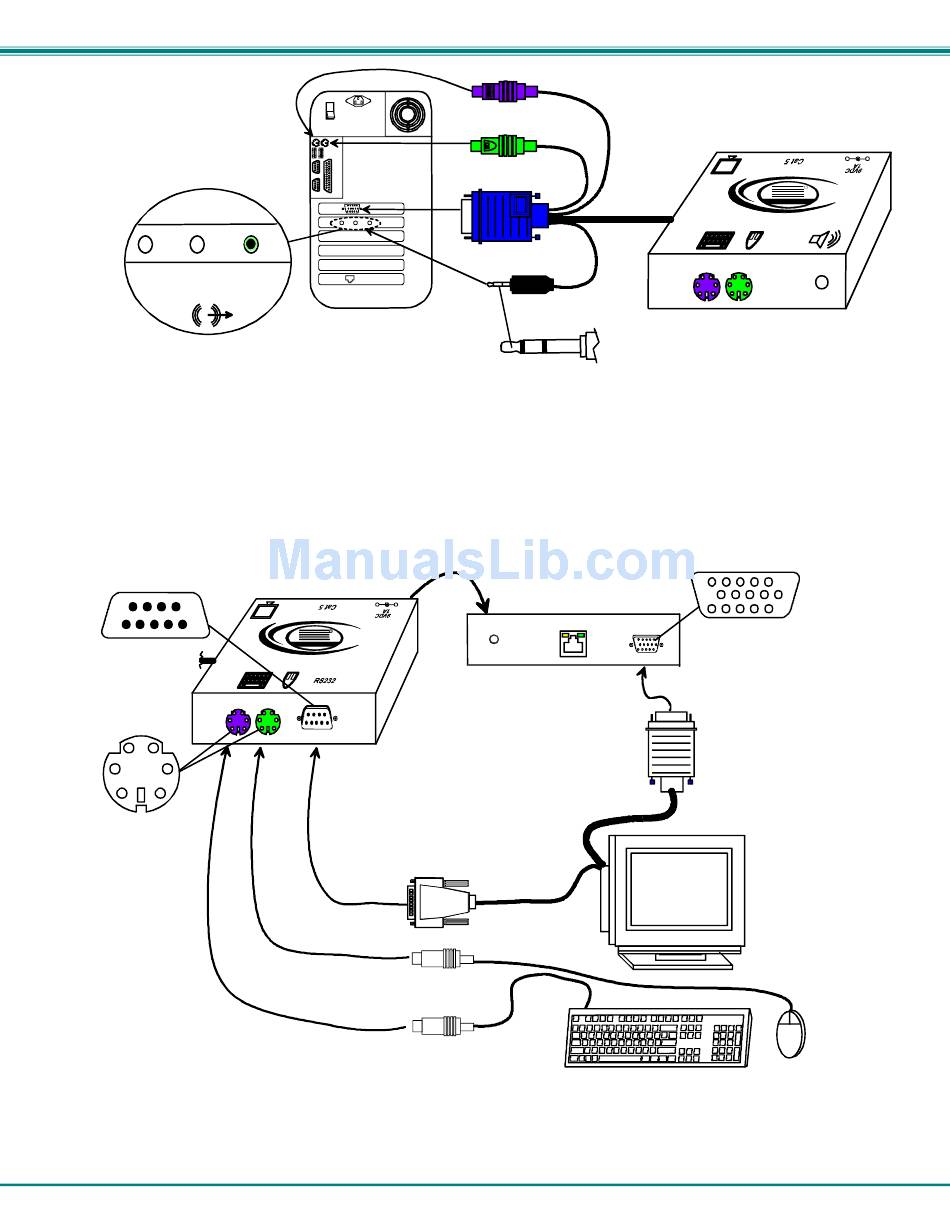

Figure 2- Connect the Local Unit with Audio support to the CPU

2. Make connections for a local user (see Fig. 3)
a) Connect the cable from the local user's VGA monitor to the female 15HD port on the Local Unit.
b) Connect the local user's keyboard to the purple 6 pin miniDIN female port on the Local Unit.
c) Connect the local user's mouse to the green 6 pin miniDIN female port on the Local Unit.
9D Male
RS232 Connector
6 pin miniDIN
Female Connector

Figure 3- Connect the local user to the XTENDEX Local Unit

(PURPLE-KEYBOARD)
PS/2 CPU
ST-C5KVMRS-600 Local Unit (Front and Rear View)
Front View of
Local Unit
-
+
NTI
R
Network Technologies Inc
XTENDEX
(GREEN-MOUSE)
(BLUE- VIDEO)
(BLACK- AUDIO)
ST-C5KVMA-600 Local Unit
3.5mm Stereo Plug
Rear View of Local Unit
Multi-Scan
Touch-screen
PS/2 KEYBOARD
Local User's Keyboard, Monitor, and Mouse
7
NTI
R
Network Technologies Inc
XTENDEX
(Front View)
15HD Female
Video Connector
VGA
Monitor
PS/2 MOUSE
- +
