Summary of Contents for NTI Xtendex ST-C5USBVT

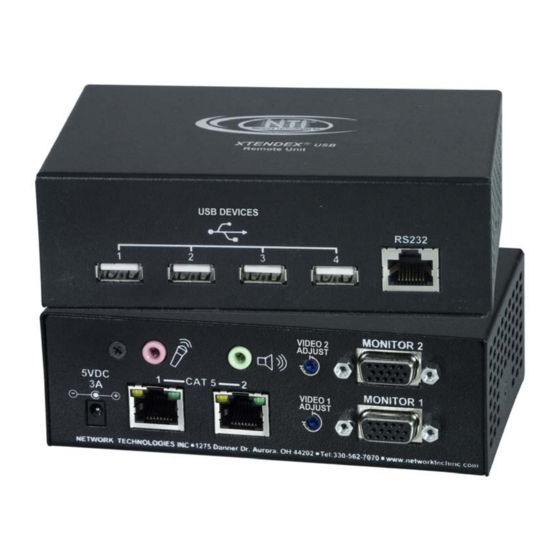

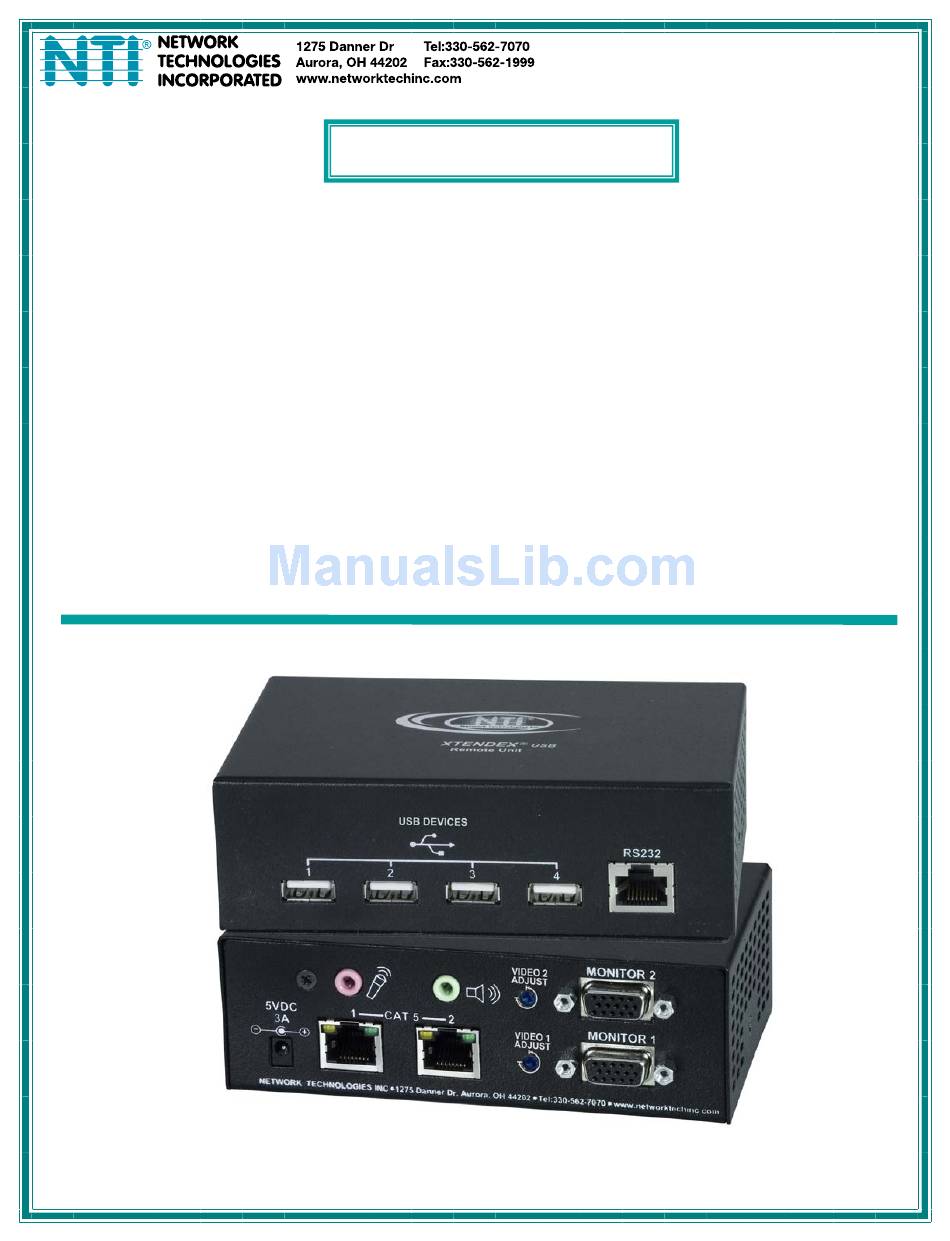

- Page 1 ® XTENDEX Series ST-C5USBVT ST-C5USB2VT ST-C5USB2V2ARST 200 Foot USB, VGA Video, and Audio Extender Installation and Operation Manual Front and Rear View of ST-C5USB2V2ARST-Remote Unit MAN006 Rev Date 8/17/2014...
- Page 2 Note: CAT5/5e/6/7 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Features and Functions..............................3 Limitations ..................................4 Preparation for Installation .............................. 4 Installation ..................................5 Installing The Local Unit .............................. 5 Units with 2-Way Audio and RS232 Support......................6 Connect Local Monitor(s)............................6 Installing the Remote Unit............................ -
Page 4: Introduction
Optional dual video and dual video + two-way audio support (speakers and microphone)+RS232 support • Operating temperature range of 32 to 122°F (0 to 50°C) (models ST-C5USB(2)V(2ARS)T) • Optional industrial rated model with operating temperature range of 32 to 158°F (0 to 70°C) (ST-C5USBVT-IND) Models Available: Model VGA Monitor... -
Page 5: Materials
NTI XTENDEX USB AND VGA VIDEO EXTENDER MATERIALS Materials Included with this kit: NTI XTENDEX Local and Remote Unit 1 or 2- 100VAC to 240VAC at 50 or 60Hz-5VDC/3.0A AC Adapter (see chart on page 1) -OR- 1 or 2- 100VAC to 240VAC at 50 or 60Hz-5VDC/6.0A AC Adapter (-IND model) -
Page 6: Features And Functions
Audio Jack- pink 3.5mm stereo audio jack- for connecting to remote microphone (models with audio support only) 5VDC- 3.0A- connection jack for the AC adapter CAT 5- RJ45 females- for connecting the CAT 5 cables (only 1 on ST-C5USBVT model) 4a. Green LED- power indicator- illuminates when power has been supplied to the unit 4b. -
Page 7: Limitations
Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. -
Page 8: Installation
NTI XTENDEX USB AND VGA VIDEO EXTENDER INSTALLATION Installing The Local Unit 1. Connect cables from the Local Unit to the back of the CPU. (See Figure 1.) Connect the blue 15HD male cable end of the VEXT-3 (supplied) to the VGA port on the back of the CPU. -
Page 9: Units With 2-Way Audio And Rs232 Support
NTI XTENDEX USB AND VGA VIDEO EXTENDER Units with 2-Way Audio and RS232 Support The ST-C5USB2V2ARST includes support for 2-way audio and RS232. Optionally, make the connections at the Local Unit as follows: 1. Connect an SA-3-MM stereo audio cable (supplied) between the pink “CPU” connector on the Local Unit and the “line in”... -
Page 10: Installing The Remote Unit
NTI XTENDEX USB AND VGA VIDEO EXTENDER Installing the Remote Unit Connect cables from the Remote Unit to the extended devices as shown below. (Some features may not be applicable to the model you have. See chart on page 1.) -
Page 11: Connect The Catx Cable
Plug the power cord from each monitor into a power outlet. Connect each AC adapter power connector to the 5VDC ports on the Remote and Local Units. (Model ST-C5USBVT only has a power supply at the Remote Unit. The Local Unit is powered by the CPU.) Plug each AC adapter into a power outlet. -
Page 12: Ddc
NTI XTENDEX USB AND VGA VIDEO EXTENDER The XTENDEX provides DDC emulation on the Local unit so that the CPU is able to receive EDID data about the monitor it connects to whether the monitor is connected to the XTENDEX or not. On models with dual video support, each video channel (MONITOR1 and MONITOR2) has its own memory to store EDID data. -
Page 13: Interconnection Cable Wiring Method
NTI XTENDEX USB AND VGA VIDEO EXTENDER INTERCONNECTION CABLE WIRING METHOD The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below. -
Page 14: Technical Specifications
Remote and Local Unit Power 100V to 240V at 50 or 60Hz-5VDC/3.0A via AC adapters (2)- except only 1 for ST-C5USBVT ST-C5USBVT-IND - 100V to 240V at 50 or 60Hz-5VDC/6.0A via AC adapter • Operating temperature 32°F to 122°F (0°C to 50°C) (ST-C5USB(2)V(2ARS)T) •... -
Page 15: Troubleshooting
Power supply is not connected or Make sure outlet is live and AC adapter(s) is plugged-in. • green power LED does not plugged-in. For ST-C5USBVT, make sure USB cable is fully inserted illuminate on both ends. • Make sure 5VDC jack is fully connected •... -
Page 16: Warranty Information
NTI XTENDEX USB AND VGA VIDEO EXTENDER WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
