- Page 1 NETWORK TECHNOLOGIES INCORPORATED ST-C5USBV-300 ST-C5USBVA-300 300 FOOT USB KVM EXTENDER Installation and Operation Manual 1275 Danner Dr Tel:330-562-7070 Aurora, OH 44202 Fax:330-562-1999 www.networktechinc.com ® XTENDEX Series MAN010 Rev 12/4/07...
- Page 2 TRADEMARK XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2007 by Network Technologies Inc, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
Figure 8- Connect CAT5 cable to the Remote Unit... 9 Figure 9- Connect AC adapters ... 9 Figure 10- MAC LED... 11 Figure 11- Examples of common applications for the ST-C5USBV-300 USB KVM Extender... 12 Figure 12- Pin positions in female RJ45 connector... 14 Figure 13- Keyboard Layouts... 16... -
Page 4: Introduction

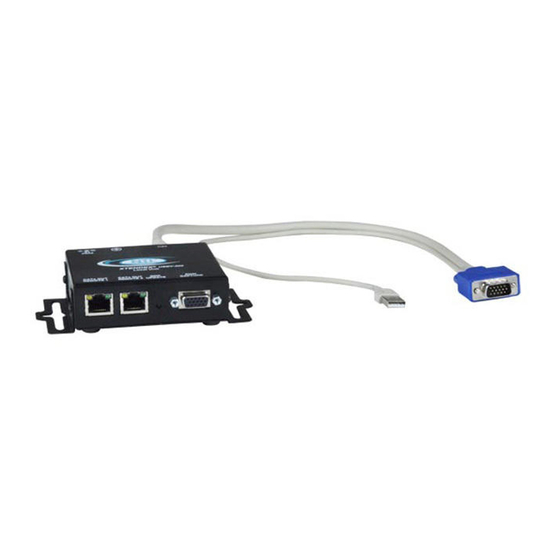

The ST-C5USBV-300 USB Extender (XTENDEX) is designed to enable the relocation of a monitor, USB keyboard, and USB mouse from a USB CPU or NTI USB KVM switch by as much as 300 feet via CAT5 cable in addition to having a monitor, USB keyboard, and USB mouse connected locally. -
Page 5: Limitations
• The XTENDEX can be used between two cascaded NTI switches, but the master switch in the configuration will not be able to list the CPUs connected to the extended slave. The OSD menu in the extended slave would have to be used to monitor CPUs connected to it. -
Page 6: Features And Functions
FEATURES AND FUNCTIONS XTENDEX (Front View) Network Technologies Inc XTENDEX (Front View) ST-C5USBVA-300 (Local Unit) Audio Jack - 3.5mm stereo audio jack- for connecting to remote speakers (ST-C5USBVA-300 only) CAT5 - RJ45 female for connection of CAT5 cable between Local Unit and Remote Unit 2a. -
Page 7: Preparation For Installation
PREPARATION FOR INSTALLATION • A location should be chosen for the monitor, mouse, and keyboard that also has space to mount the Remote Unit within the distance provided by the cables from the monitor, mouse, and keyboard. cables required. If a local user will be connected, a proper location must be chosen for these devices too. •... -
Page 8: Installation
The "line out" jack is typically lime green and may be marked with this symbol The "spkr" jack is typically orange, and may be marked with this symbol The "headphones" jack may be marked with this symbol (BLUE- VIDEO) Sun 13W3 Video Connector Network Technologies Inc XTENDEX (Rear View) ST-C5USBV-300 Local Unit... -
Page 9: Connect The Local Devices
If desired, connect the local user devices to the Local Unit as shown in Fig. 3. Connect a USB keyboard and mouse to the USB type A female connectors on the Local Unit. Connect a monitor to the 15HD female connector on the Local Unit. ST-C5USBV-300 (Local Unit) (Front View) Network Technologies Inc... -
Page 10: Connect The Cat5 Cable
Connect the USB mouse cable (or wireless adapter) to the remaining USB Type A female port on the back of the Remote Unit. Network Technologies Inc XTENDEX (Front View) Self-Powered Stereo Speakers ST-C5USBV-300 (Local Unit) (Front View) CAT5 Cable to Remote Figure 5- Connect the CAT5 cable to the Local Unit Network Technologies Inc XTENDEX... -
Page 11: Figure 6- Connect The Monitor And Devices To The Remote Unit
ST-C5USBV-300 Remote Unit Yellow Communication LED USB Type A Female (Front View) (Rear View) Green Power LED XTENDEX Network Technologies Inc Technologies Network XTENDEX 15HD Female Video Connector CAT5 Cable to Local Unit USB Type A male USB Type A... -
Page 12: Connect The Cat5 Cable
When properly inserted the cable end should snap into place. WARNING: Never connect the ST-C5USBV-300 Extender to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. -
Page 13: Command Mode
Note: The video quality adjustment procedure can only be performed from the keyboard connected to the Remote Unit. The user can adjust video quality (described These controls are accessed by entering Command Mode. (ST-C5USBVA-300 only) (ST-C5USBV-300 only) It may be necessary to enter Command Mode (described above) and press... -
Page 14: Mac Mode
DDC information allows the CPU to automatically detect the video capability of your monitor. The DDC information is updated automatically at initial power-ON of the ST-C5USBV-300 Extender or whenever a different monitor is connected to the Extender. DDC is only supported for the monitor connected to the Local Extender and it is recommended that the monitor connected to the remote be the same model. -
Page 15: Common Applications
COMMON APPLICATIONS Figure 11 (below) illustrates three common applications for the ST-C5USBV-300 USB KVM Extender. Existing Local Unit Cable Multi-Scan ST-C5USBV-300 Monitor LOCAL UNIT USB Mouse USB Keyboard Local User CAT5 Cable ST-C5USBV-300 REMOTE UNIT Multi-Scan Monitor USB Mouse USB Keyboard... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS Maximum Resolution w/ CAT5/5e UTP (refresh frequency 60Hz) Maximum Resolution w/ CAT5/5e STP Or CAT6 UTP (refresh frequency 60Hz) Video Compatibility Video Quality Video Coupling Video Connectors Sync Types Supported Video Signal Type Maximum Input/Output Levels Input / Output Impedance Input Horizontal Frequency Range Input Vertical Frequency Range Keyboard/Mouse Connectors... -
Page 17: Interconnection Cable Wiring Method
INTERCONNECTION CABLE WIRING METHOD The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568B industry standard. Wiring is as per the table and drawing below. Wire Color White/Orange Orange White/Green Blue... -
Page 18: Keyboard Translation
KEYBOARD TRANSLATION Key Equivalents Using the chart below, find the character needed to be typed on the CPU being accessed, then follow the row across for the equivalent on the keyboard being used. (See Fig. 13 on page 16 for reference.) USB 101 WINxx L-Ctrl... -
Page 19: Figure 13- Keyboard Layouts
Caps Lock Shift Ctrl Typical 101 Keyboard Caps Lock Shift Ctrl Windows Logo Key caps Lock shift control option Command Key Apple Pro USB Keyboard Help Again Stop Props Undo Control Front Copy Shift Open Paste Capslock Find Meta Key SUN USB Keyboard Figure 13- Keyboard Layouts Backspace... -
Page 20: Troubleshooting
User is trying to access Command Command Mode Mode from the devices connected to the Local Unit Mouse is not working ST-C5USBV-300 is not operating in MAC as configured when mode connected to a MAC If problems are experienced while installing Solution •... -
Page 21: Index
INDEX CAT5 Cable Spec, 14 CAT5 LEDs, 9 C ommand Mode, 10 D DC support, 11 Devices Supported, 1 I nstallation, 5 Key Equivalents, 15 WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for information regarding repairs and/or returns.
