Installing The Remote Unit (models with S-Video connectors)

1. Position the Remote Unit such that the CAT5 cable, the s-video cable, speaker cable, and the AC
adapter power connector can each reach the Remote Unit without putting strain on the cables.
2. Connect one 4 pin miniDIN end of another SVEXT-xx-MM cable to the Remote Unit.
3. Connect the other 4 pin miniDIN end of the SVEXT-xx-MM cable to the s-video port on the display.
4. If the Remote Unit has audio support, connect the speakers to the 3.5mm jack on the Remote Unit
(see Fig. 10).
-
+
XTENDEX
3.5mm Stereo
Audio Jack

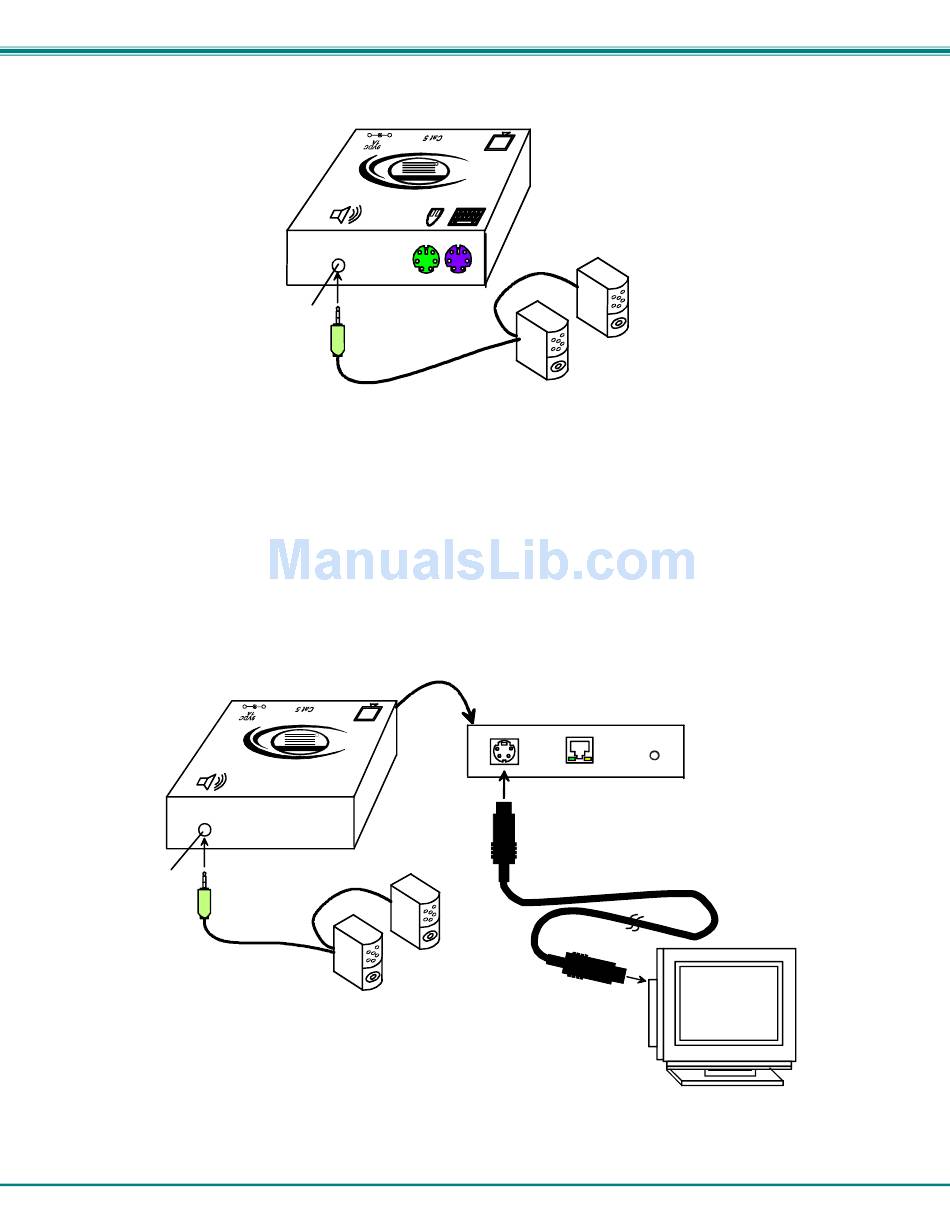

Figure 10- Connect components to an S-Video Remote Unit

ST-C5KVMA-600 Remote Unit
Front View
-
+
NTI
R
Network Technologies Inc
XTENDEX

Figure 9- Connect speakers to the Remote Unit

ST-C5SVA-600 Remote Unit
Front View
NTI
R
Network Technologies Inc
Stereo
Speakers
Stereo
Speakers
Rear View
SVEXT-xx-MM
Remote User's Display
11
S-Video
Display
