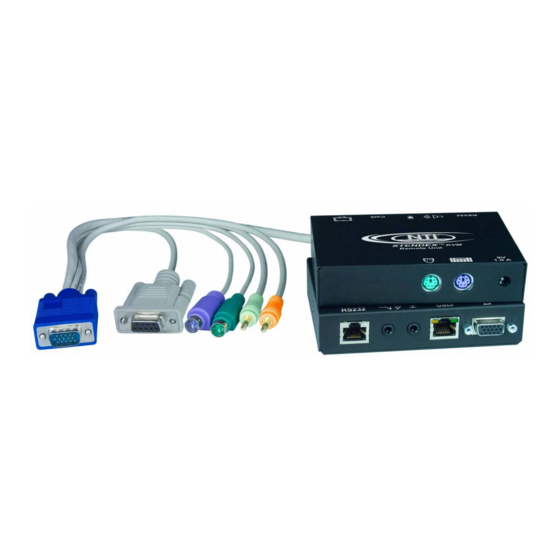

- Page 1 ® XTENDEX Series EXTENDERS Installation and Operation Manual ST-C5KVM2ARS-1000S Keyboard, Mouse, Video, Audio and RS232 Extender ST-C5V2ARS-1000S Video, Audio and RS232 Extender Man060 Rev. 2/12/16...
- Page 2 Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Features and Functions..............................3 Limitations ..................................5 Preparation for Installation .............................. 5 Installation ..................................6 Installing The Local Unit .............................. 6 Connect The CAT5 Cable............................8 Installing The Remote Unit ............................9 Connect the CAT5 cable............................ -
Page 4: Introduction
• Provides crisp and clear resolution up to 1920 x 1200 @ 1000 feet (see page 15 for more details) • Compatible with all NTI switches and splitters, enabling the joining of products to create a system that satisfies all networking needs •... -
Page 5: Materials
VEXT-xx, SA-xx-MF, and DINT-xx Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-RGB-TECH (800-742-8324) in US & Canada or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com and we will be happy to be of assistance. -
Page 6: Features And Functions
NTI XTENDEX Extenders Network Technologies Inc XTENDEX (Front View) (Rear View) ST-C5KVM2ARS-1000S Local Unit 10 11b 11c 11a Network Technologies Inc XTENDEX (Front View) (Rear View) ST-C5V2ARS-1000S Local Unit 11b 11c 11a FEATURES AND FUNCTIONS Green LED- power indicator- illuminates when power has been supplied to the unit Yellow LED-traffic indicator- illuminates when there is communication between the local and remote units. - Page 7 NTI XTENDEX Extenders 11b. Audio Plug- lime 3.5mm stereo audio plug- for connecting to CPU audio line out (models with audio support only) 11c. Audio Plug- pink 3.5mm stereo audio plug- for connecting to CPU microphone jack (models with audio support only) 12.
-
Page 8: Limitations
Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. -
Page 9: Installation
NTI XTENDEX Extenders INSTALLATION Installing The Local Unit 1. Plug the cables of the Local Unit into the back of the CPU. (See Fig. 1.) Connect the blue 15HD cable end to the VGA port on the back of the CPU. -
Page 10: Figure 2- Connect The Local Unit With Audio Support To The Cpu
NTI XTENDEX Extenders (PURPLE-KEYBOARD) Network Technologies Inc XTENDEX (GREEN-MOUSE) AUDIO CONNECTORS (BLUE- VIDEO) ST-C5KVM2A-1000S Local Unit ONE WILL BE MARKED "line (Front View) out","speaker", "headphones" OR WITH THIS SYMBOL (LIME- SPEAKERS) PS/2 CPU (PINK-MICROPHONE) 3.5mm Stereo Plug Figure 2- Connect the Local Unit with audio support to the CPU Make connections for a local user (see Fig. -
Page 11: Connect The Cat5 Cable
NTI XTENDEX Extenders If the Local Unit has RS232 support, connect the local user's RS232 cable from a touch screen monitor to the RJ45 port on the Local Unit using the DB9M-to-RJ45 adapter and patch cable provided. If the Local Unit has audio support, connect the cable from the local speakers to the 3.5mm stereo audio jack with the speaker symbol on the Local Unit. -
Page 12: Installing The Remote Unit
NTI XTENDEX Extenders Installing The Remote Unit 1. Position the Remote Unit such that the CAT5 cable, the monitor cable, device cables, and the AC adapter power connector can each reach the Remote Unit without putting strain on the cables. -
Page 13: Connect The Cat5 Cable
NTI XTENDEX Extenders ST-C5KVM2A-1000S Remote Unit Rear View Microphone Stereo Speakers Figure 7- Connect speakers and microphone to the Remote Unit Note: When two microphones are connected (one at local and one at remote), only one can be active at a time. See mode charts on pages 12 and 13 for active microphone selection. -
Page 14: Plug-In And Boot Up
NTI XTENDEX Extenders Plug-in and Boot Up Plug the power cord from the monitor into the power outlet. Connect each AC adapter power connector to the 9VDC ports on the Remote and Local Units Plug each AC adapter into a power outlet. -
Page 15: Video Adjustments
NTI XTENDEX Extenders VIDEO ADJUSTMENTS Automatic Video Quality Adjustment Video quality is broken down into “general video quality” for brightness and sharpness of the images, and “color skew” for how the colors align with each other on the monitor. Both general video quality and color skew adjustments are done automatically. The automatic video adjustments are calibrated for unshielded twisted pair cable. -
Page 16: Fine Video Quality Adjustment For Kvm Models
NTI XTENDEX Extenders Mode Button (Continued) Action LED Indication Press + or – to effect: Sixth Press Red Flashing- Active microphone rapid or slow Flash rapid= remote Flash slow= local (press + or – to toggle which is active) Seventh Press Dark (LED OFF)- repeat cycle When adjusting color skew, a momentary press of either the “+”... -
Page 17: Test Patterns For Color Skew Adjustment
NTI XTENDEX Extenders Test Patterns for Color Skew Adjustment To verify the need for and effect of color skew adjustment using a test pattern specifically designed for your display setting, browse the CD this manual was found on and click on the “test-pattern-nXm.pdf” file that matches your current video resolution. -
Page 18: Technical Specifications
NTI XTENDEX Extenders TECHNICAL SPECIFICATIONS Models with VGA Video Video Compatibility VGA,SVGA, XGA, SXGA,UXGA Video Coupling Video Connectors HD15 male to CPU HD15 female to monitor Input / Output Impedance 75 Ohms Input Horizontal Frequency Range 15kHz to 130kHz Input Vertical Frequency Range... -
Page 19: Interconnection Cable Wiring Method
NTI XTENDEX Extenders INTERCONNECTION CABLE WIRING METHOD The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below. -
Page 20: Index
NTI XTENDEX Extenders Problem Cause Solution The video cable was not attached to With the cables all properly connected, reboot the CPU. The picture on the monitor the CPU when it was booted. is black and white, rather than color CAT5 cable is too close to a strong Reroute CAT5 cable if possible. -
Page 21: Warranty Information
A return authorization number is required for all repairs/returns. Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
