NTI EXTENDEX Extenders
2. Make connections for a Local User (see Fig. 6)
a) Connect one end of an SVEXT-xx-MM cable to the s-video port on the display.
b) Connect the other end of the same SVEXT-xx-MM cable to the s-video port on the Local Unit.
c) If the Local Unit has audio support, connect the cable from the local speakers into the 3.5mm
jack on the local unit.
Front View
NTI
Network Technologies Inc
XTENDEX

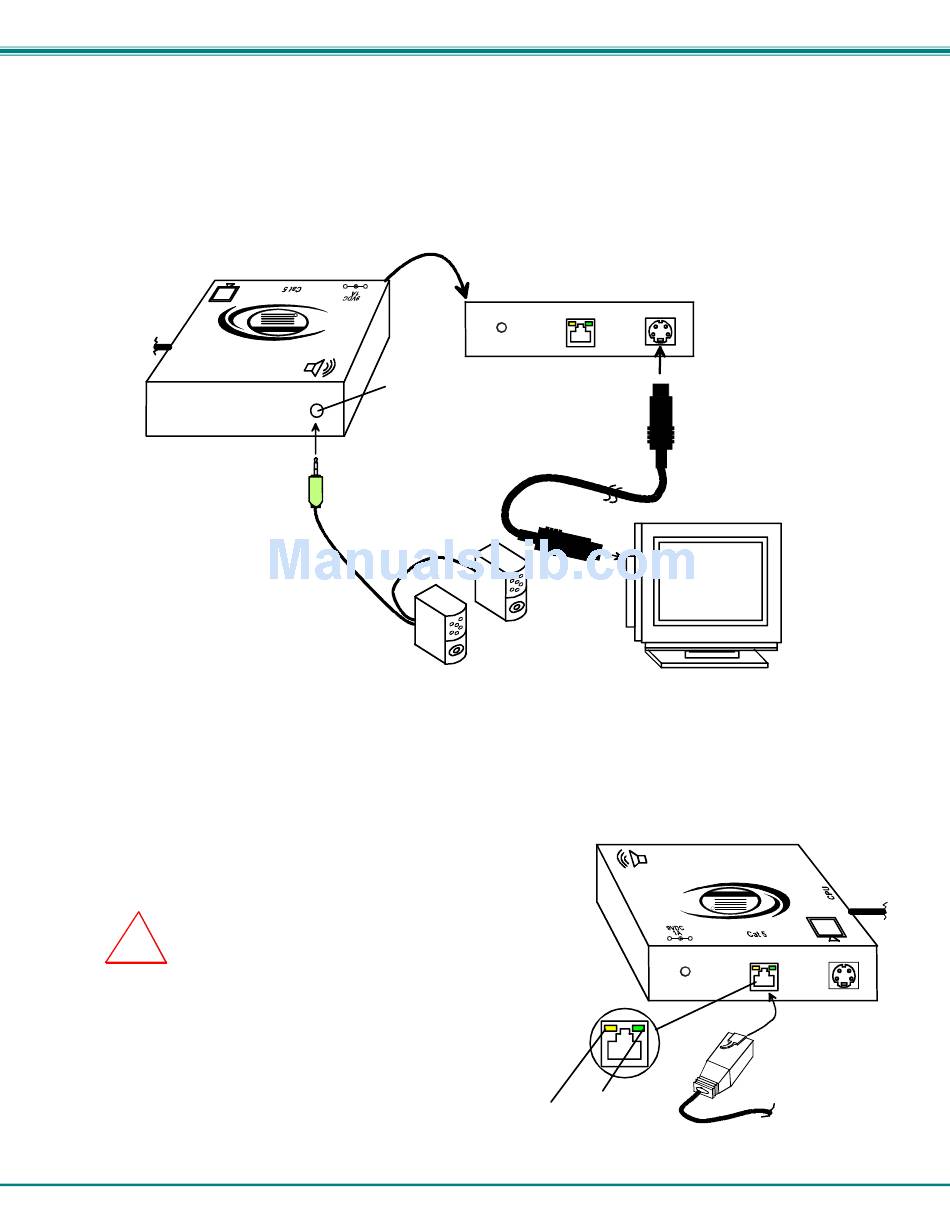

Figure 6- Connect S-Video display and speakers to Local Unit with s-video support

Connect The CAT5 Cable

Connect the CAT5 cable to the "Cat 5" port on the Local Unit. (See Fig. 7.) When properly inserted
the cable end should snap into place.
Note: If an RJ45 wall outlet is being used, connect the other
end of the extension cable to the RJ45 wall outlet.
!
WARNING: Never connect the XTENDEX to an ethernet card,
ethernet router, hub or switch or other ethernet RJ45 connector of an
ethernet device. Damage to devices connected to the ethernet may result.
ST-CSVA-600 Local Unit
-
+
R
3.5mm Stereo
Audio Jack
Rear View
SVEXT-xx-MM
Stereo
Speakers
Local User's Display
Rear View of Local Unit
Green Traffic LED
Yellow Power LED

Figure 7- Connect CAT5 cable to Local Unit

9
S-Video
Display
XTENDEX
Inc Technologies Network
NTI
R
-
+
CAT5 Cable to
Remote Unit
