Open the Roller Exchange Kit and take out the new paper feed roller module.
5

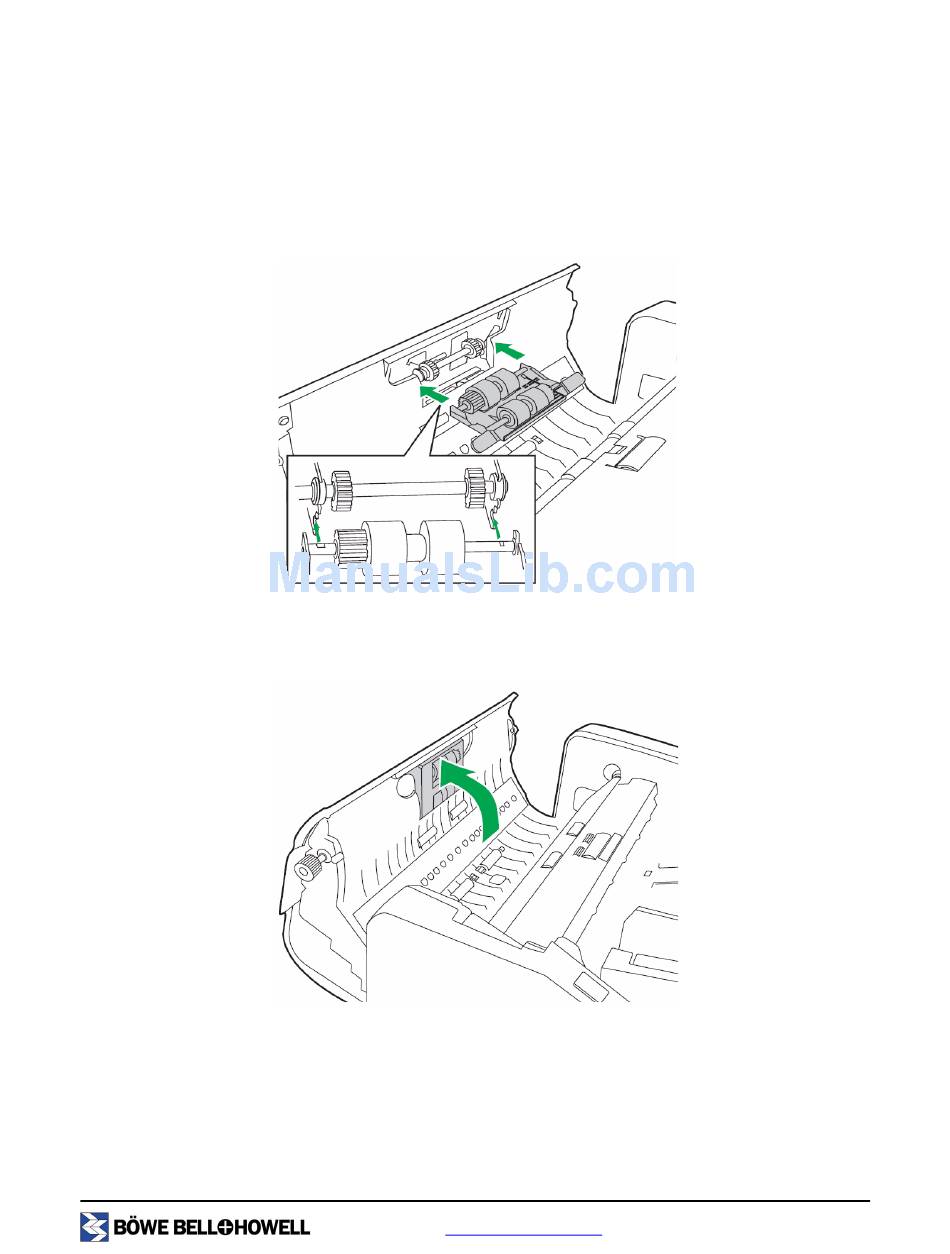

Install the new paper feed roller module as shown in the following steps and diagrams.
1. Carefully insert the shaft on the roller module into the brackets in the ADF door assembly.
2. Carefully match the gears on the roller module with the gears in the ADF door assembly.
3. Push up the roller module in the direction of the arrow shown in the diagram, so that it is
locked in place by the magnets located in the ADF door assembly.
6
Close the ADF door.
• When you close the ADF door, close it securely until the door is locked. Do not slam the ADF
door.
