Adjusting the Printing Position

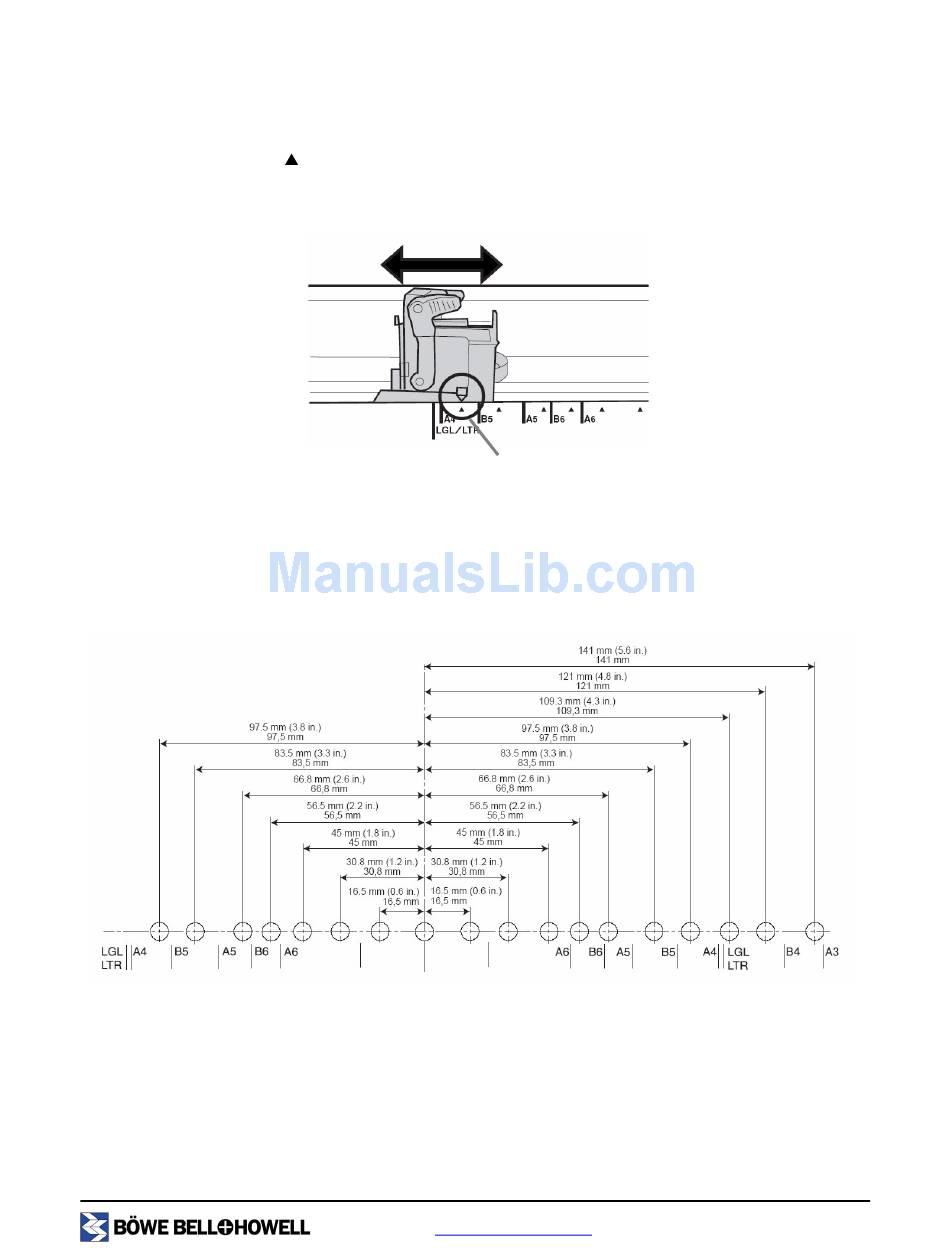

To add an imprint to the page that will appear on the scanned image, adjust the position of the printer
carriage according to the size of the sheets that you want to scan. Move the printer carriage to align the tab
on carriage with one of the marks that appears in the scale on the side of the imprinter unit. For the
imprint to appear on the right side of the page, move the carriage to the right side of the scale. For the
imprint to appear on the left side of the page, move the carriage to the left side of the scale.
Align tab with mark
The tab on the printer carriage must be aligned with one of the marks on the scale. If the carriage is
not properly aligned, the unit will not print.
Printing Position Chart
This chart shows the position of the imprint according to the sheet size you select when you adjust the
printer position.
