Be sure to maintain the recommended area of open space around the top and sides of the scanner as
shown in the following diagrams. This will allow you to use all of the features of the scanner and will assure
that there is proper ventilation for the unit.

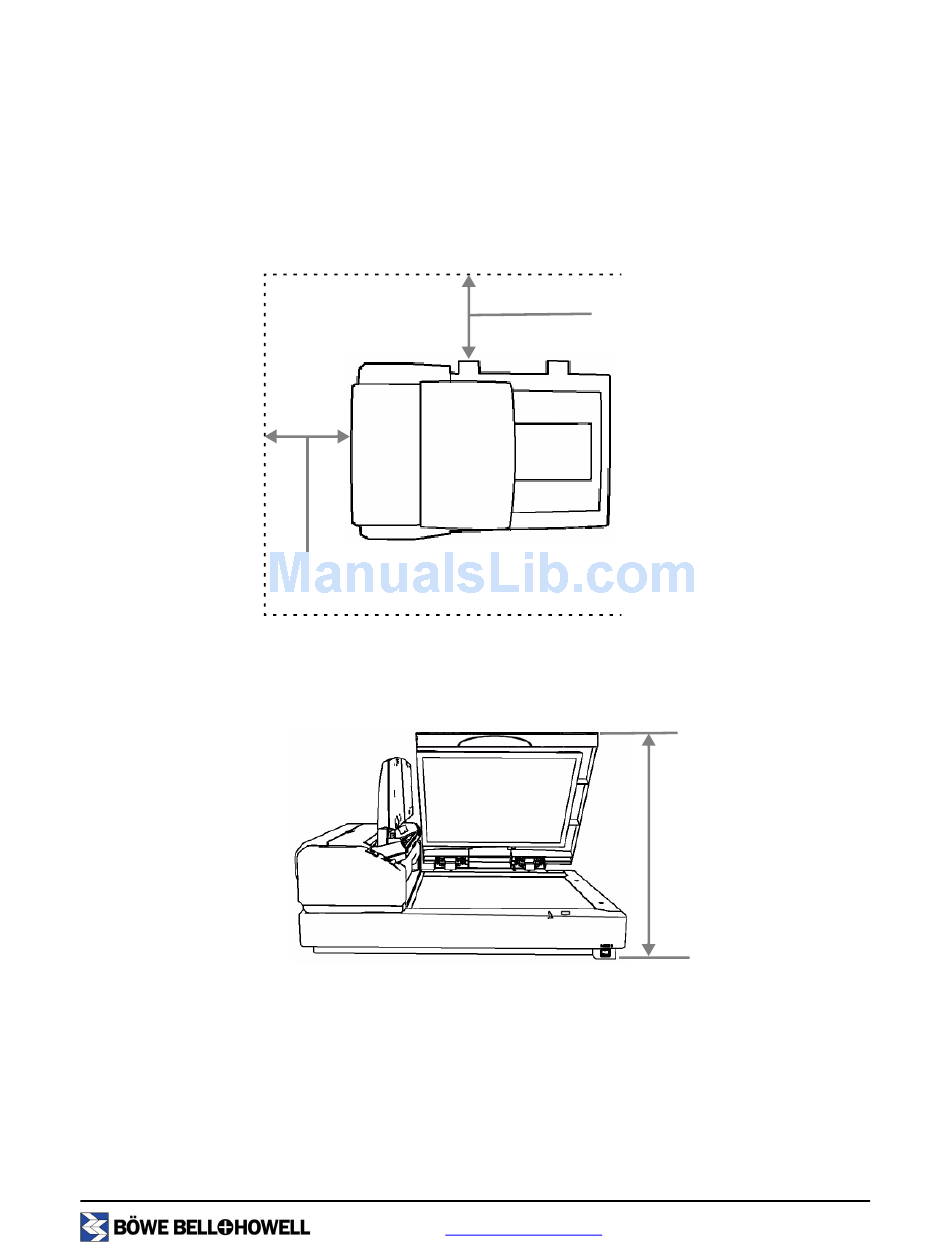

Top View

Front View

Minimum Space Requirements

Clearance necessary to open the
imprinter door: 13.8 in. (350 mm)
www.bbhscanners.com
Clearance necessary to remove or
install the computer interface
board: 7.9 in. (200 mm)
Clearance necessary to
open the document cover:
23.6 in. (600mm)
